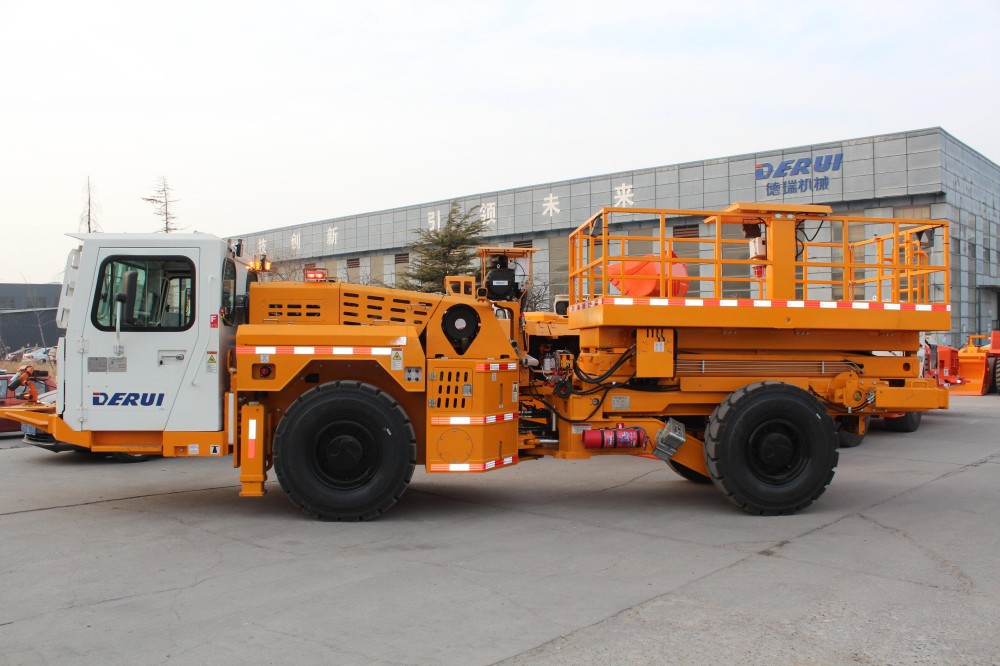

DRFW-10 Multi-functional Carrier with interchangeable cassettes system(Four Configurations)
description1
PRODUCT SPECIFICATIONS
|
Rated Payload Capacity (kg) |
10,000 |
|
Operating Weight, Empty (kg) |
10,500 |
|
Overall Dimensions (L × W × H) (mm) |
7930×2000×2350（Chassis Only） |
|
Superstructure |

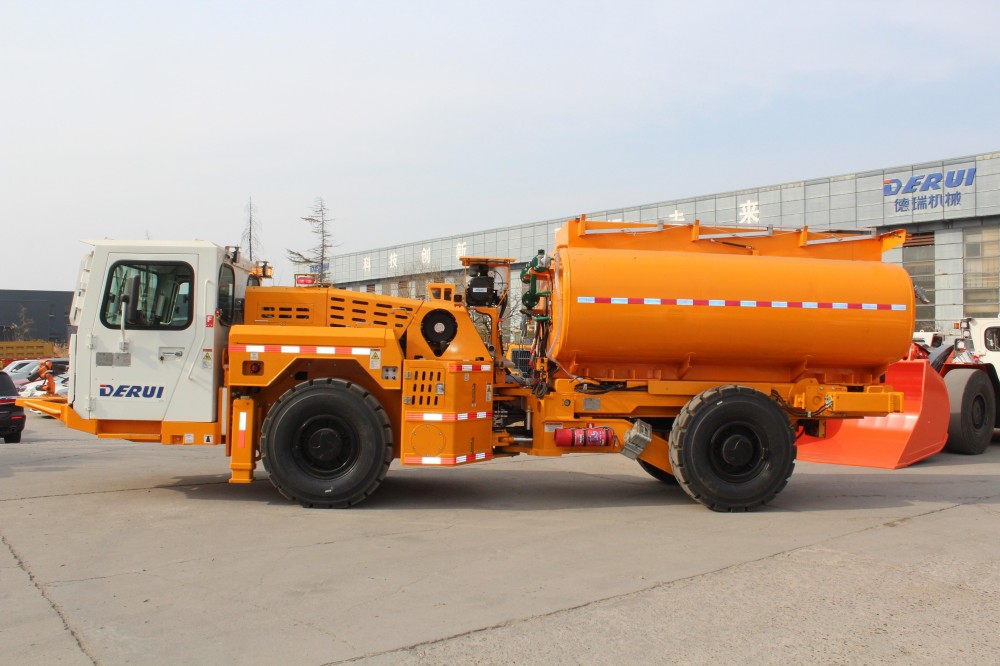

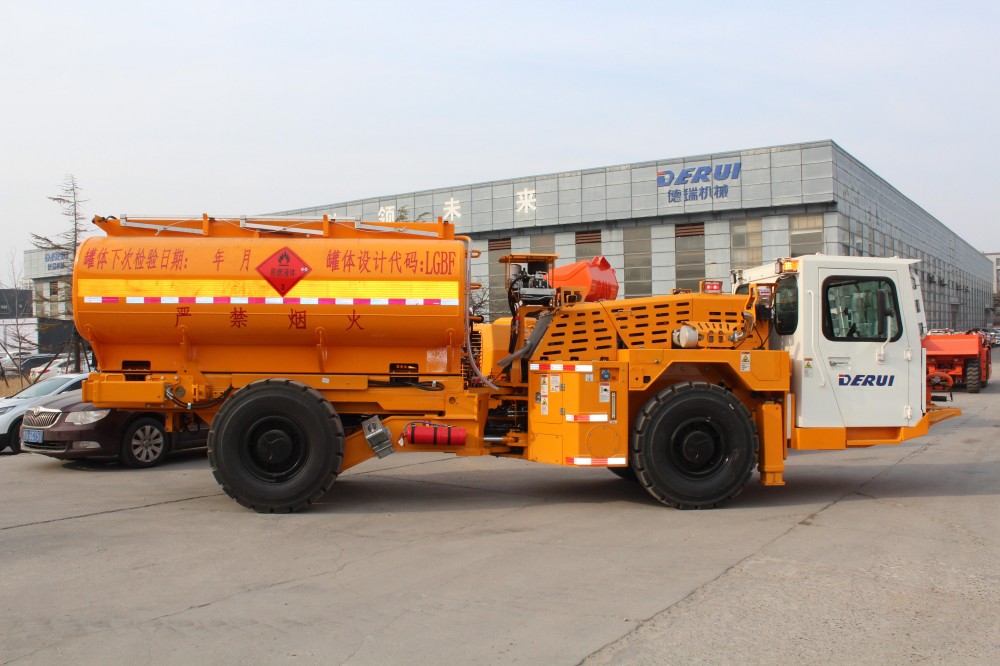

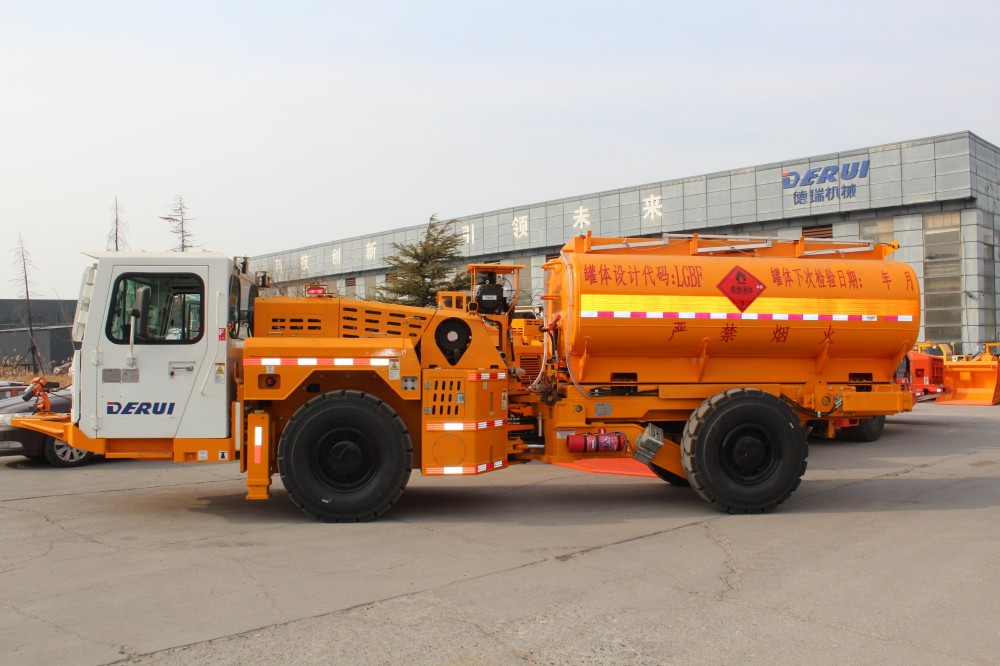

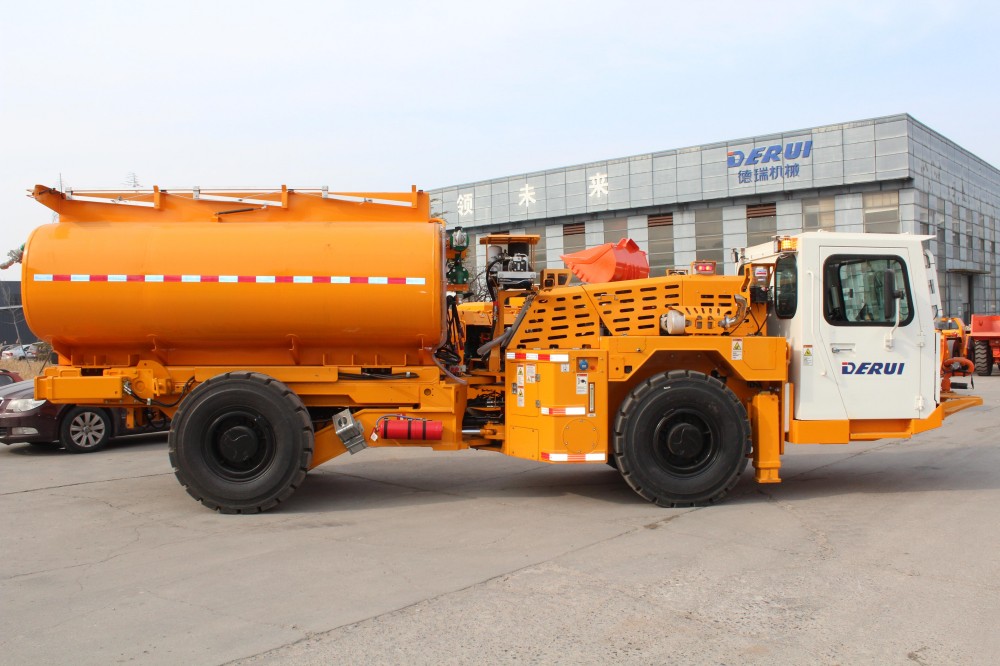

1.7000‑kg Explosives Transport Module 2.Removable Cargo Container 3.4000‑L Water Transport Container 4.Technical Specifications 5.Multi‑product Fuel Transport Container 6.Quick‑Change Container (16‑Person) |
|
Engine Power |
123kw |
Base Model Configuration
1.Equipped with an intelligent monitoring and protection system, including oil level protection, engine protection, and a filter clogging alarm system.
2.The entire vehicle frame is constructed from high performance structural steel Q355B.
3.The exhaust system is fitted with a dry type three way catalytic converter for noise reduction and emission control.
4.The cab features a temperature control and ventilation system, a wide front windshield for all around visibility, sliding glass windows, large rearview mirrors, and an ergonomically arranged control console.
Tailored Product Configurations
- Automatic Fire Suppression System
- Automatic Centralized Lubrication System
