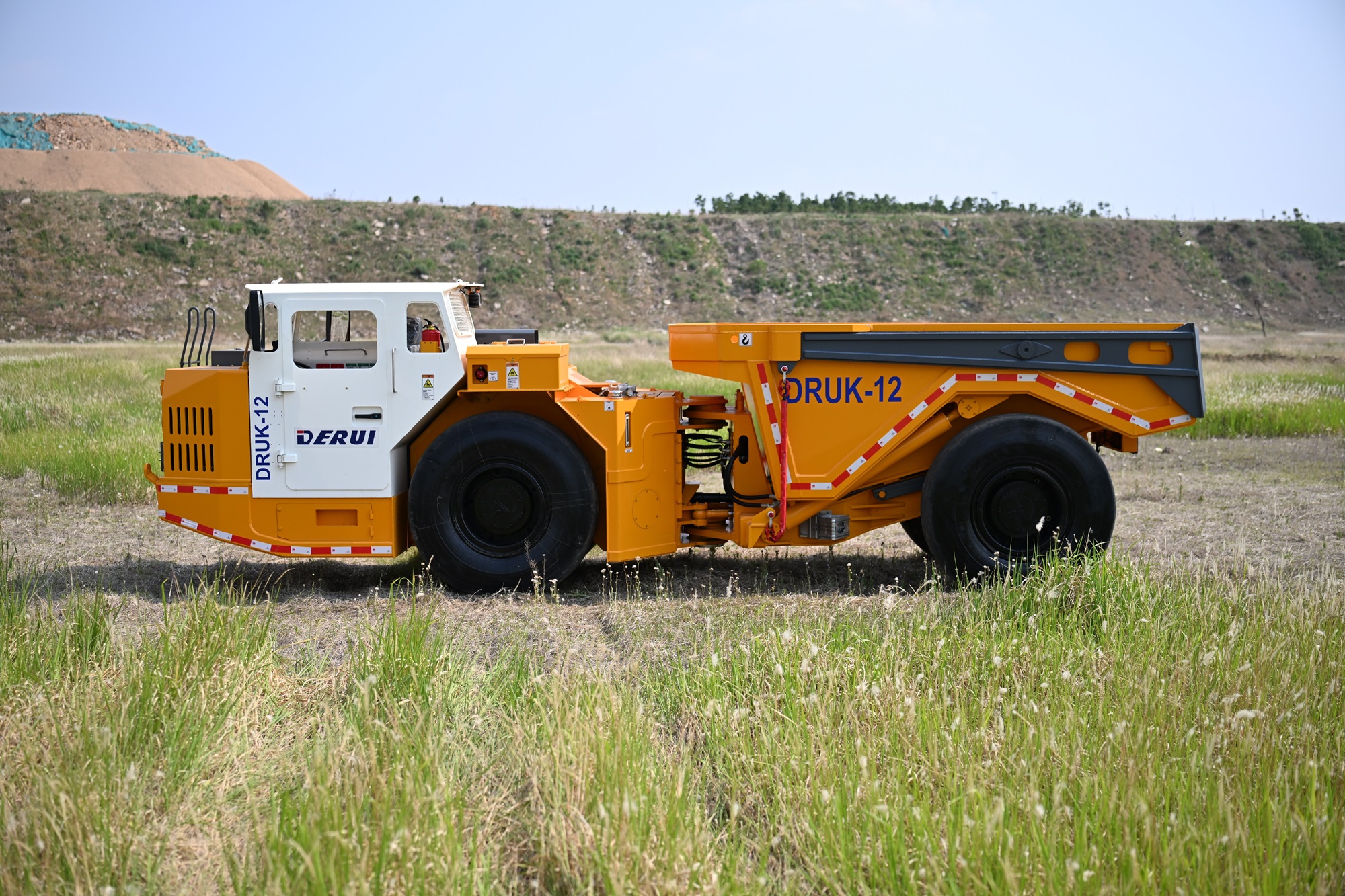

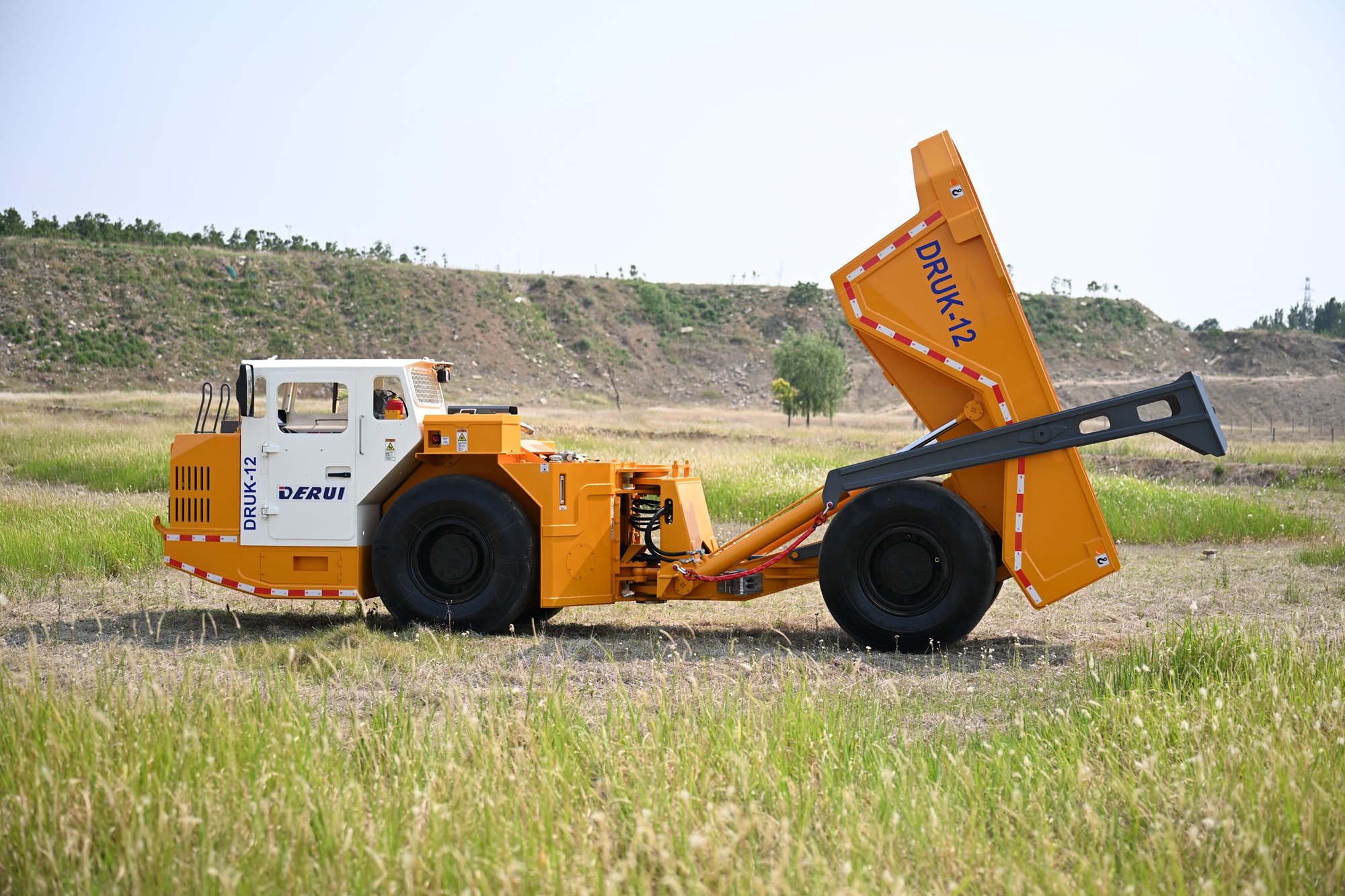

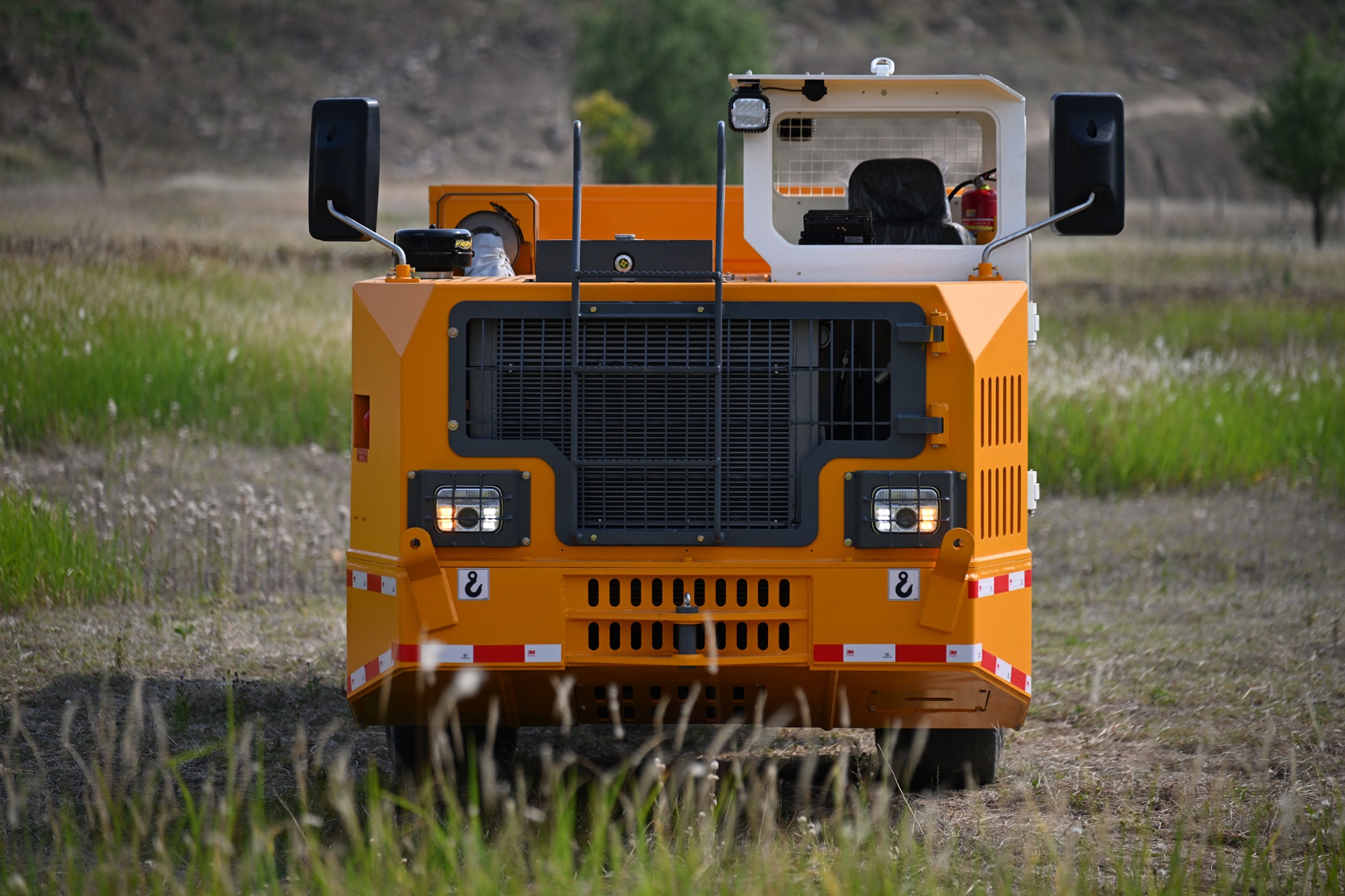

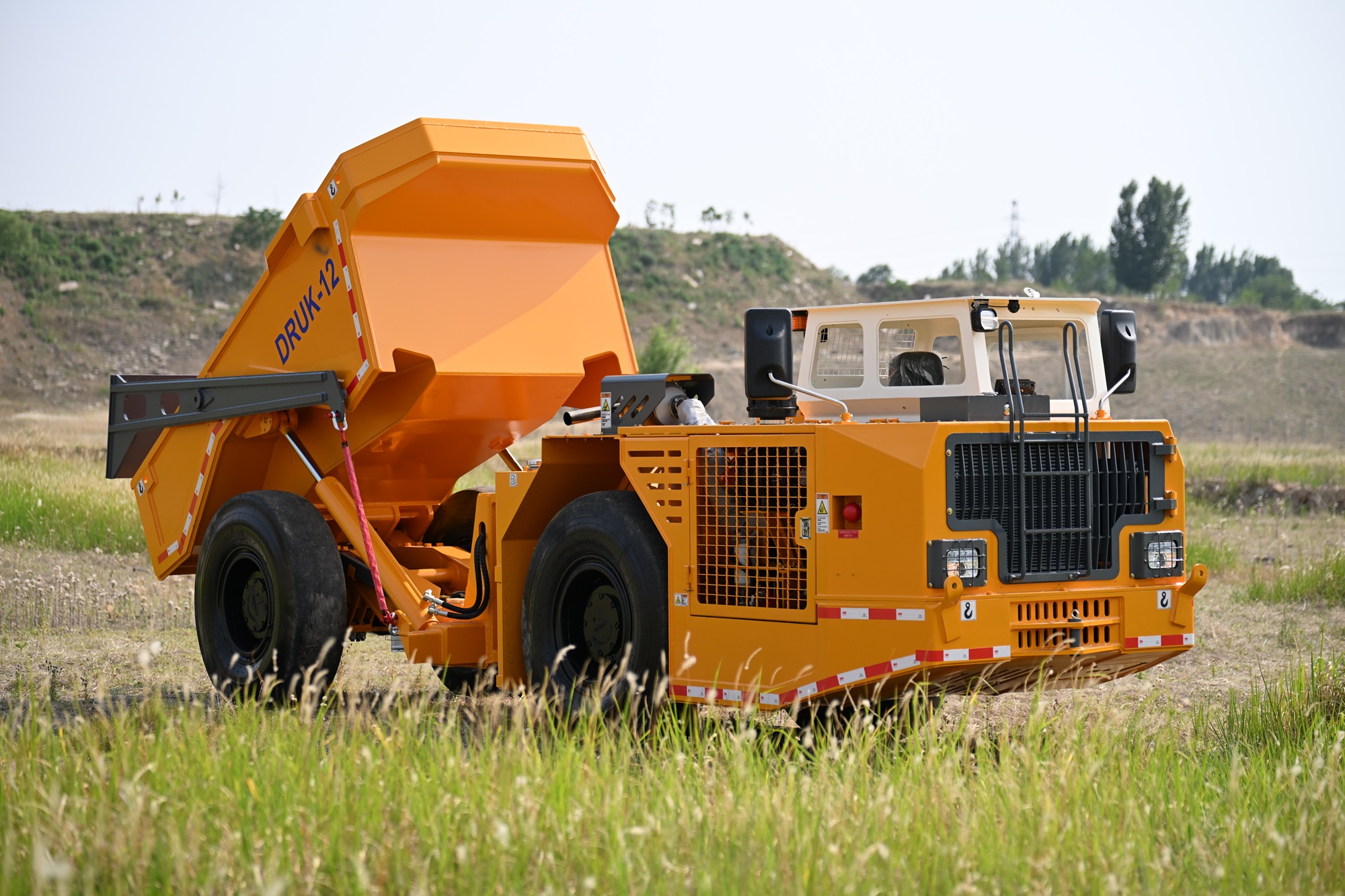

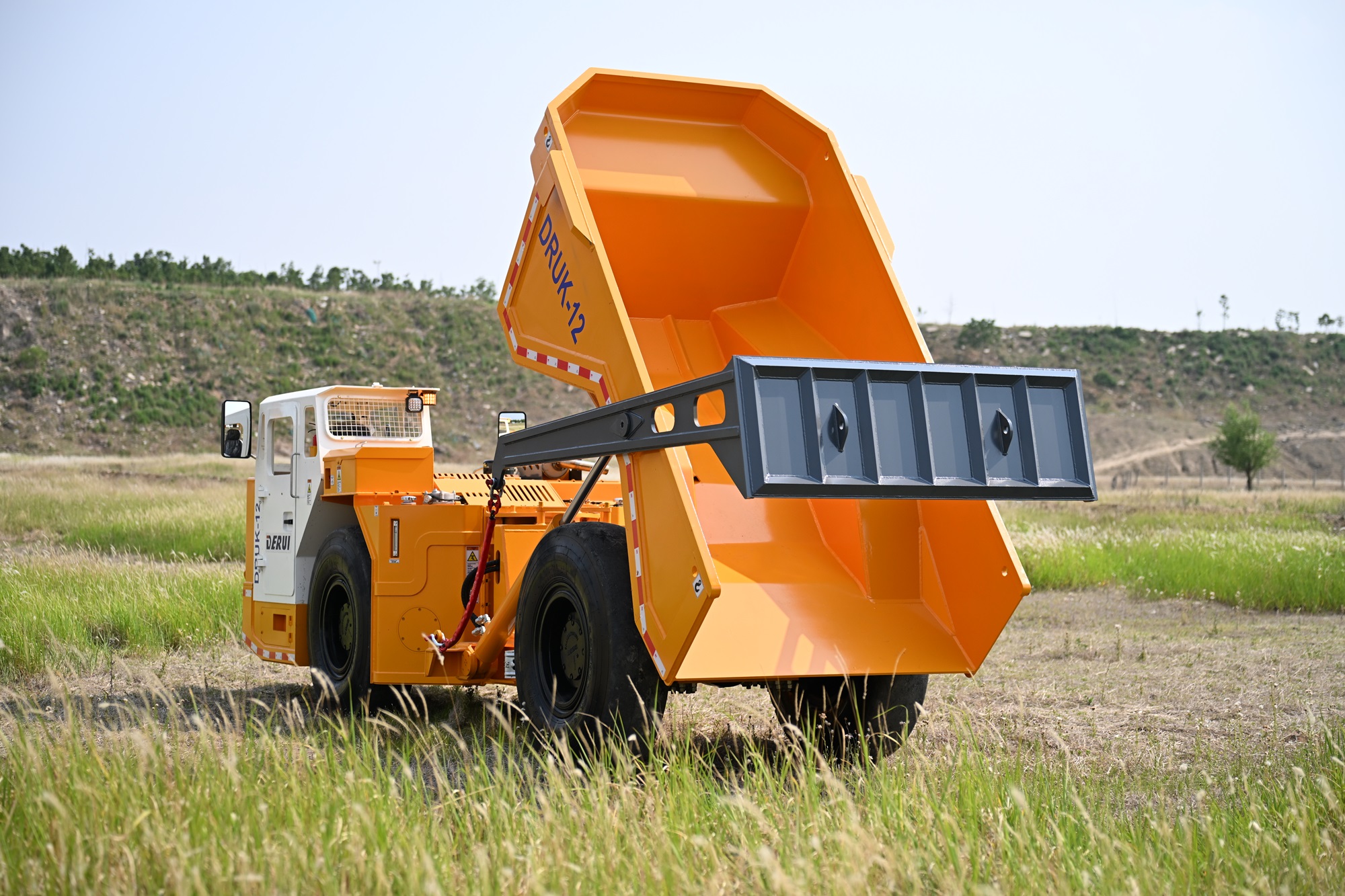

DRUK-12 Underground Dump Truck
description1
PRODUCT SPECIFICATIONS
|
Tramming Capacity(Rated load Capacity) |
12 Ton |
|
Standard Bucket Volume |
6.0m³ |
|
Approximate Weight |
13,700 KG |
|
Dimension(LxWxH) |
7533x2140x2281mm |
|
Engine Power |
115 KW |
Base Model Configuration
The power system of this machine is equipped with an exhaust silencer and purifier, which delivers significant purification effects, effectively reduces air pollution, and improves the underground working environment.
The braking system adopts spring-applied, hydraulically-released brakes, enhancing safety margins and ensuring reliable performance in harsh, high-moisture, and muddy tunnel conditions.
The entire vehicle employs CAN bus communication and a modular design with rigorous logic, enabling real-time display of all operational parameters, as well as alarm prompts, fault self-diagnosis, and automatic protection functions.
Tailored Product Configurations
Optional Features:
- Fully Enclosed Cab with Heating and Air Conditioning
- Automatic Centralized Lubrication System
- Automatic Fire Suppression System
- Hopper Baffle
Technical Parameters
-
DRUK-12 Main Technical Parameters of the Complete Machine
-
DRUK-12(B) Engine
-
DRUK-12(C) Engine
-
DRUK-12(E) Engine
Brand/Model
Cummins QSB4.5
Rated Power
119kw
Cooling Method
Water Cooling
Emission Standed
China III
