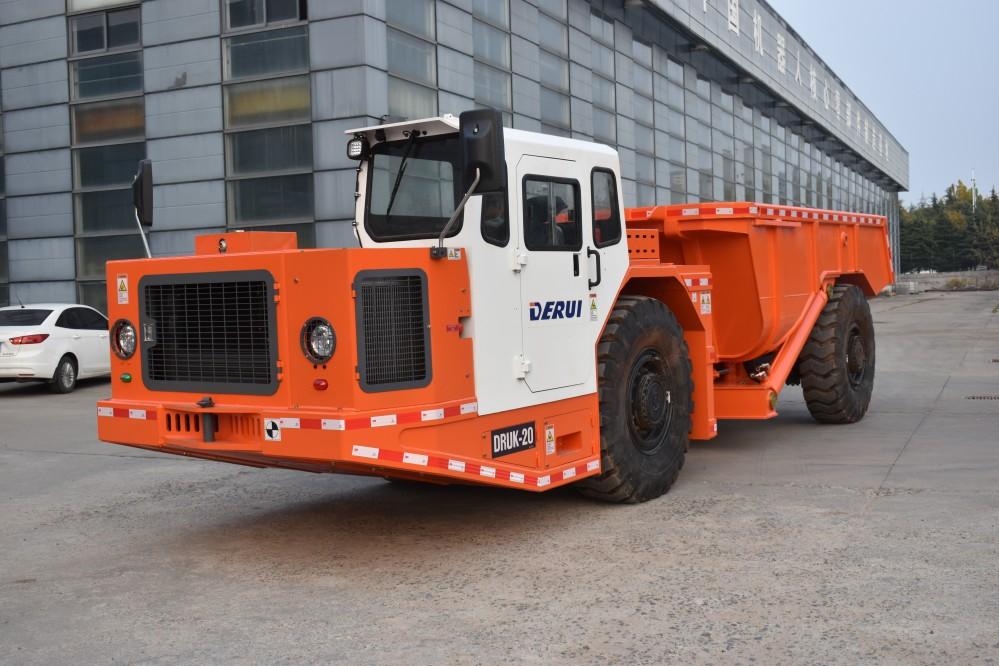

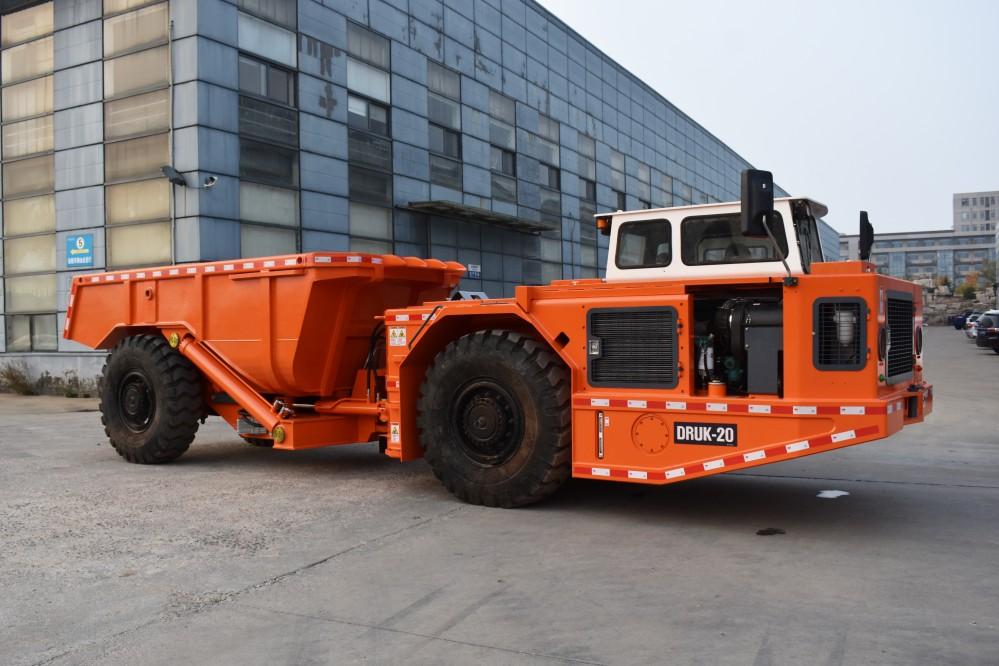

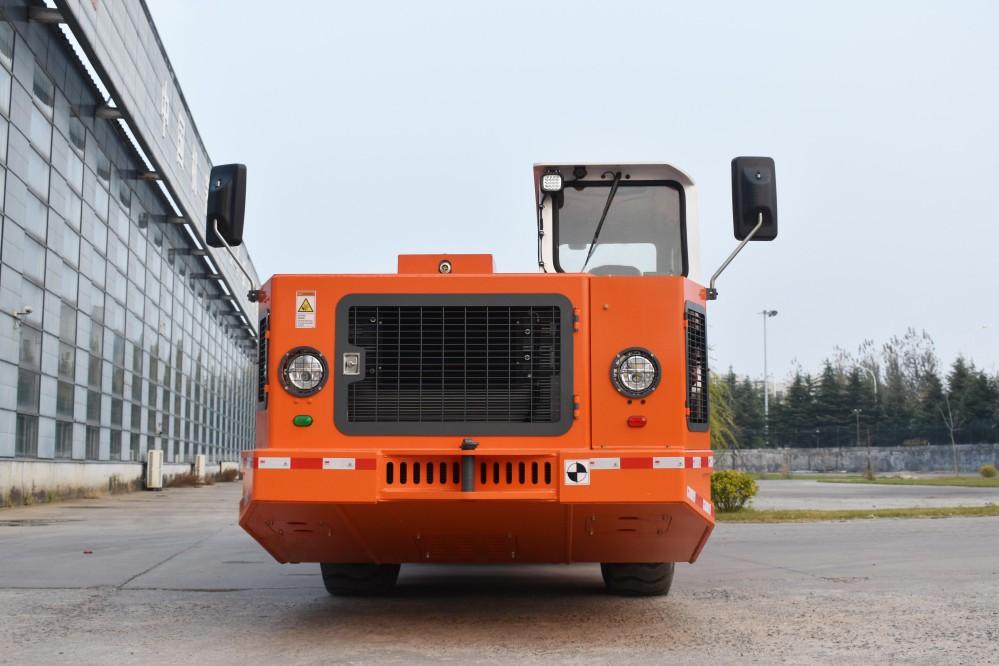

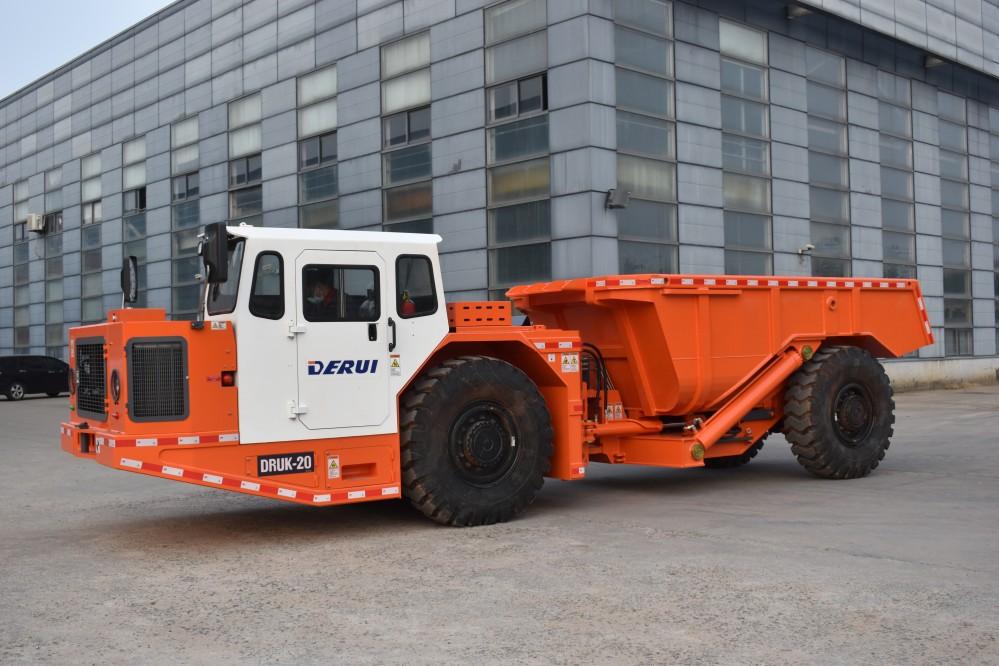

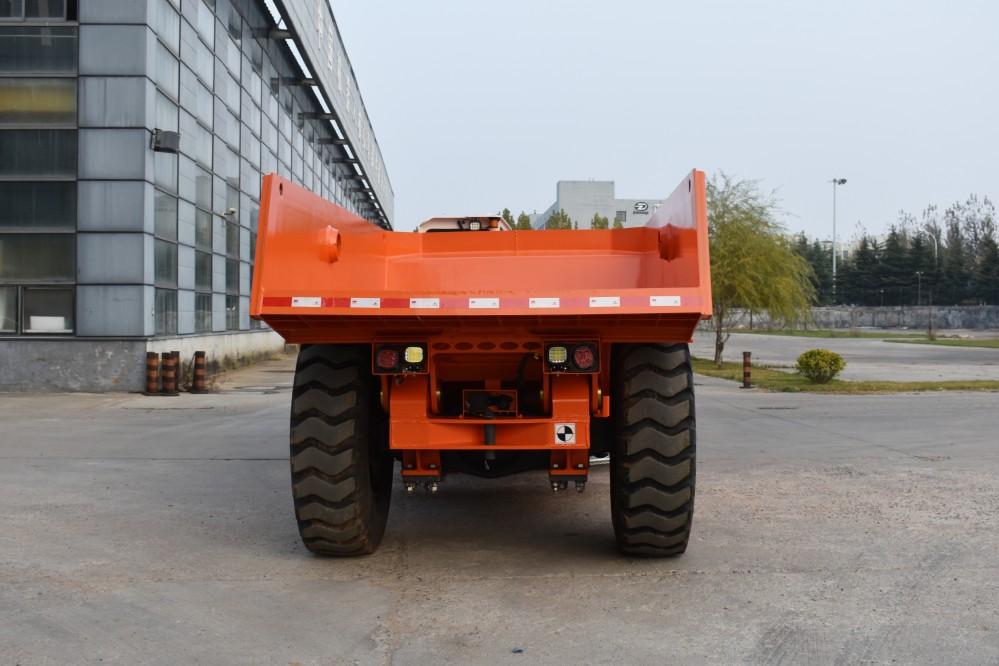

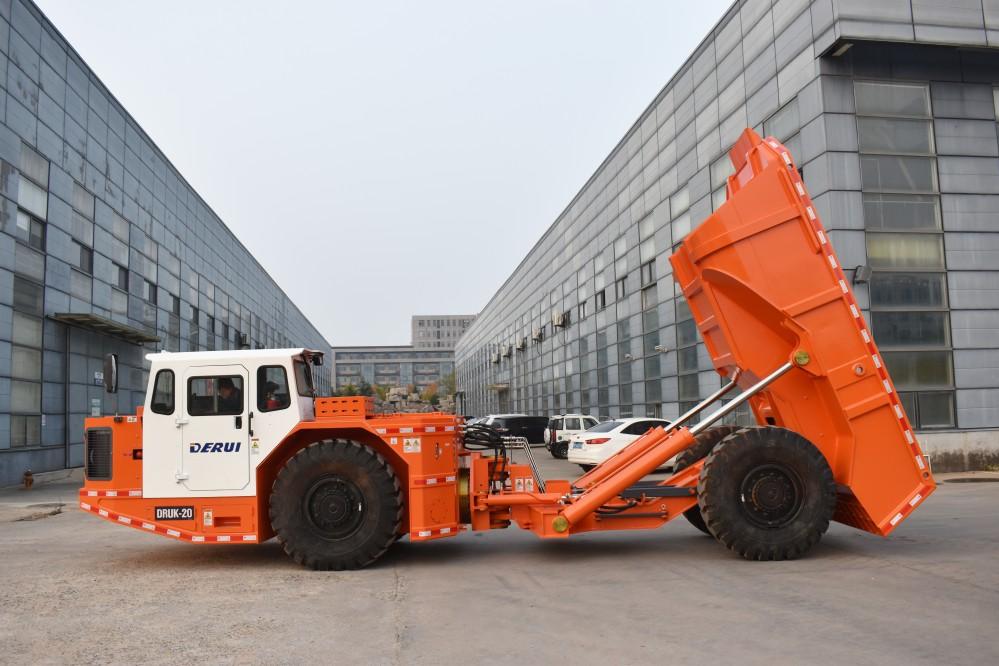

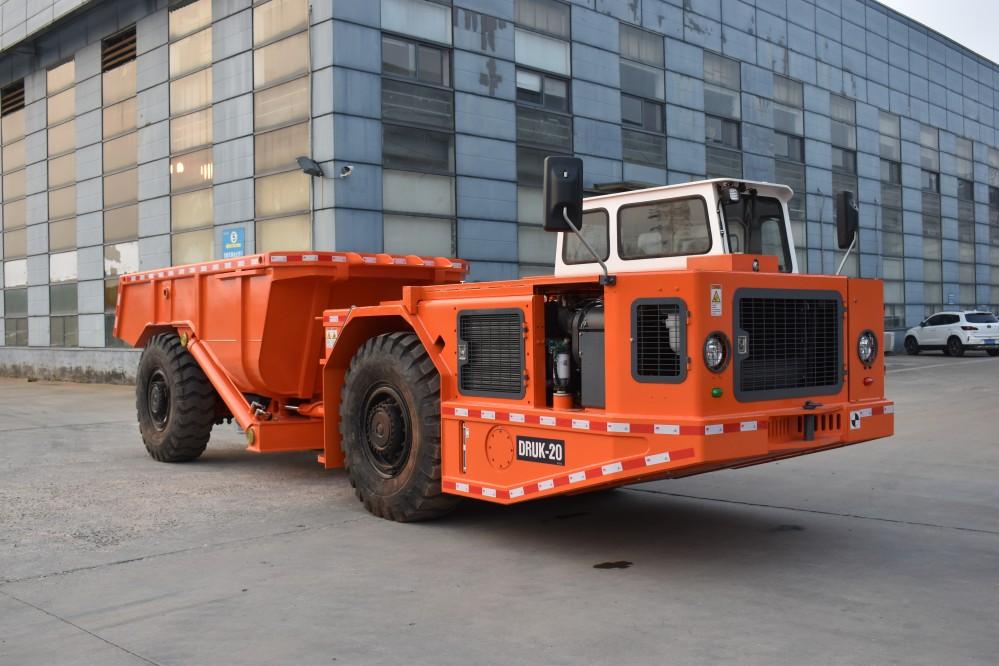

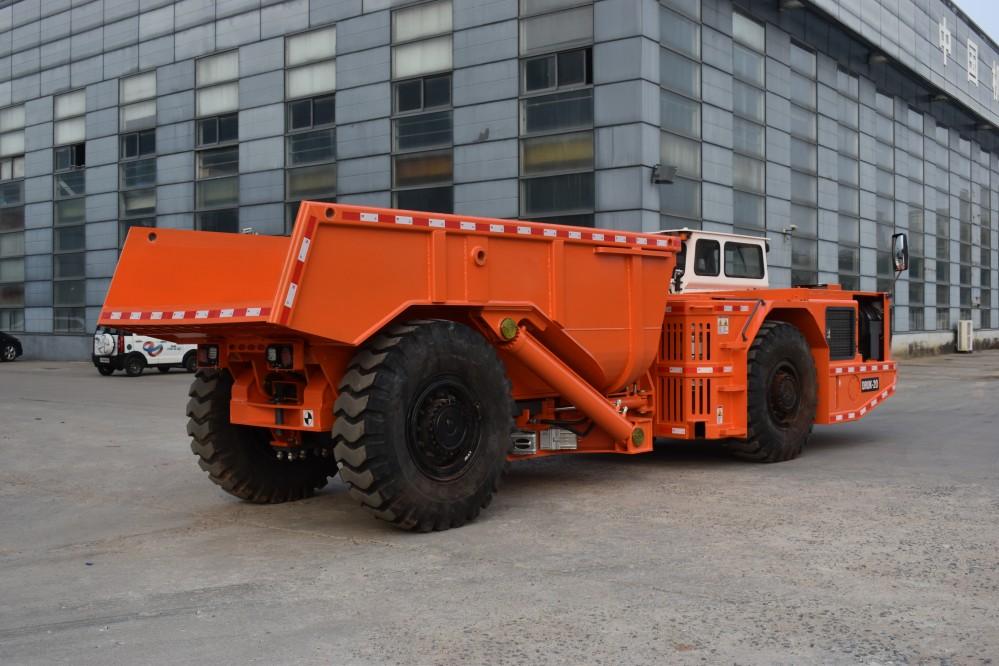

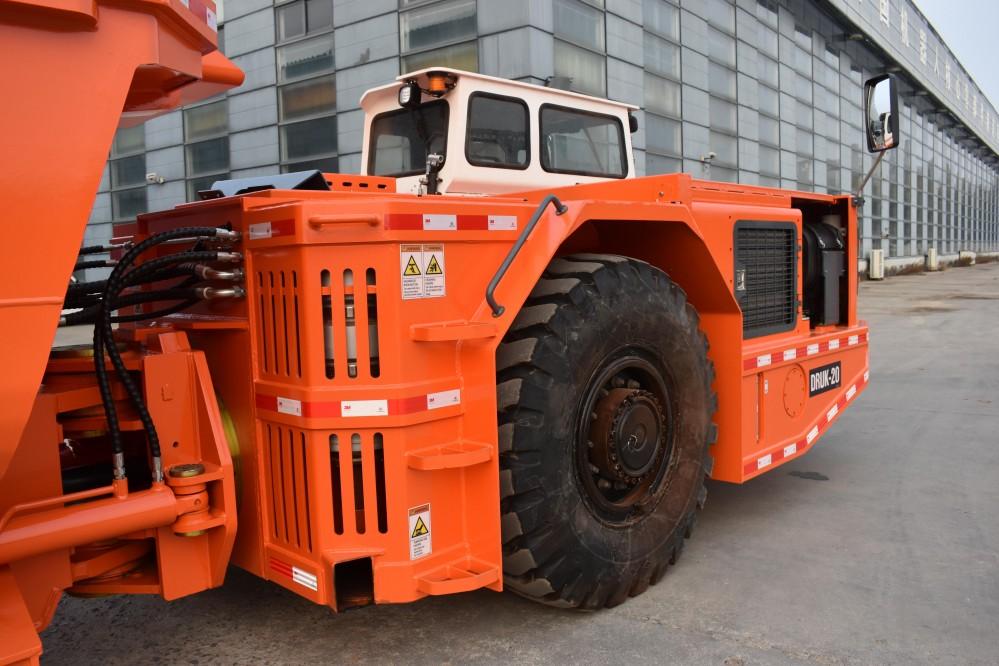

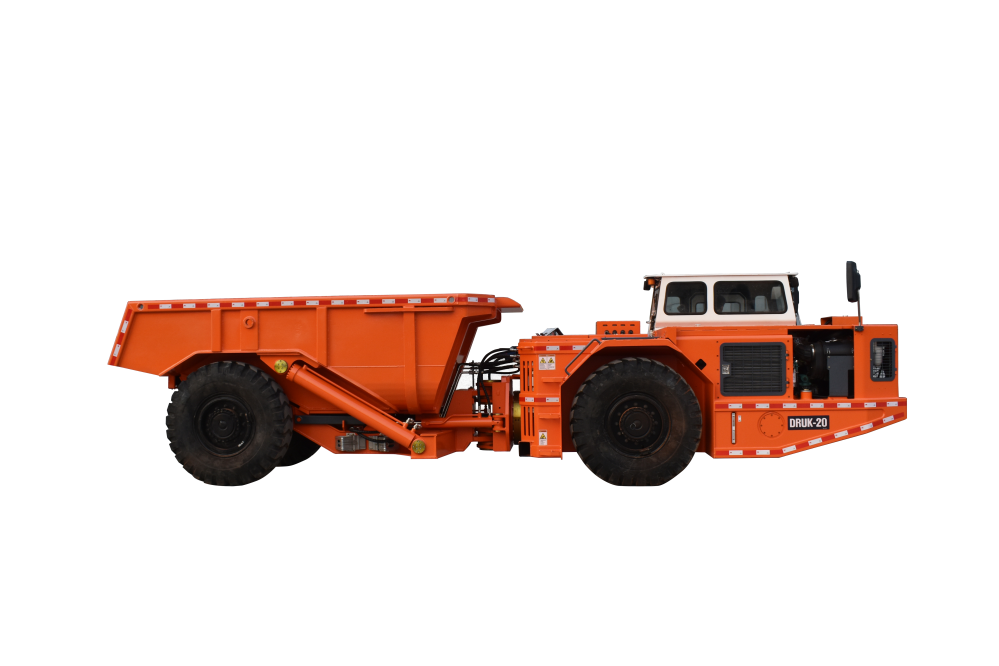

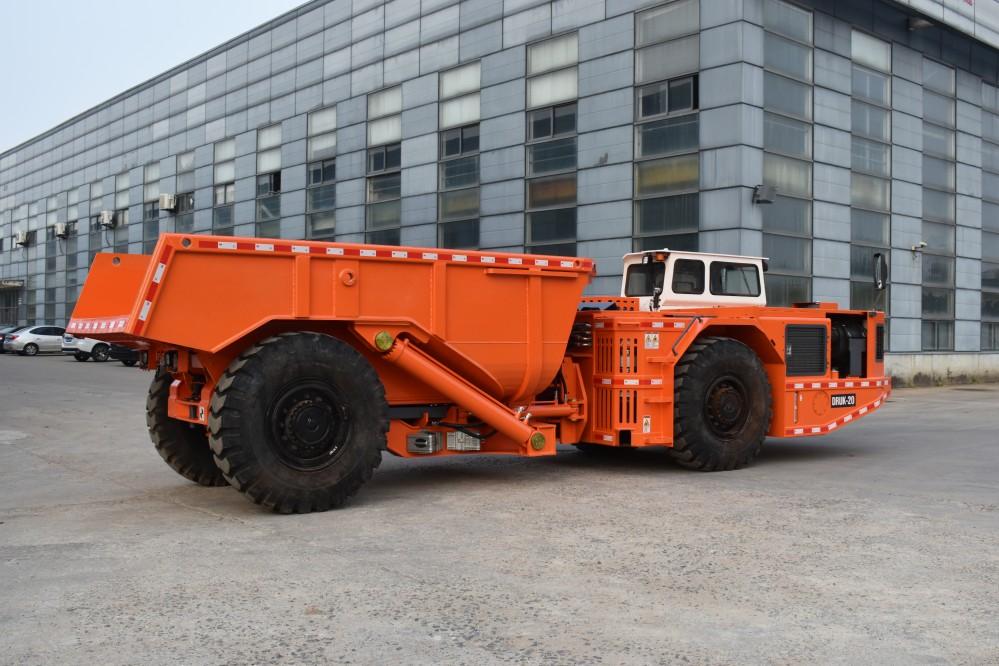

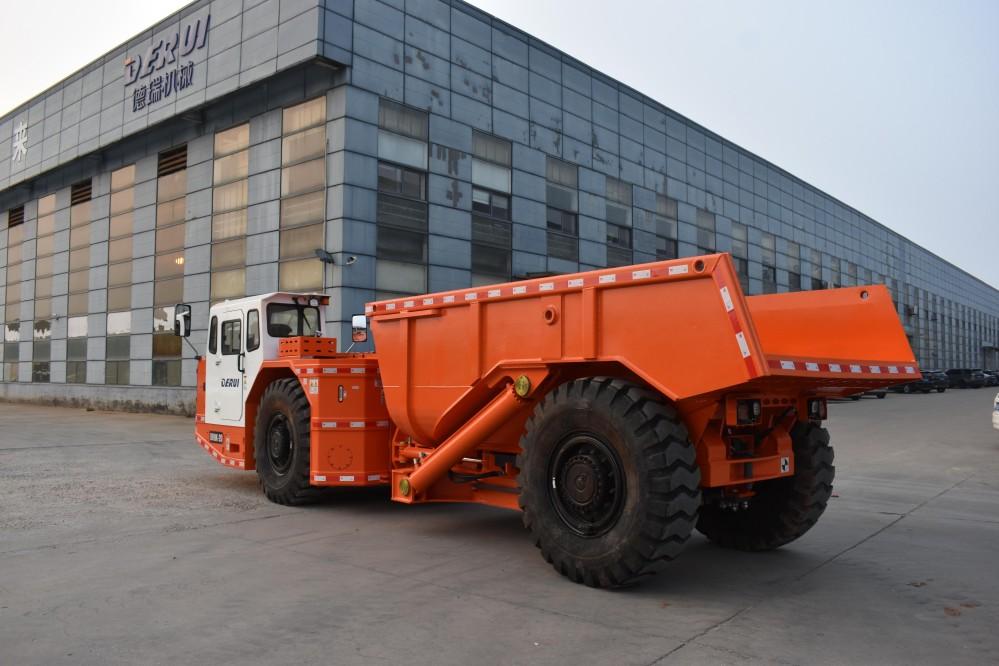

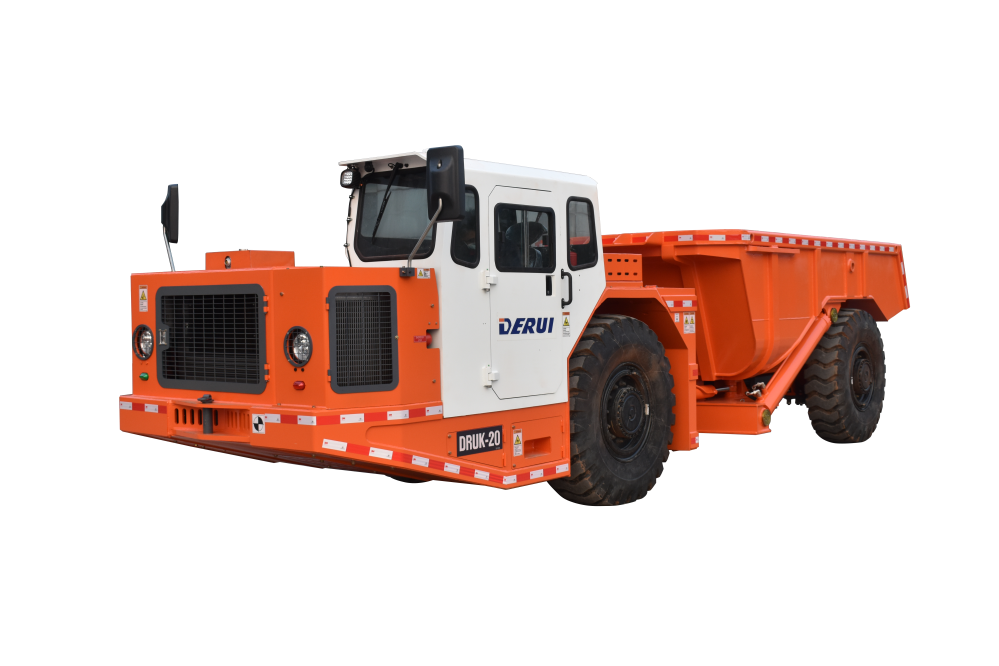

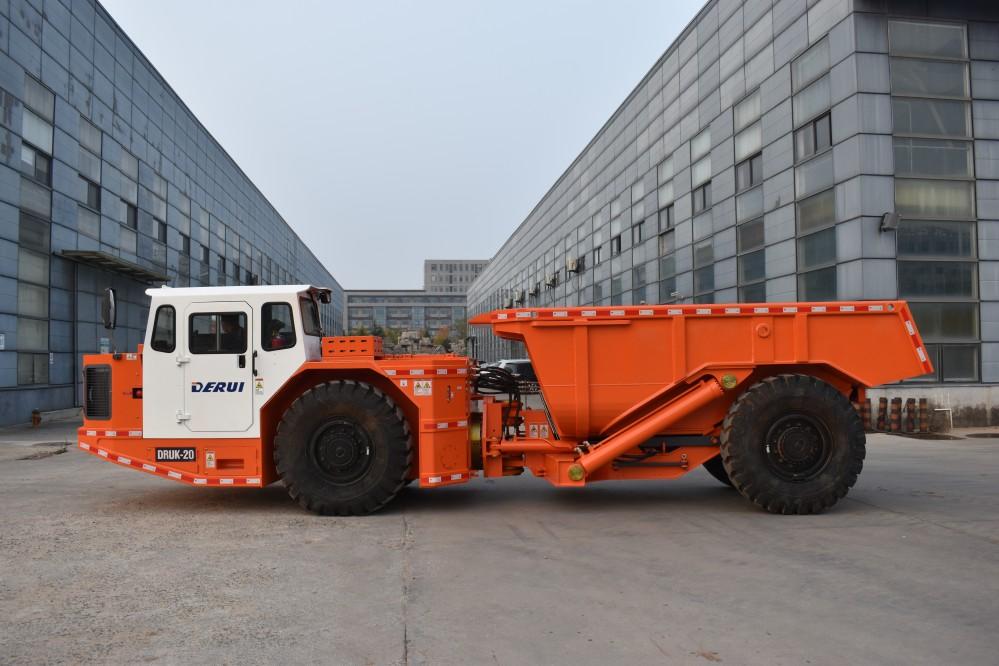

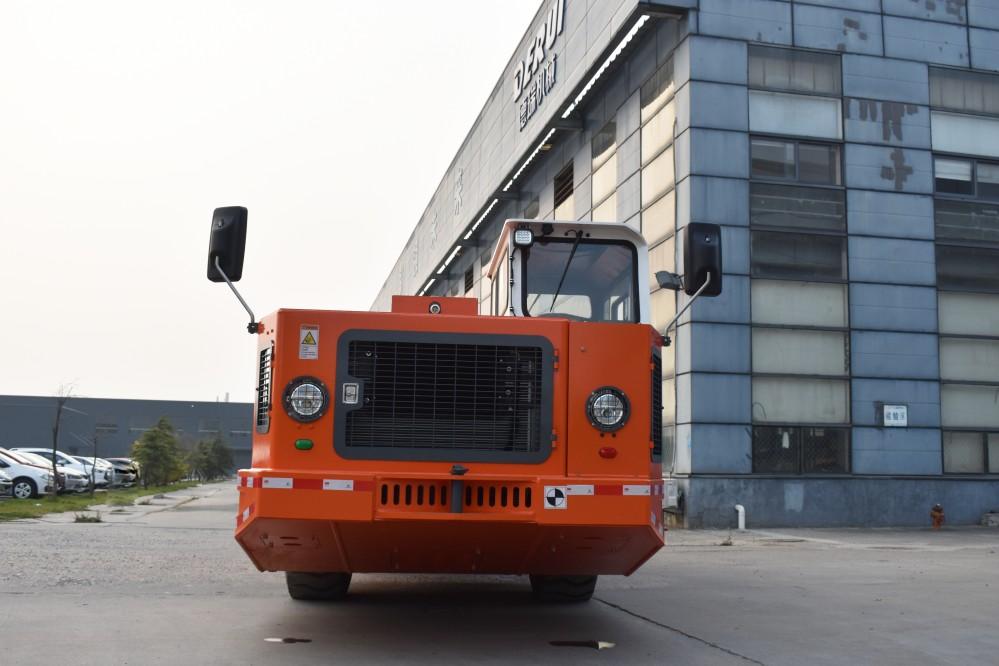

DRUK-20(LWB) Underground Dump Truck
description1
PRODUCT SPECIFICATIONS
|
Tramming Capacity(Rated load Capacity) |
20 Ton |
|
Standard Bucket Volume |
10m³ |
|
Approximate Weight |
22,600 KG |
|
Dimension(LxWxH) |
9008×2280×2445 mm |
|
Engine Power |
235 KW |
Base Model Configuration

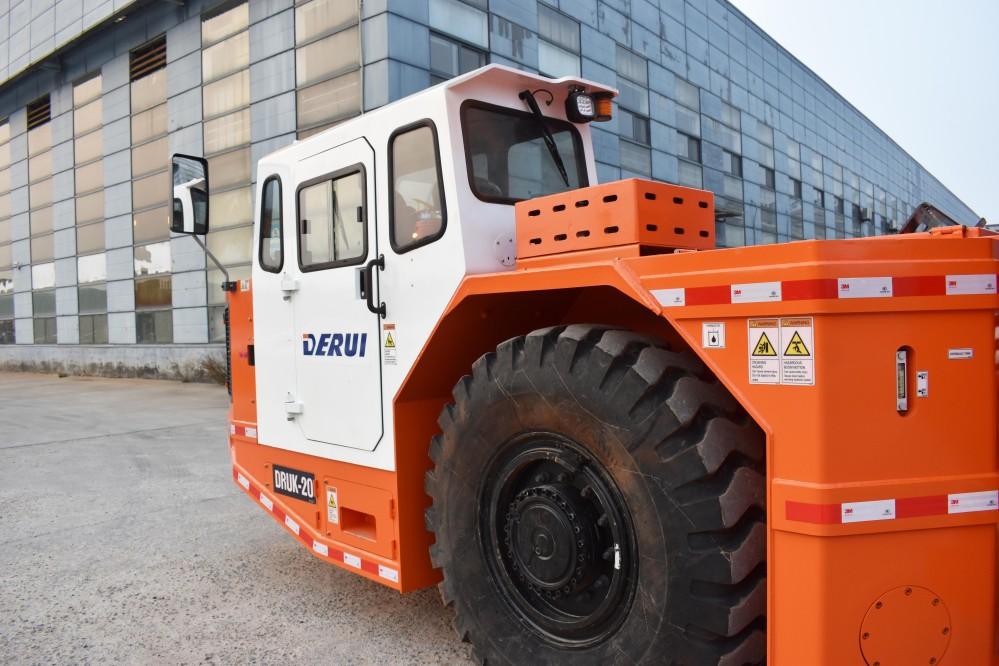

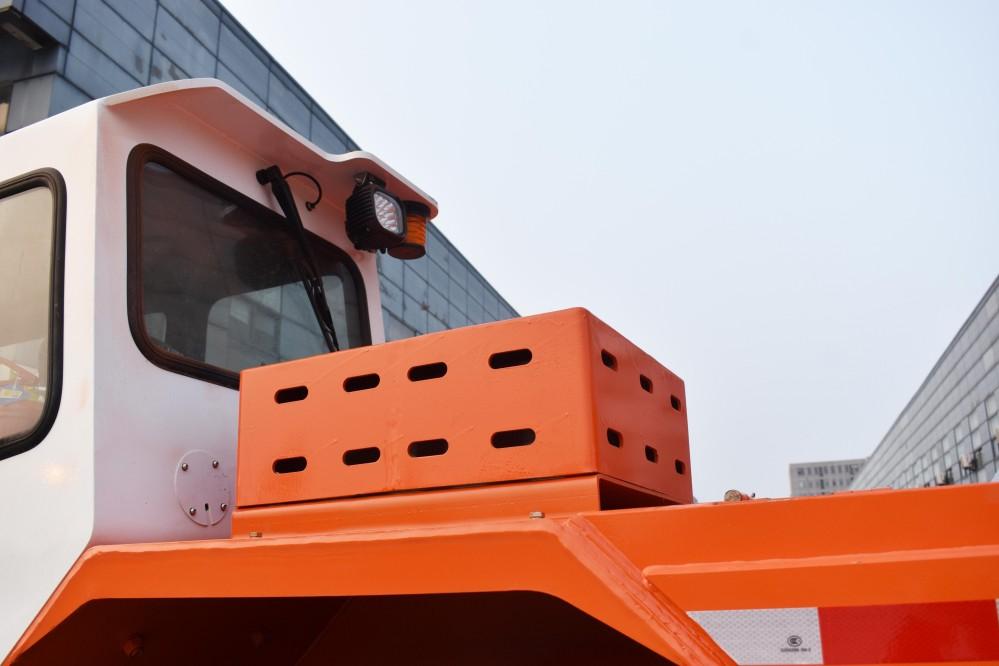

The haul truck cab offers a roomy, comfortable working space with ventilation and temperature control. It has huge rearview mirrors, sliding glass windows, and a broad front windshield for all-around viewing. The layout of the control console follows ergonomic guidelines.
The entire car uses a modular design and CAN bus control, with strict PLC program logic that allows all operating parameters to be shown in real time. Alarm prompts, fault self-diagnosis, and automatic protection features are also included. The machine's key electrical interfaces receive an IP67 protection rating.
It comes with an advanced monitoring and protection system that includes oil level protection, engine protection, and axle brake protection.
Tailored Product Configurations
- An automatic fire suppression system, a tire pressure monitoring system (TPMS), harmful gas monitoring, a 360° surround view system, a weighing system, a retarder auxiliary brake, a hydraulic oil electric heating system, and a coolant auxiliary heating system are among the optional configurations for the underground haul truck.
Technical Parameters
-
Main Technical Parameters of the Complete Machine
Main Technical Parameters of the Complete Machine
No.
Parameter Description
Value
1
Rated Bucket Capacity (m³)
10
2
Rated Payload (kg)
20,000
3
Operating Weight, Empty (kg)
21,500
4
Overall Dimensions (L × W × H) (mm)
9008×2280×2445
5
Loading Height (mm)
2,165
6
Body Lift Height (mm)
4,900
7

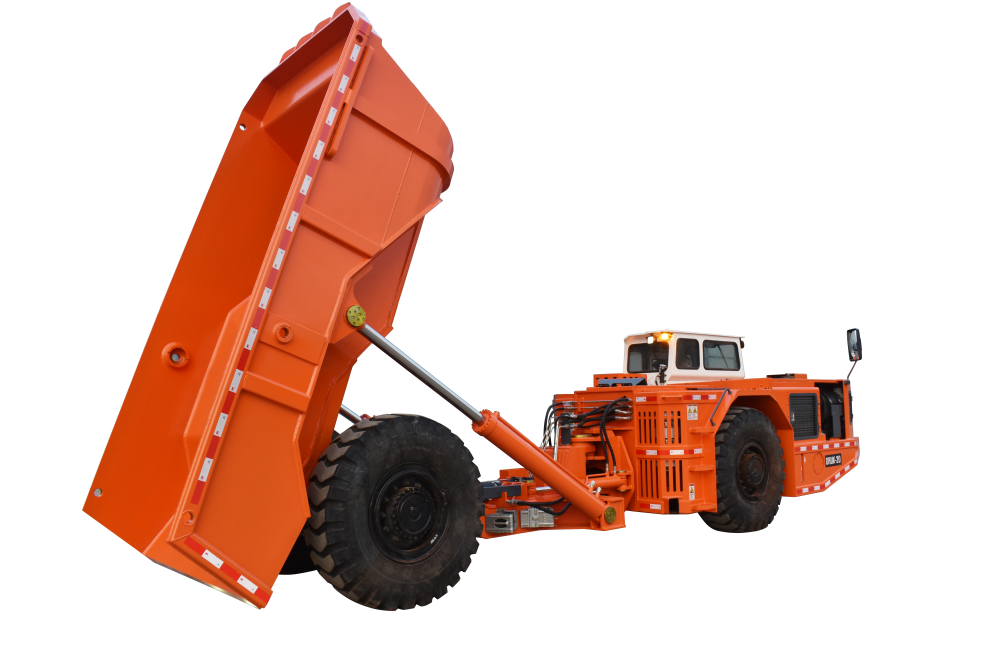

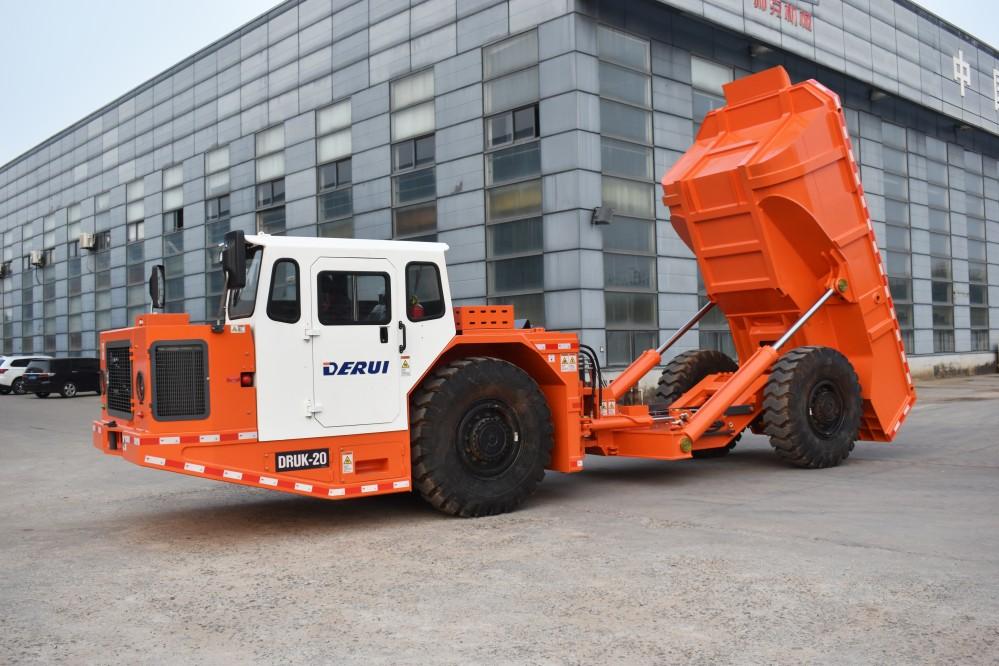

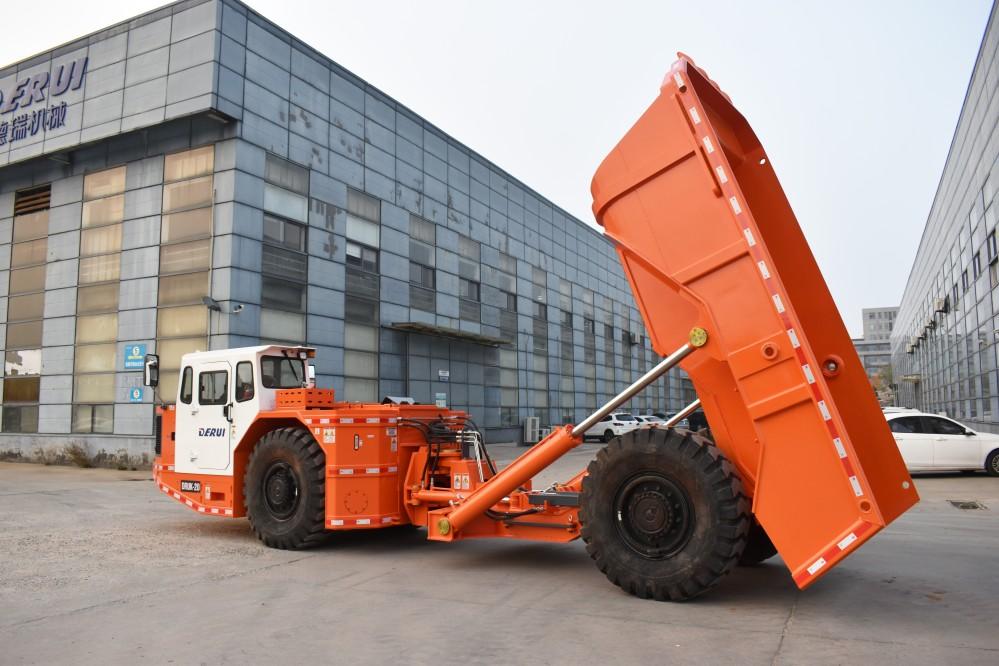

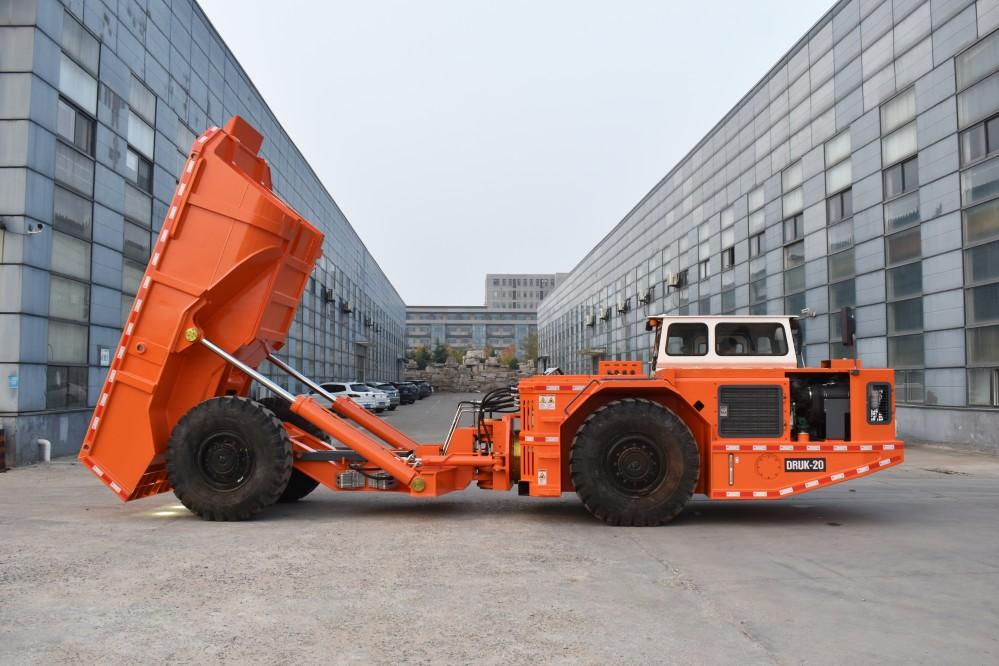

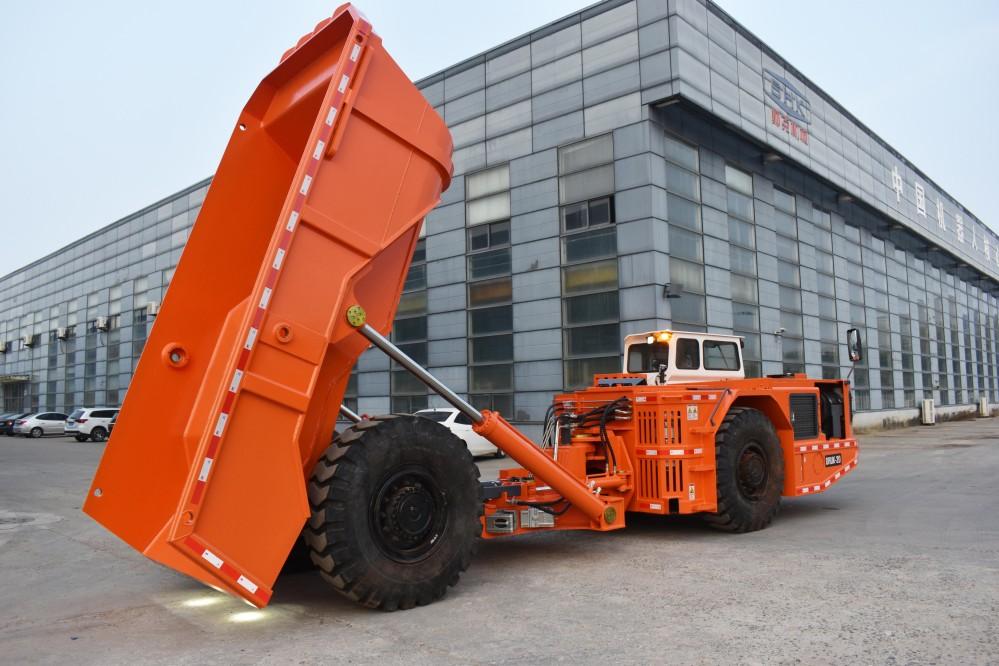

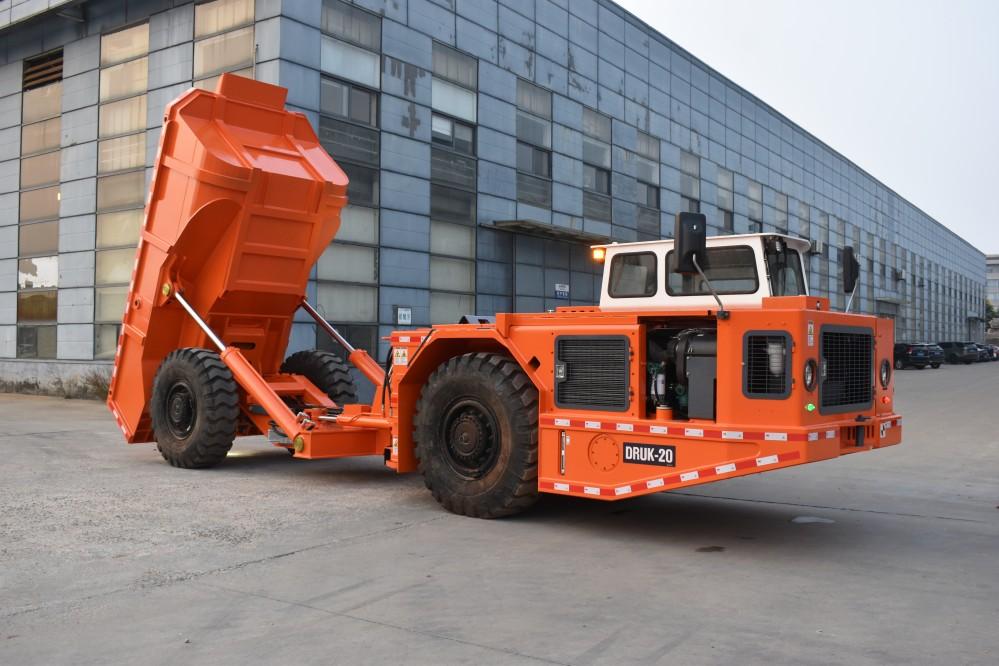

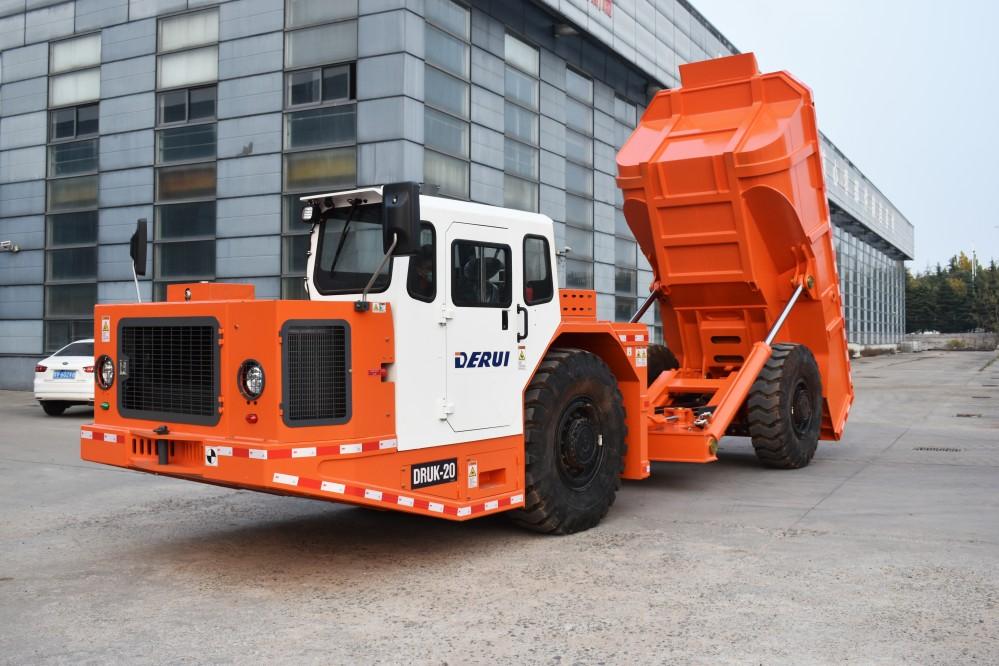

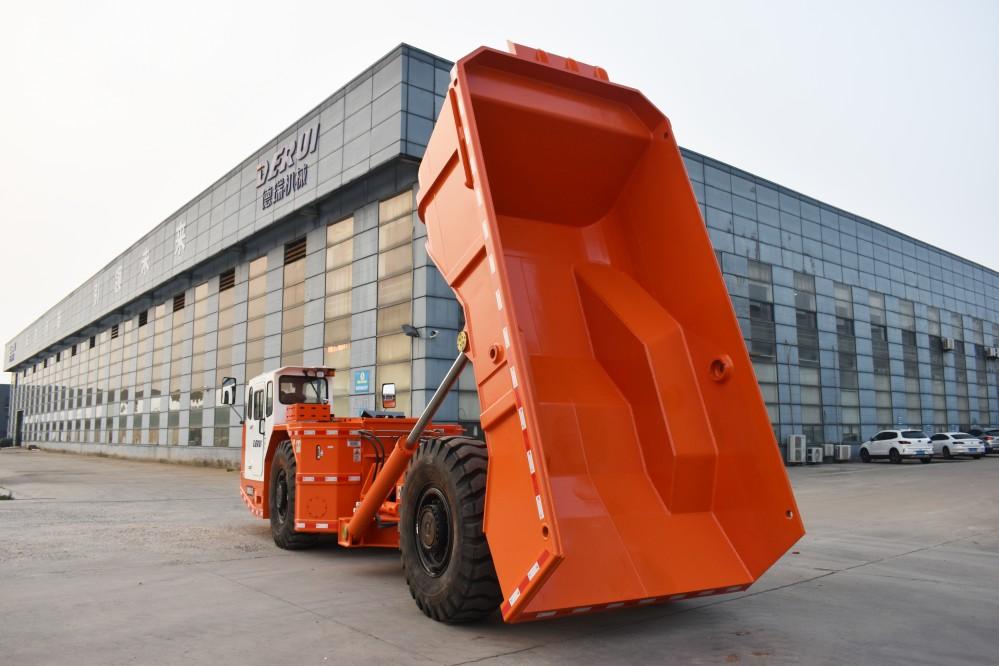

Body Dump Angle (°)
65
8
Body Lift Time (s)
11
9
Maximum Traction Force (kN)
249
10
Ground Clearance (mm)
310
11
Approach Angle (°)
15
12
Oscillation Angle (°)
±8
13
Gradability (°)
≥14
14
Minimum Turning Radius (mm)
Inside wheel:4657
Outside wheel:7809
15
Travel Speed(km/h)
1gear
5.4
2gear
10.9
3gear
19.2
4gear
31.7
-
Engine
-
Hydraulic System
-
Transmission
