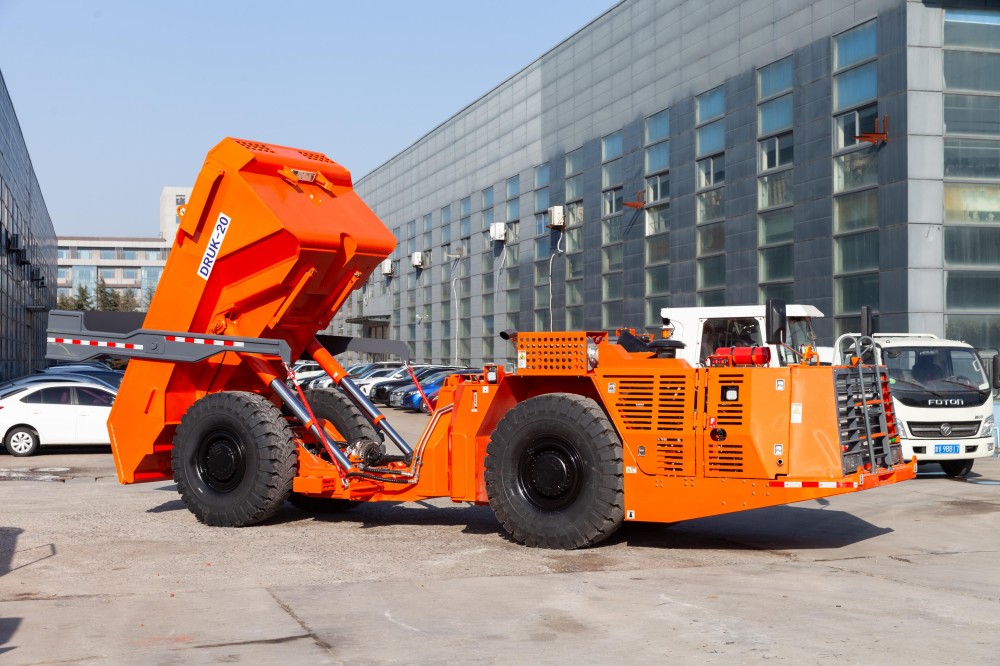

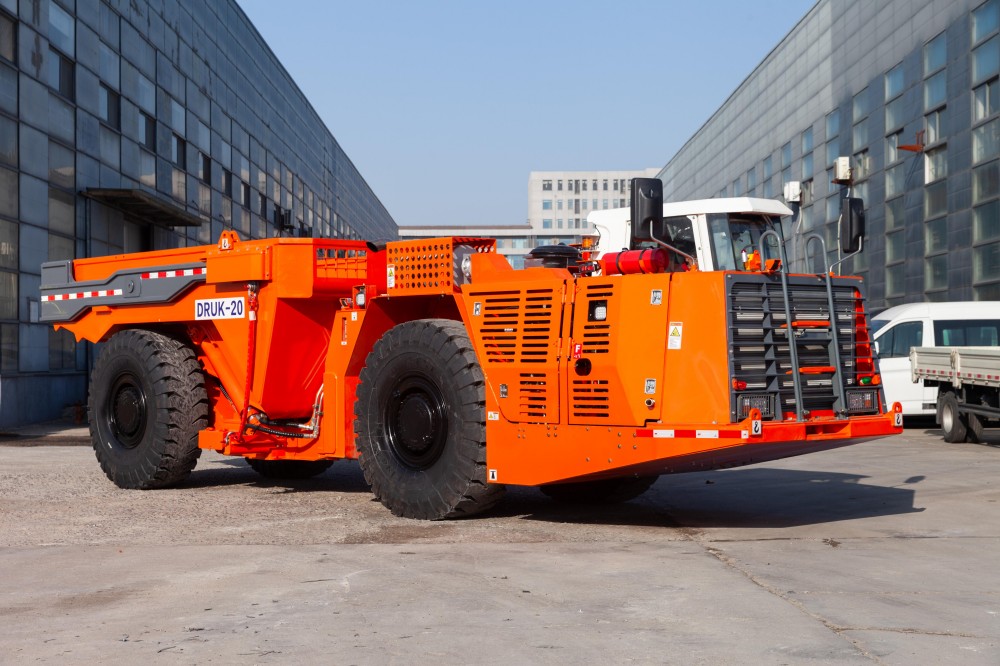

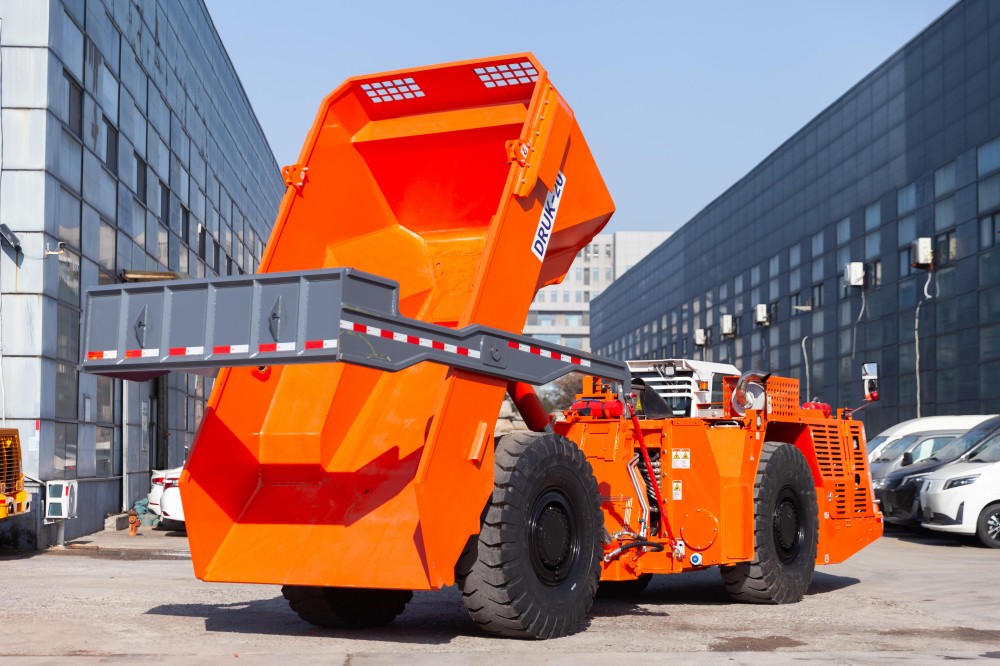

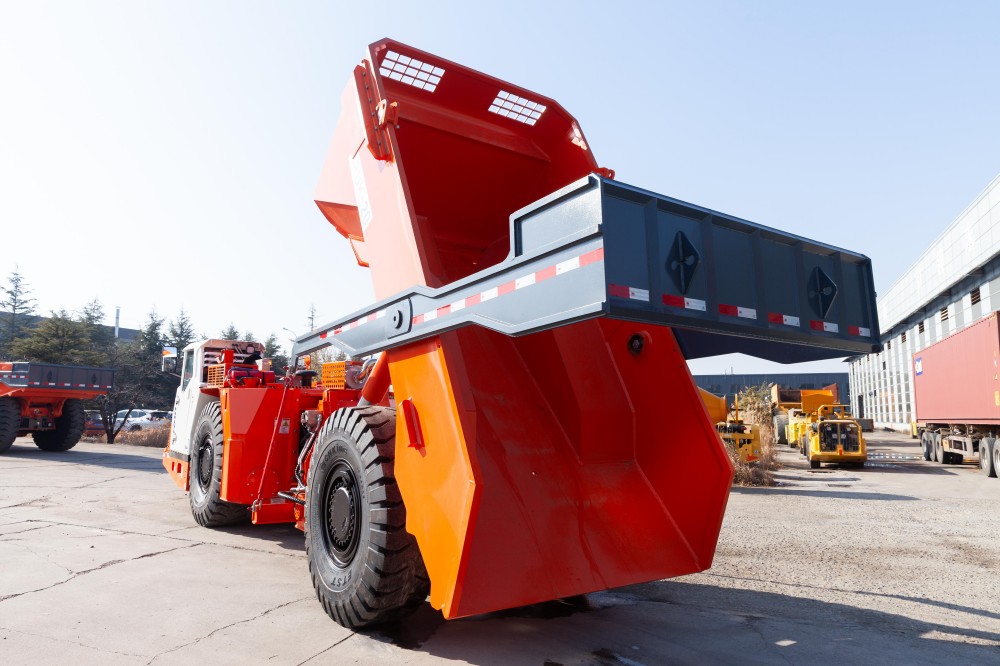

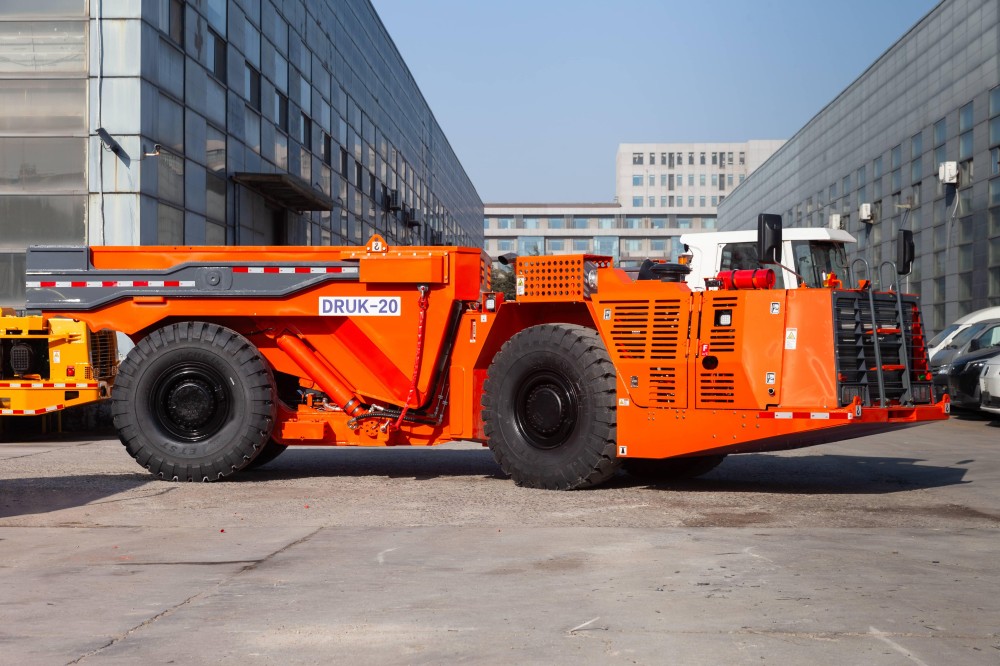

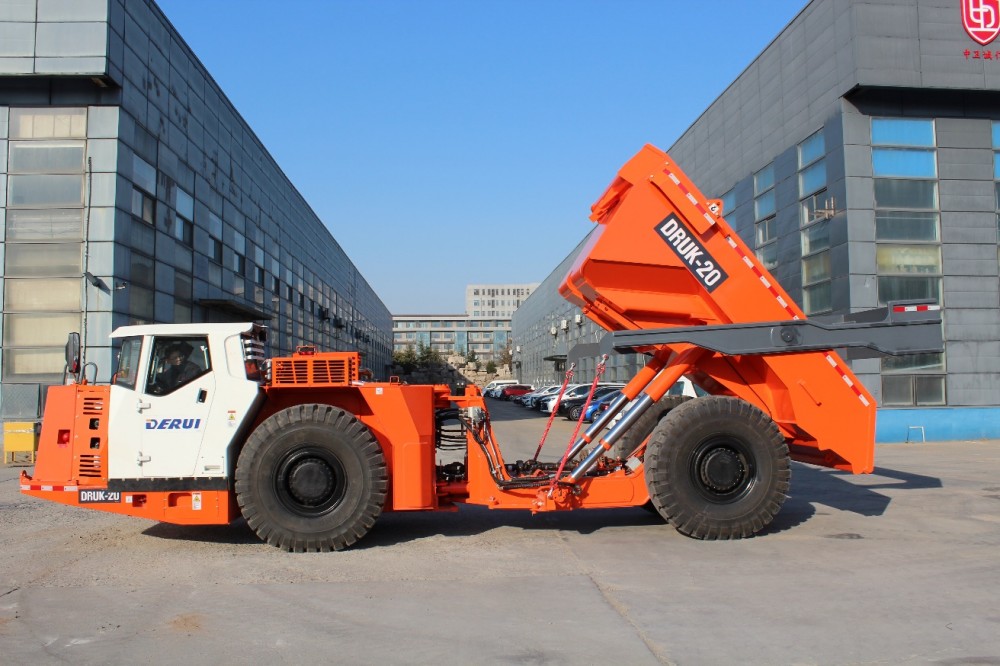

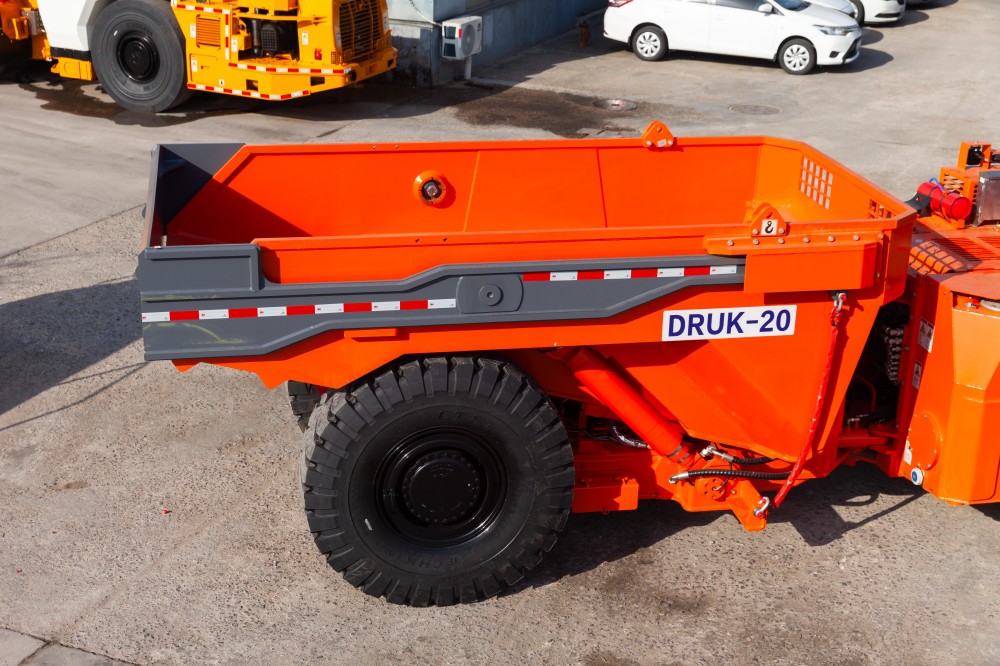

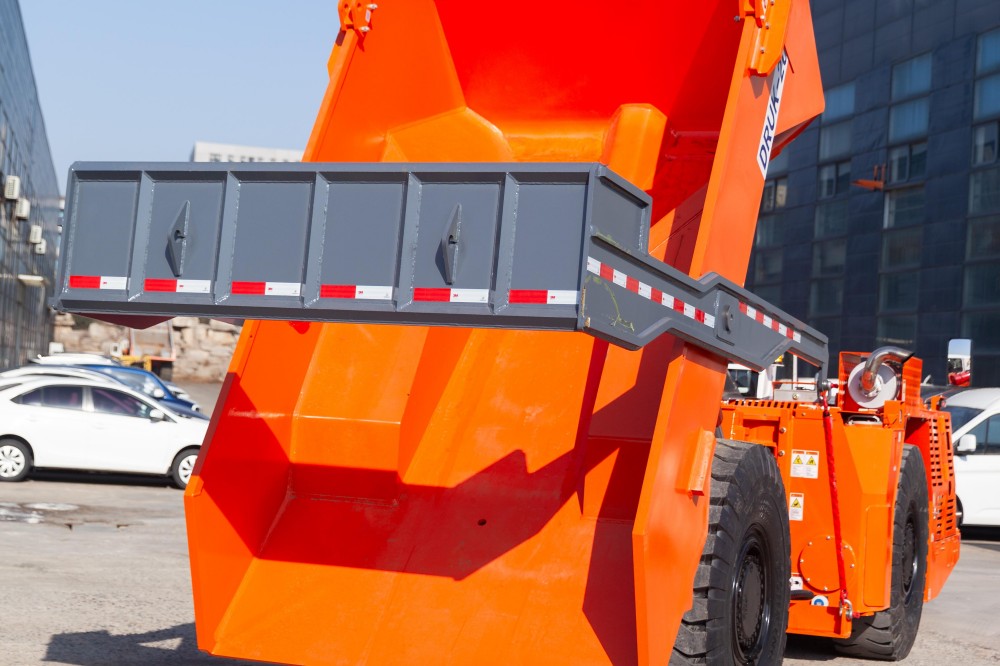

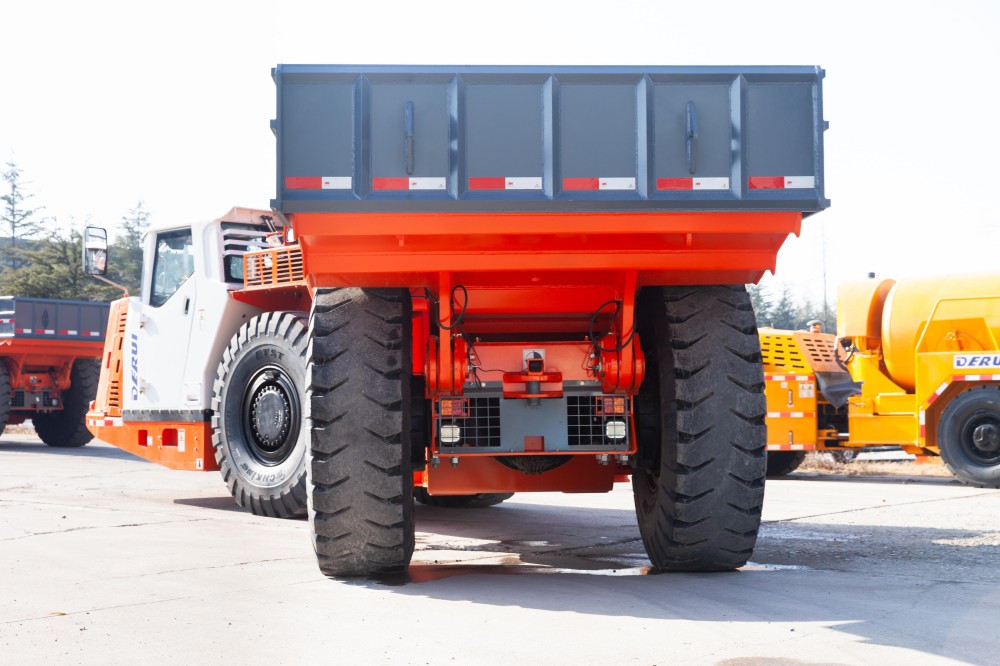

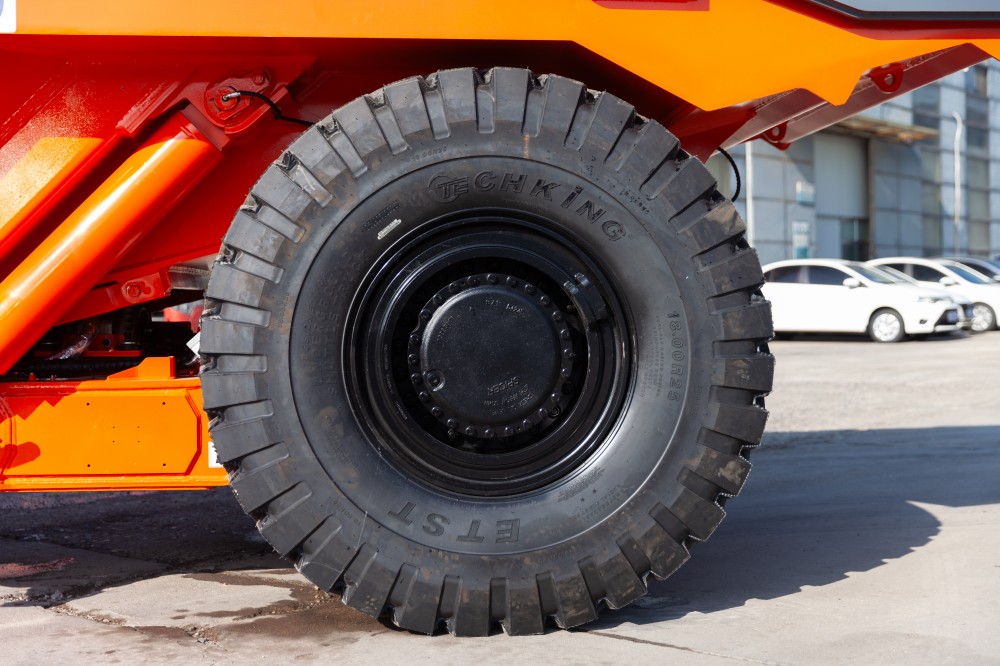

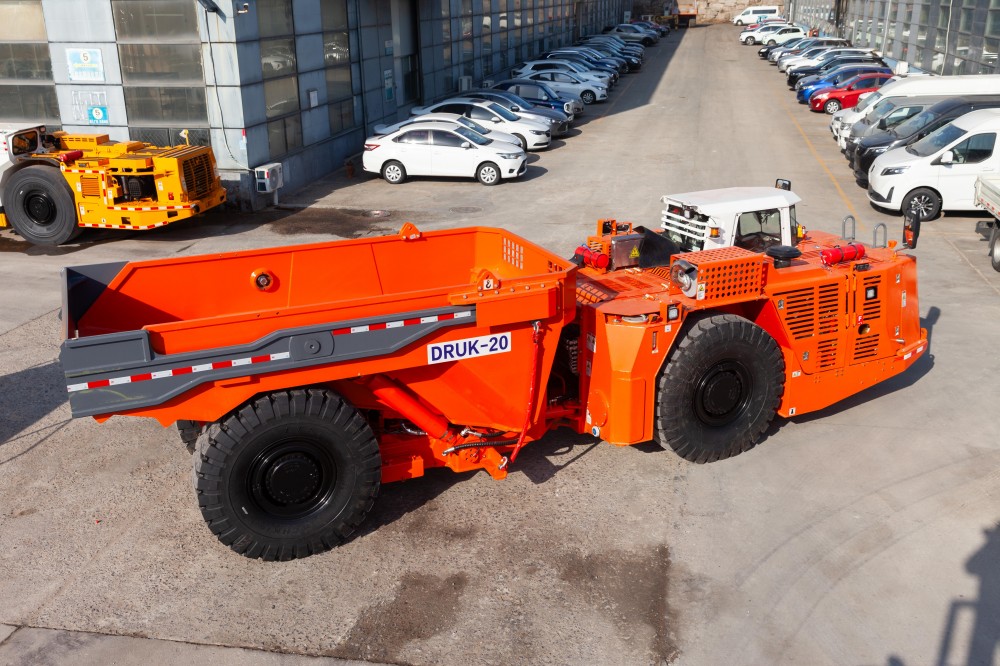

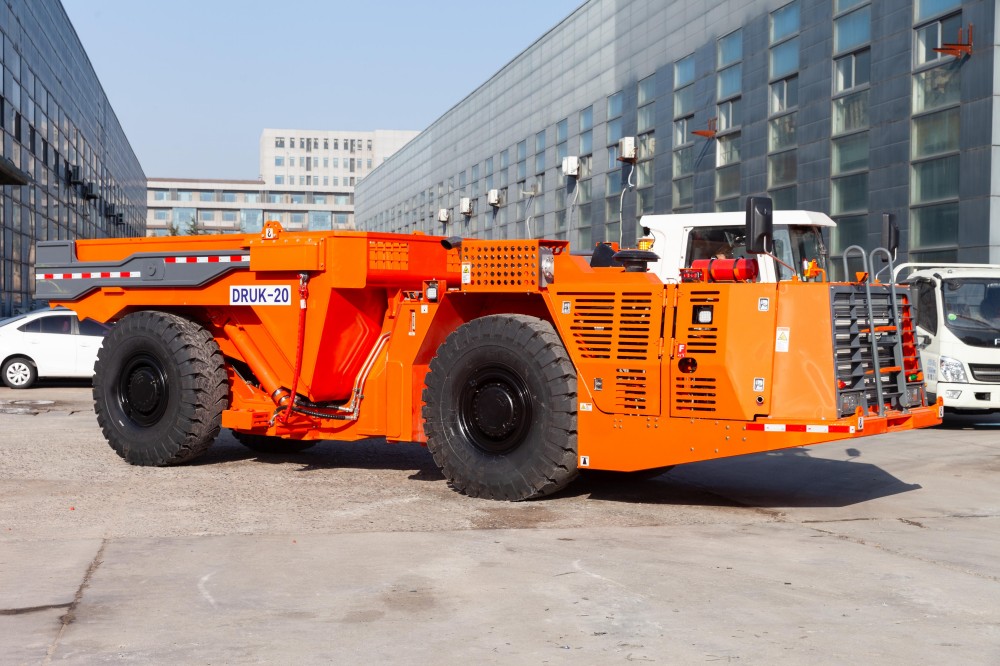

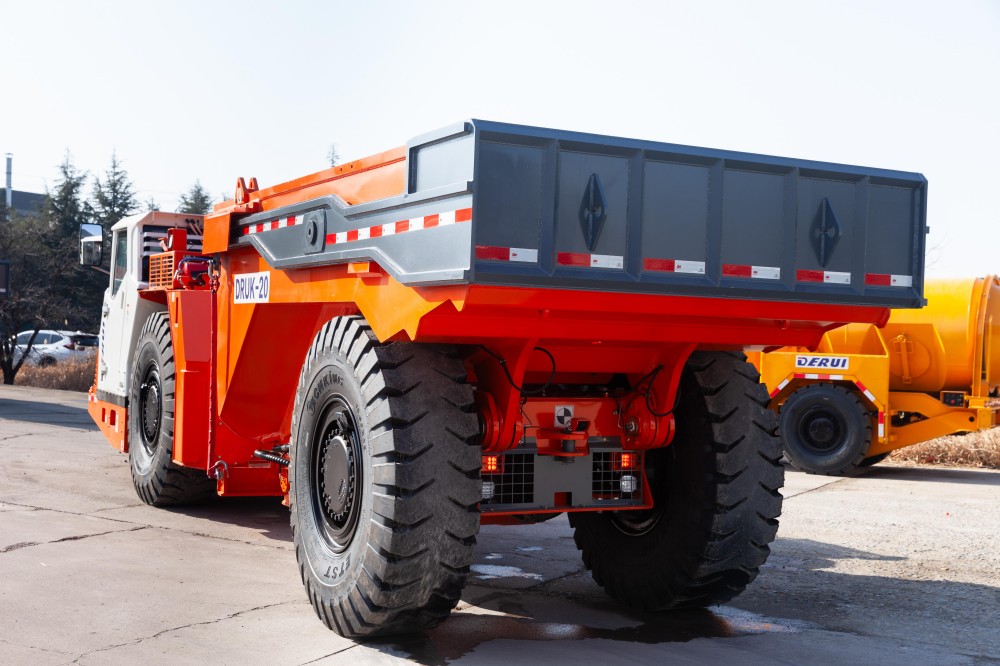

DRUK-20（SWB） Underground Dump Truck
description1
PRODUCT SPECIFICATIONS
|
Tramming Capacity(Rated load Capacity) |
20 Ton |
|
Standard Bucket Volume |
10m³ |
|
Approximate Weight |
22,600 KG |
|
Dimension(LxWxH) |
9098×2212×2447 mm |
|
Engine Power |
235 KW |
Base Model Configuration

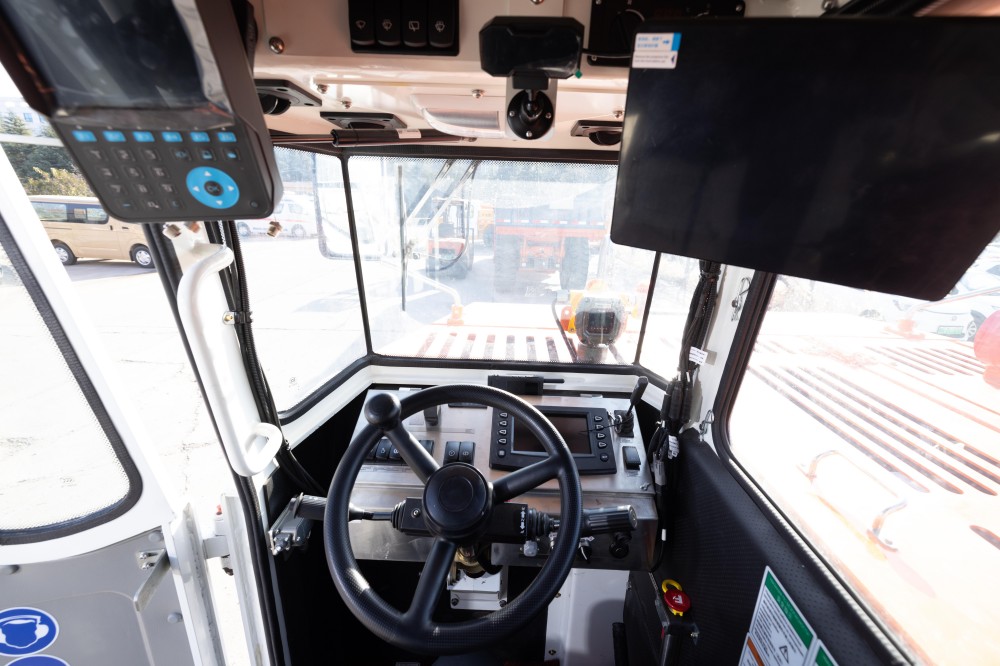

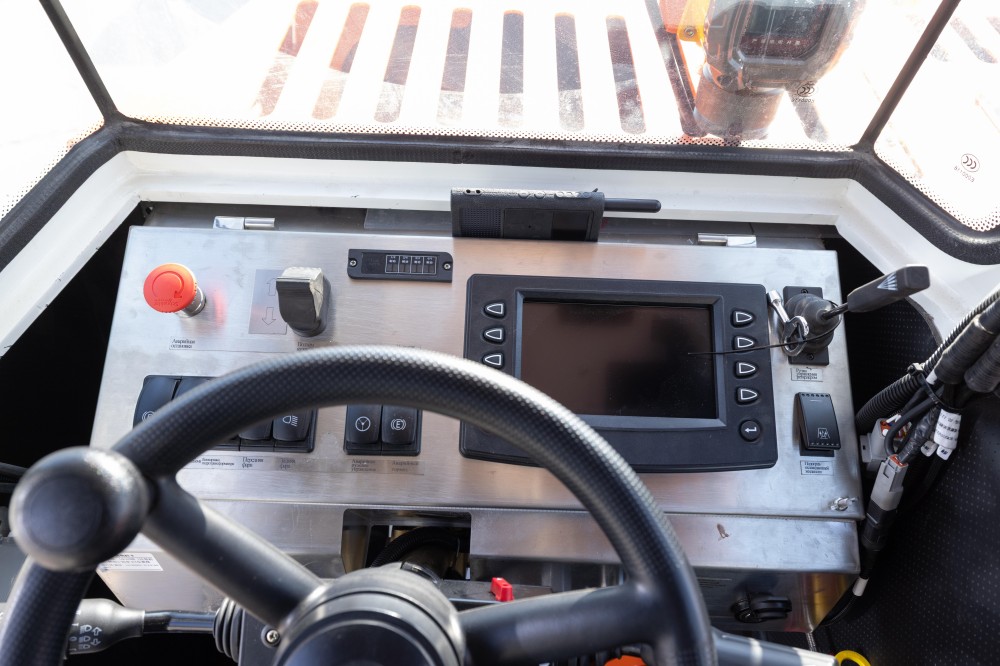

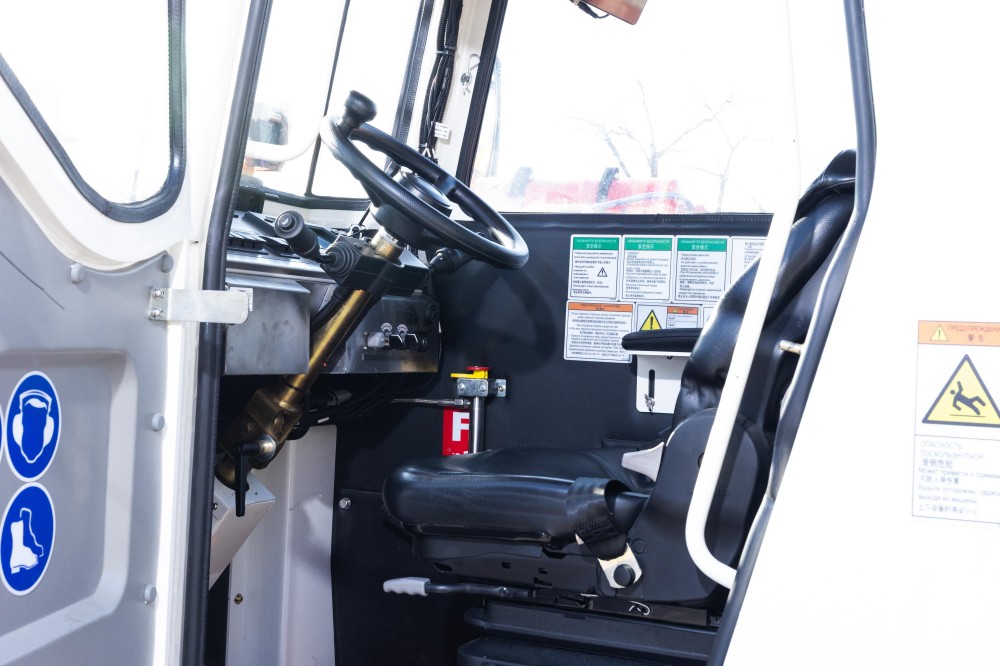

The haul truck cab features a spacious, ergonomic interior equipped with advanced climate control and ventilation. Large rearview mirrors, sliding windows, and a wide-set windshield ensure exceptional all-around visibility, while the control console is intuitively laid out for maximum operator comfort.
Our modular design and CAN bus control system put total command at your fingertips. Real-time parameter tracking, fault self-diagnosis, and automatic protection are all powered by robust PLC logic. Built for harsh environments, the machine features IP67-rated electrical interfaces and an advanced protection suite for the engine, brakes, and oil systems.
Our modular design and CAN bus control system put total command at your fingertips. Real-time parameter tracking, fault self-diagnosis, and automatic protection are all powered by robust PLC logic. Built for harsh environments, the machine features IP67-rated electrical interfaces and an advanced protection suite for the engine, brakes, and oil systems.
Tailored Product Configurations

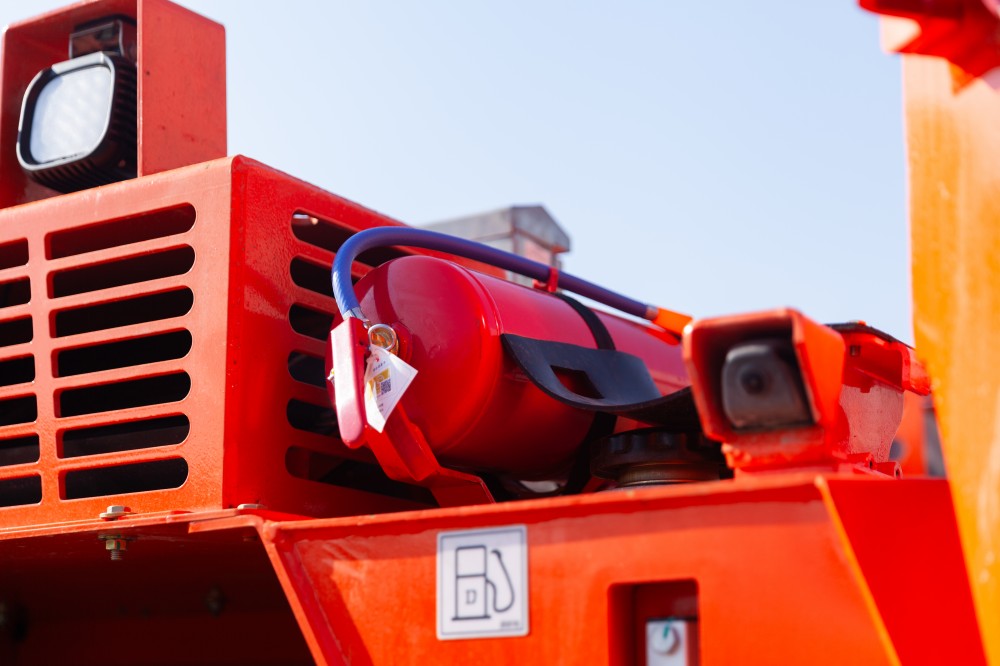

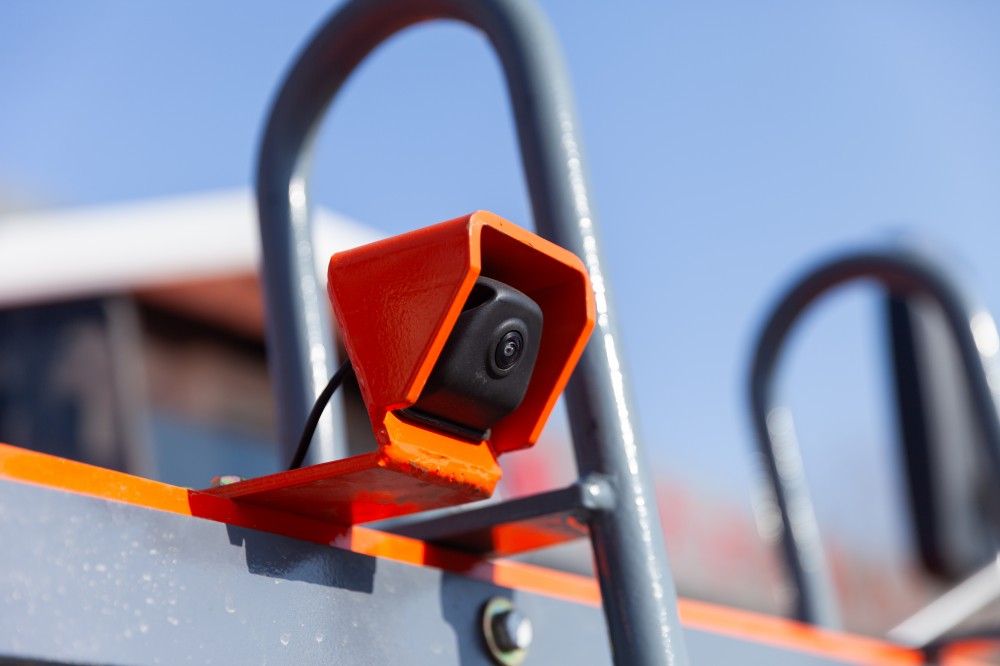

- Customize your haul truck with advanced optional features, including a 360° surround view system and automated fire suppression. Other available upgrades include TPMS, harmful gas monitoring, an integrated weighing system, and a retarder auxiliary brake. For cold-weather operations, we also offer electric heating systems for both hydraulic oil and coolant.
Technical Parameters
-
Main Technical Parameters of the Complete Machine
No.
Parameter Description
Value
1
Rated Bucket Capacity (m³)
10
2
Rated Payload (kg)
20,000
3
Operating Weight, Empty (kg)
22,500
4
Overall Dimensions (L × W × H) (mm)
9098×2212×2447
5
Loading Height (mm)
2,309
6
Body Lift Height (mm)
4,597
7
Body Dump Angle ( ° )
65
8
Body Lift Time (s)
14
9
Maximum Traction Force (kN)
255
10
Ground Clearance (mm)
345
11
Approach Angle ( ° )
15
12
Oscillation Angle ( ° )
±8
13
Gradability ( ° )
≥14
14
Minimum Turning Radius (mm)
Inside wheel:4054
Outside wheel:7412
15
Travel Speed(km/h)
1gear
5.9
2gear
11.9
3gear
21.1
4gear
34.8
-
