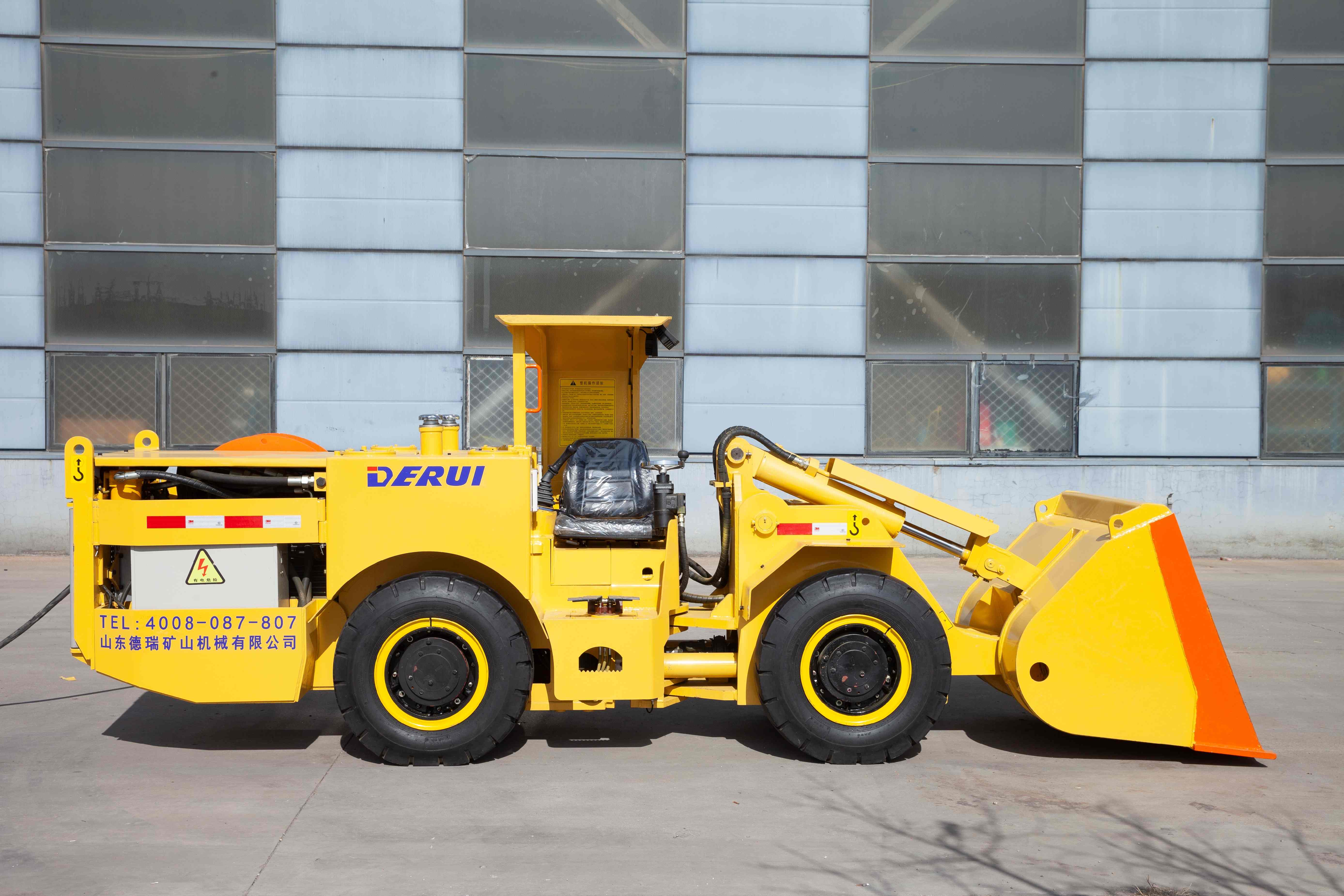

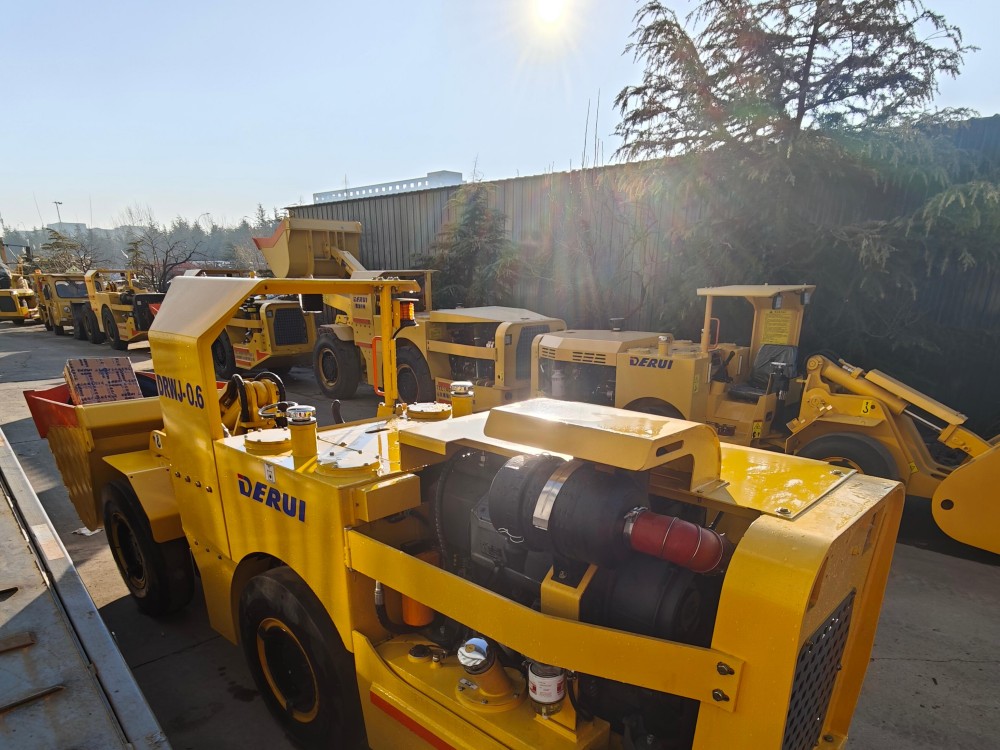

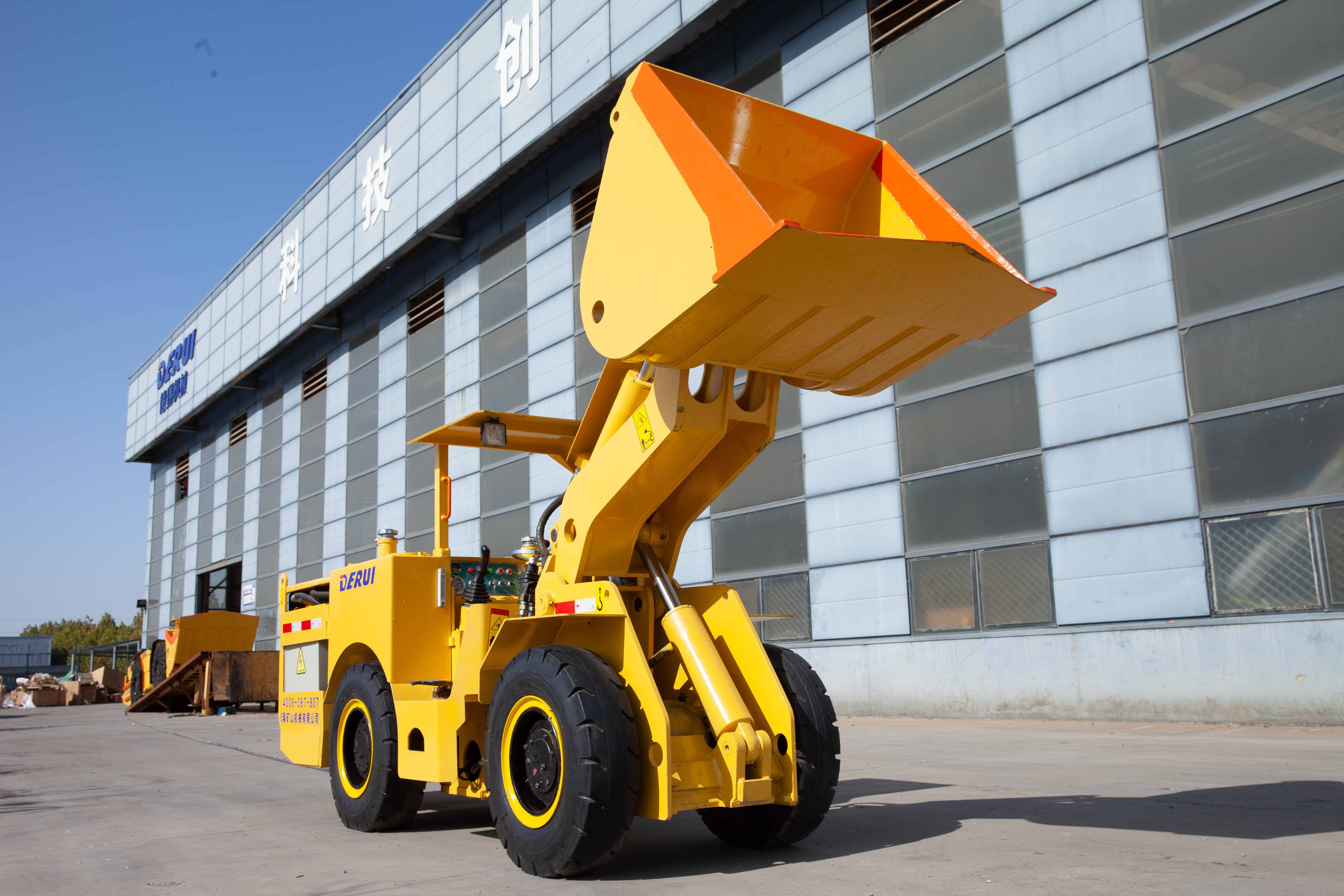

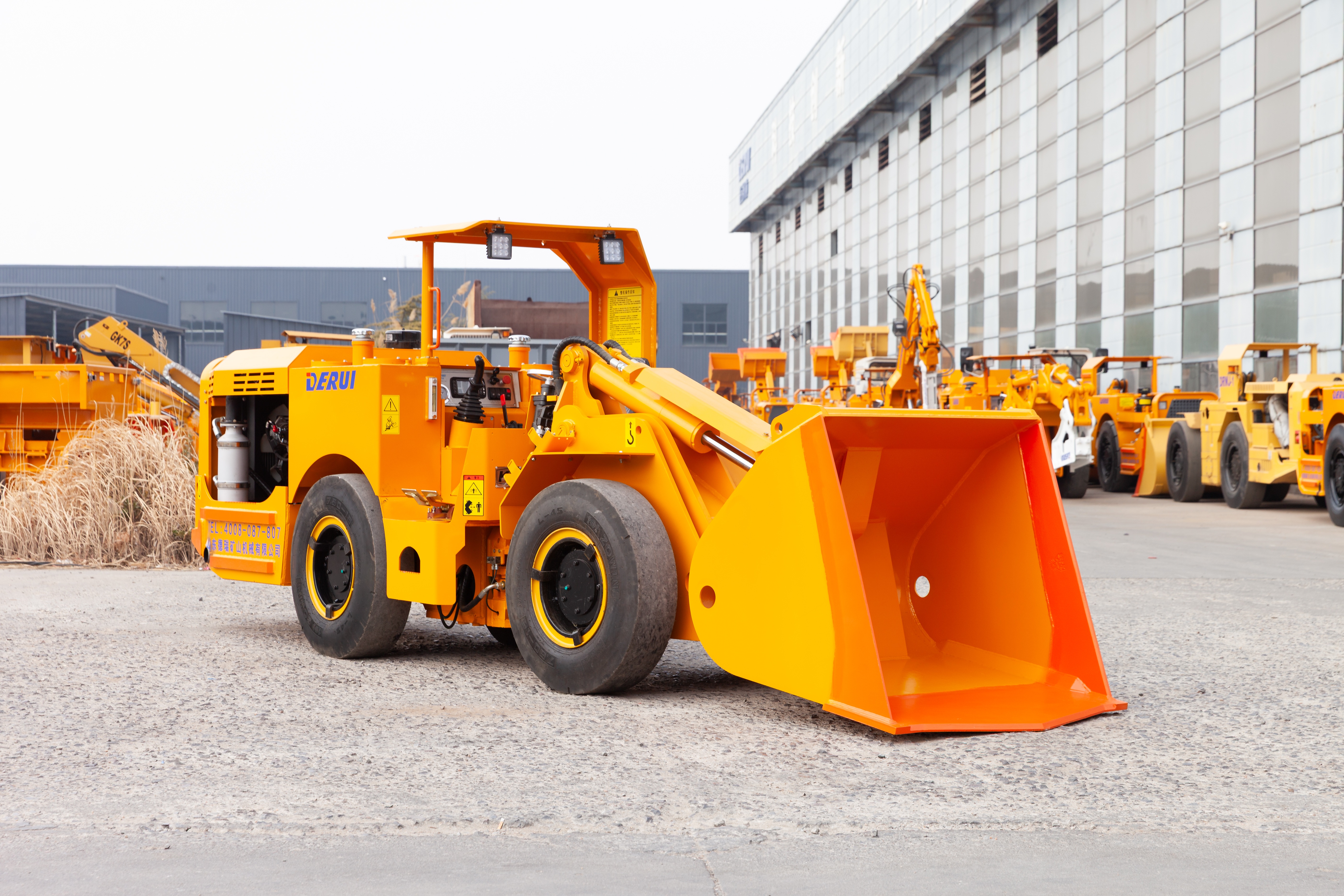

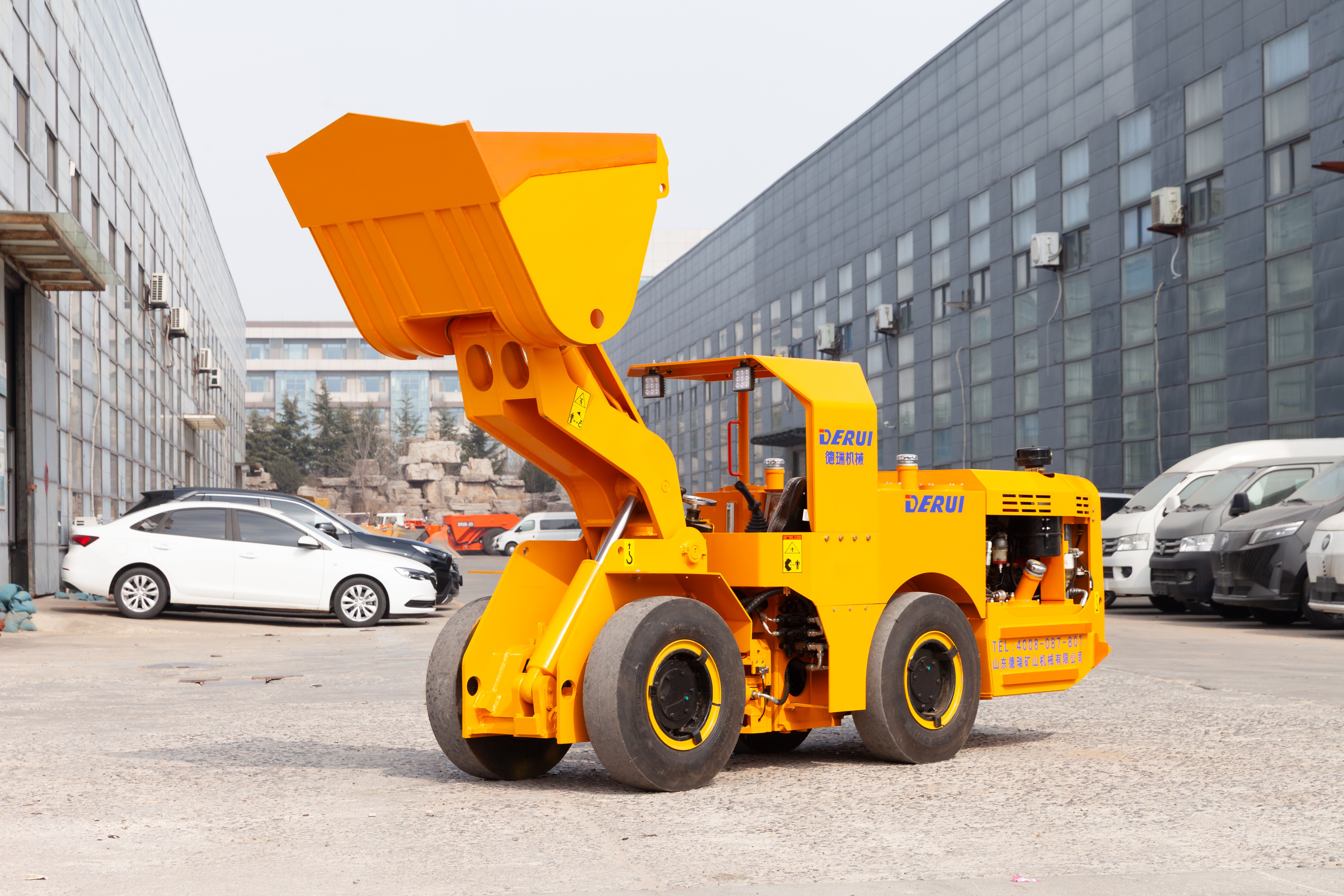

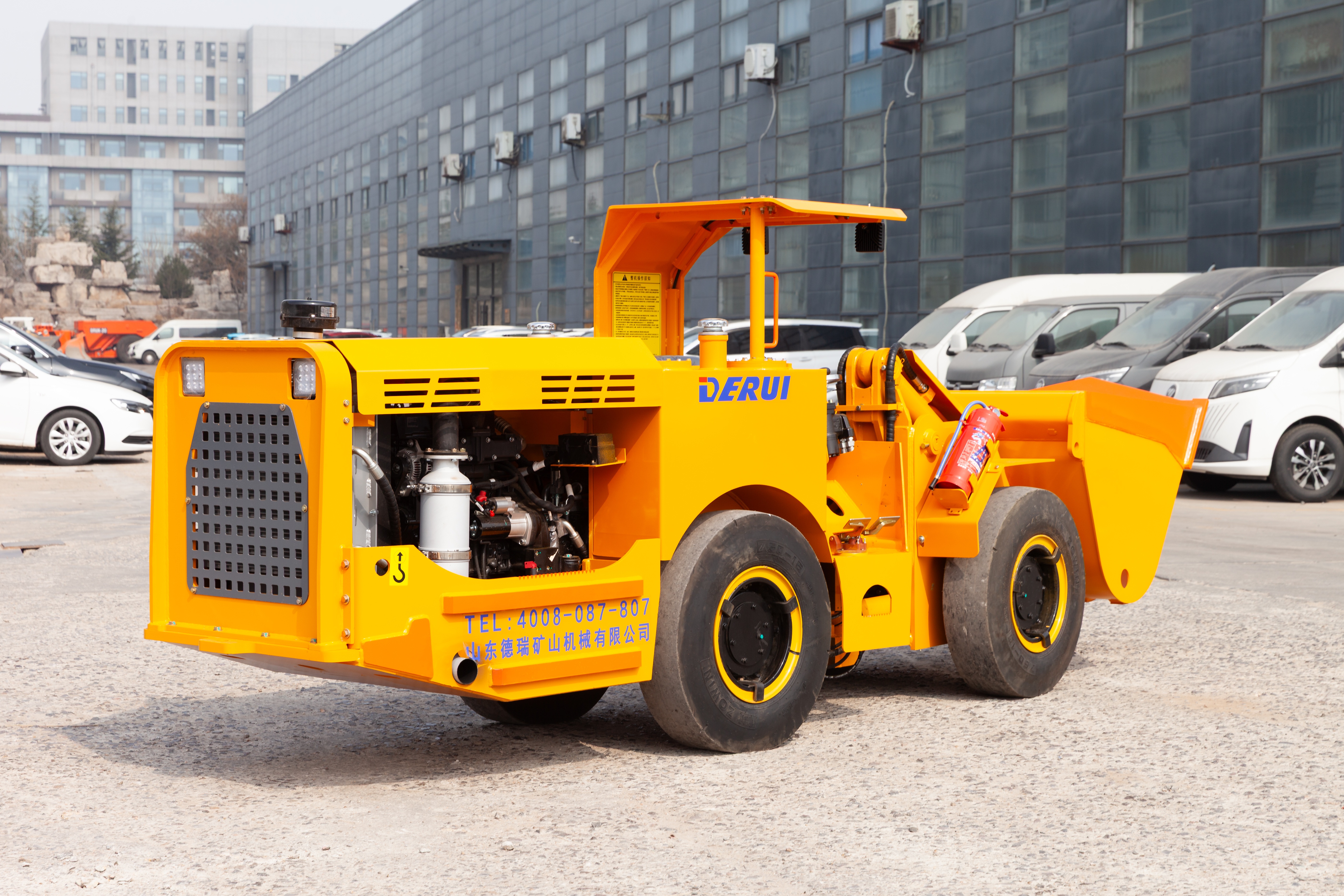

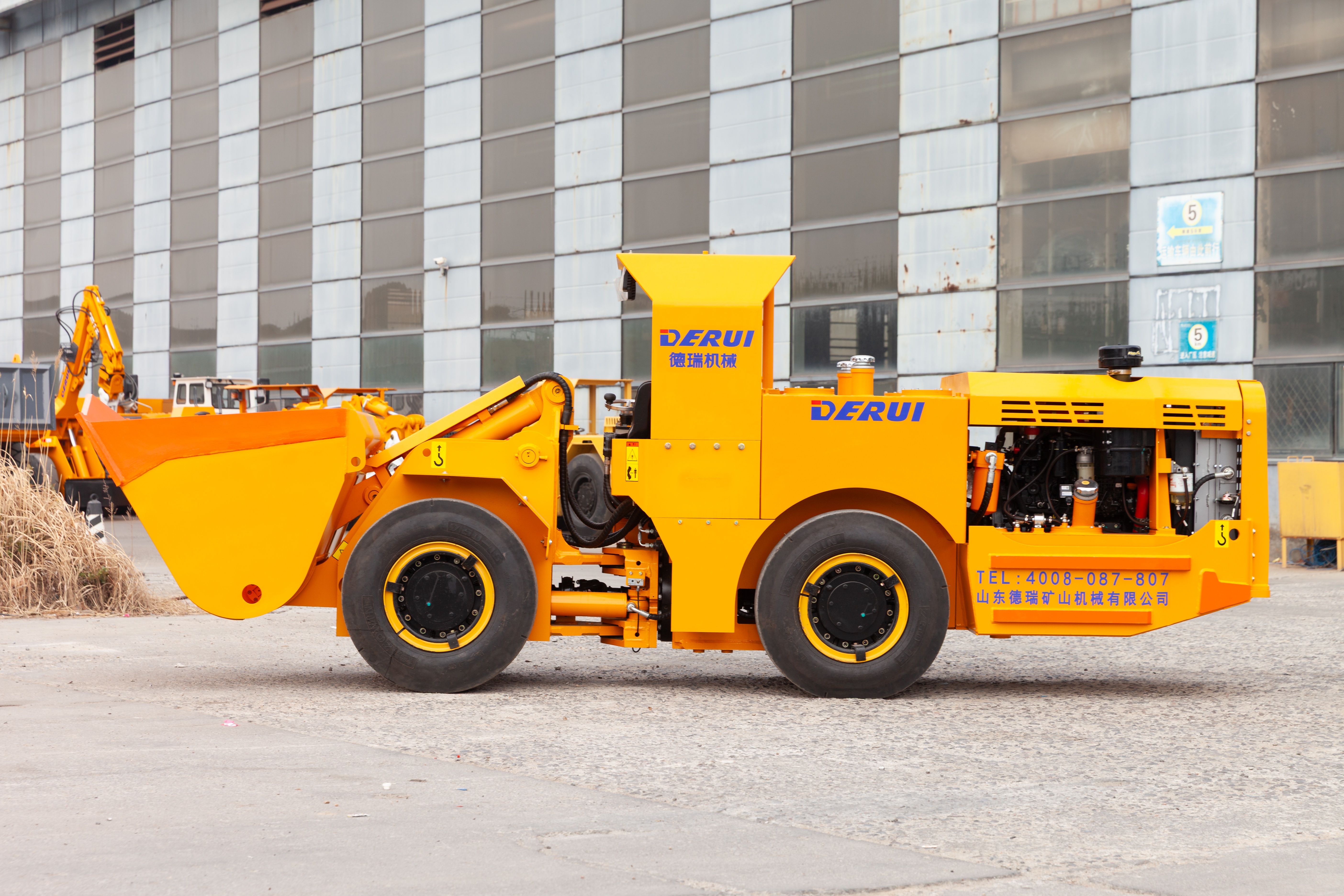

DRWJ-0.6 Underground Diesel LHD Loader
description1
PRODUCT SPECIFICATIONS
|
Tramming Capacity(Rated load Capacity) |
1.2 Ton |
|
Standard Bucket Volume |
0.6m³ |
|
Approximate Weight |
5050 KG |
|
Dimension(LxWxH) |
5050*1150*1890 mm |
|
Engine Power |
58-66 KW |
Base Model Configuration
Equipped with Danfoss hydraulic pumps and a centralized lubrication system as standard.
Reinforced heavy-duty frame significantly improves impact resistance.

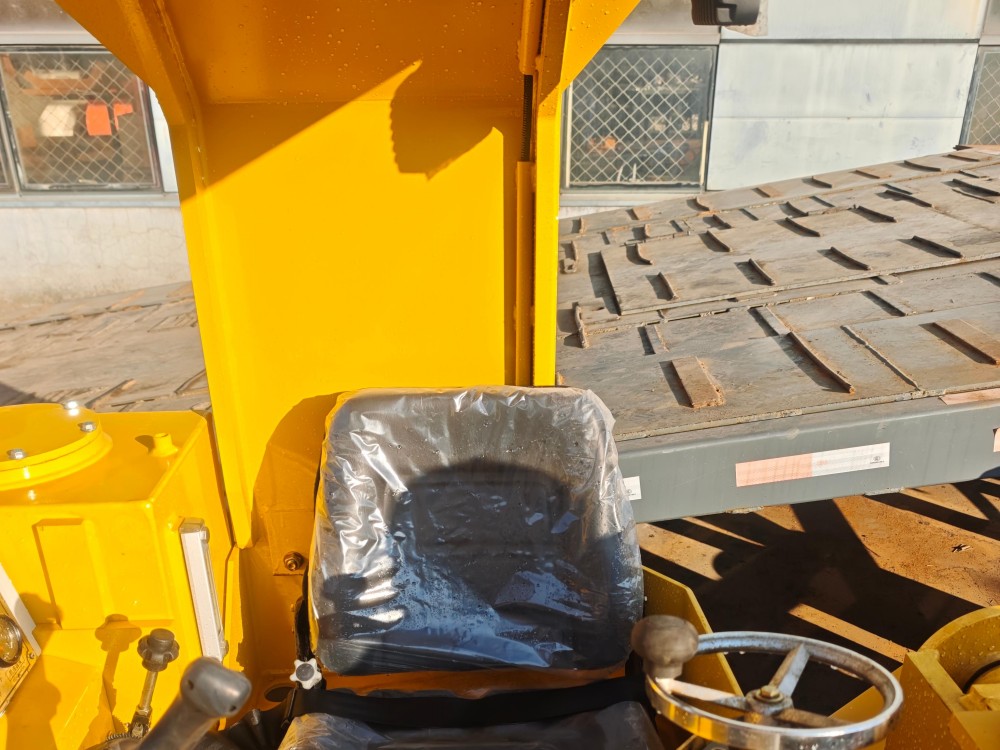

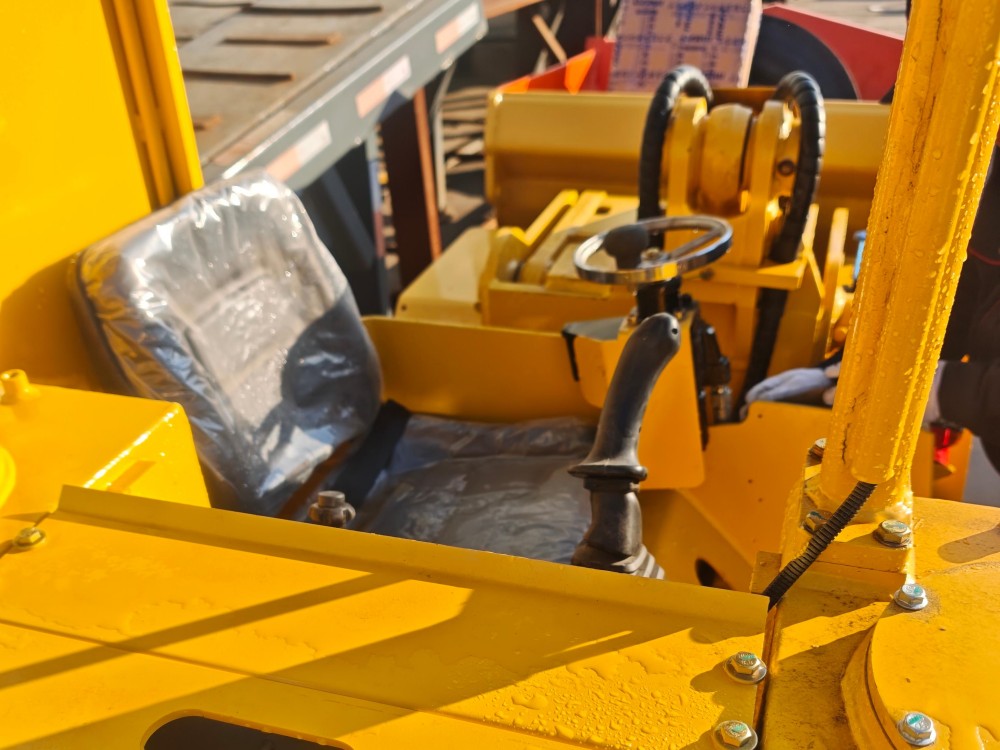

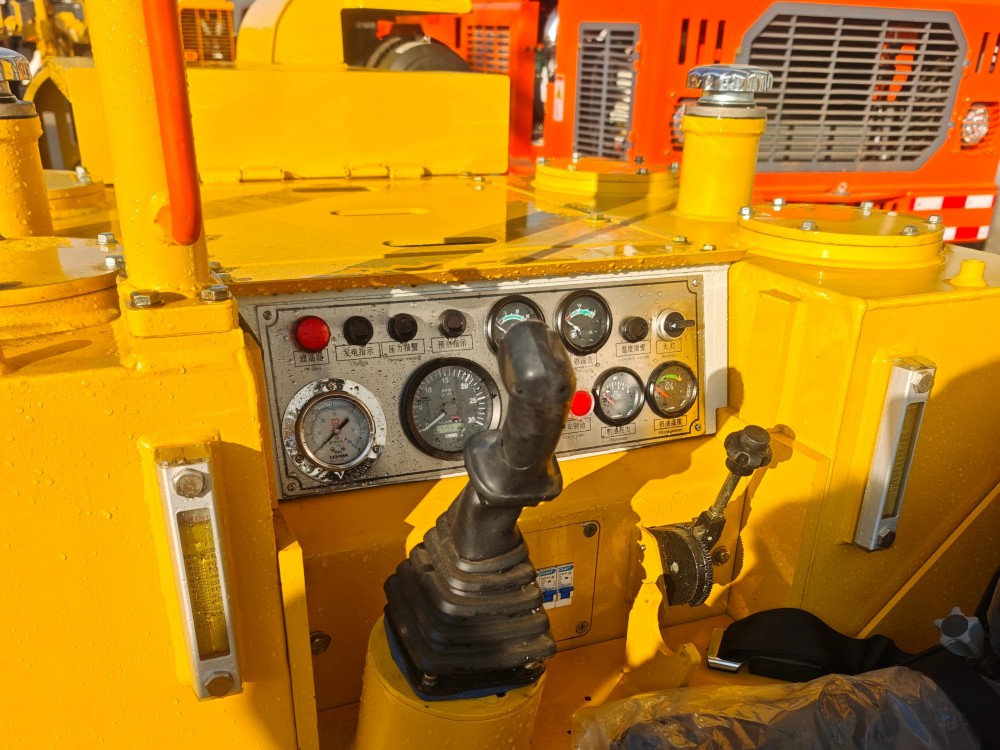

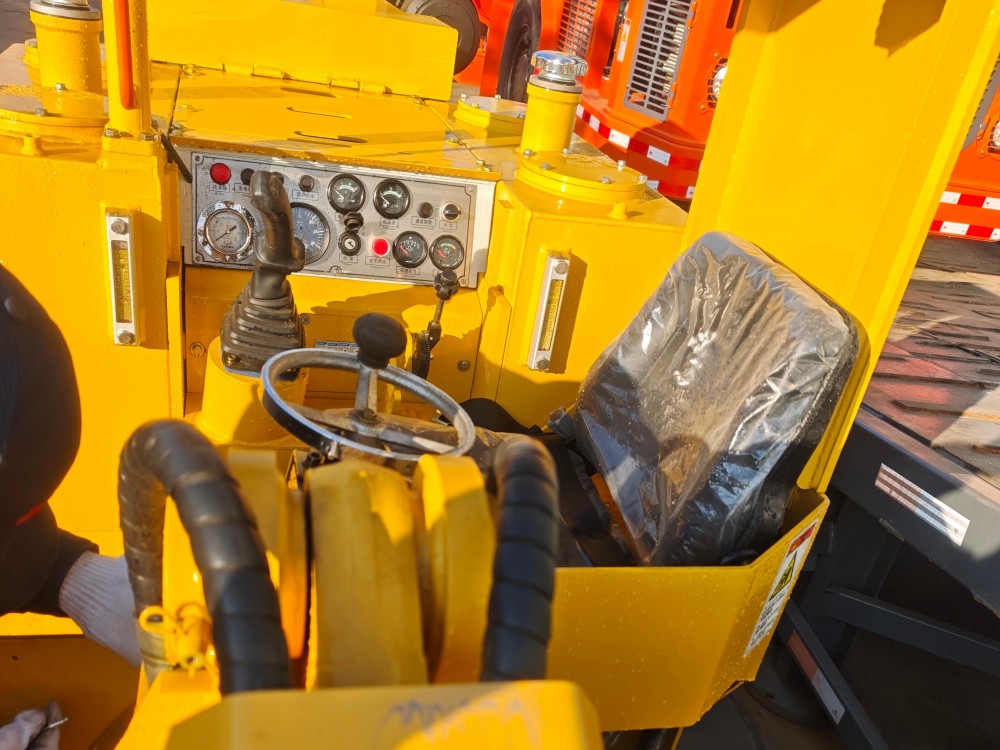

Integrated pilot control and full hydraulic steering enable lightweight and agile operation.
Contact usTailored Product Configurations
Three engine options are available for configuration.
Optional configurations include line-of-sight remote control, video remote control, and automatic fire suppression systems.
Technical Parameters
-
Main Technical Parameters of the Complete Machine
No.
Parameter Description
Value
1
Bucket Capacity (m³)
0.6
2
Rated Payload (kg)
1,200
3
Operating Weight, Empty (kg)
5,000
4
Max. Digging Force (kN)
≥32
5
Max. Dump Height (mm)
≥35
6
Transport Dimensions (L×W×H) (mm)
5,070×1, 180×1,850
7
Min. Ground Clearance (mm)
190
8
Max. Dump Clearance Height (mm)
2,670
9
Max. Dump Height (mm)
990
10
Min. Dump Reach (mm)
750
11
Steering Angle (°)
38
12
Dump Angle (°)
40
13
Departure Angle (°)
≥15
14
Frame Oscillation Angle(°)
±6~±8
15
Max. Gradability (Loaded) (°)
≥14
16
Min. Turning Radius (Outside) (mm)
3,450
17
Min. Turning Radius (Inside) (mm)
1,900
18
Travel Speed(km/h)
Forward
5±0.5
Reverse
5±0.5
-
Engine
-
Hydraulic System
-
Transmission
