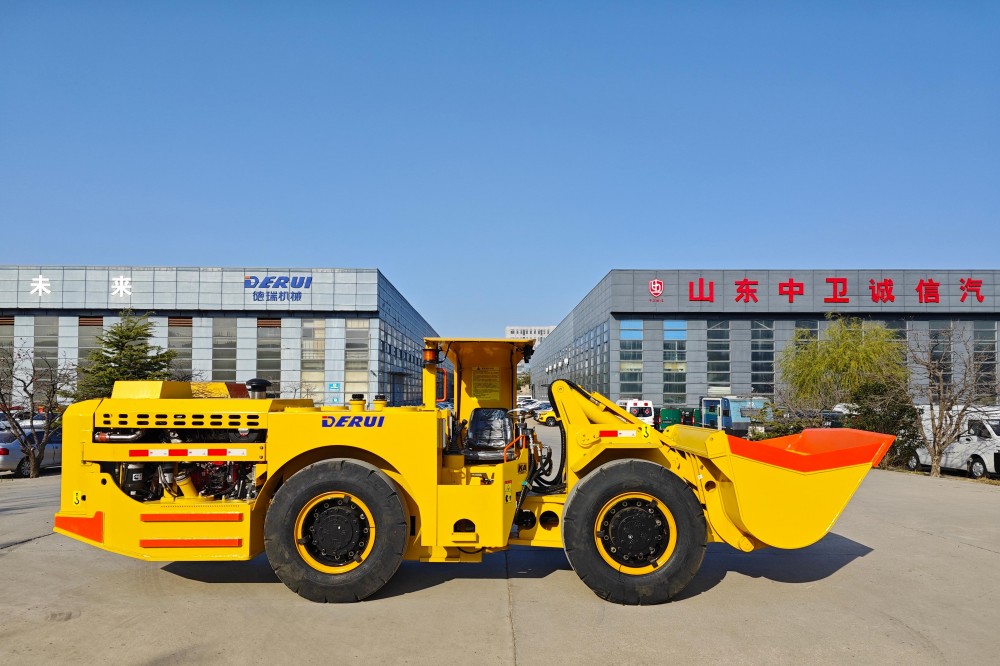

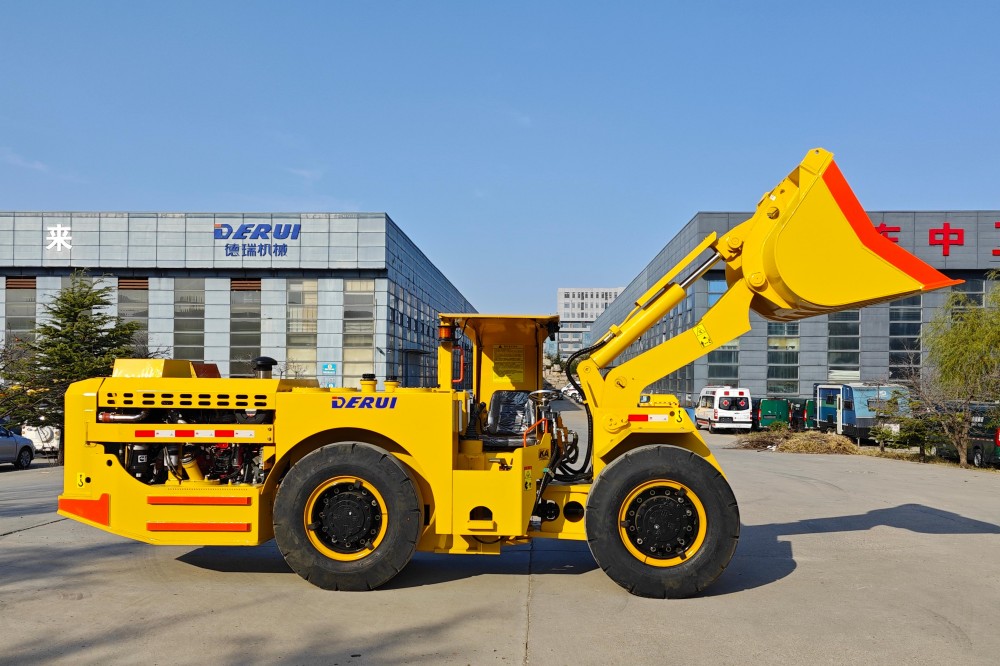

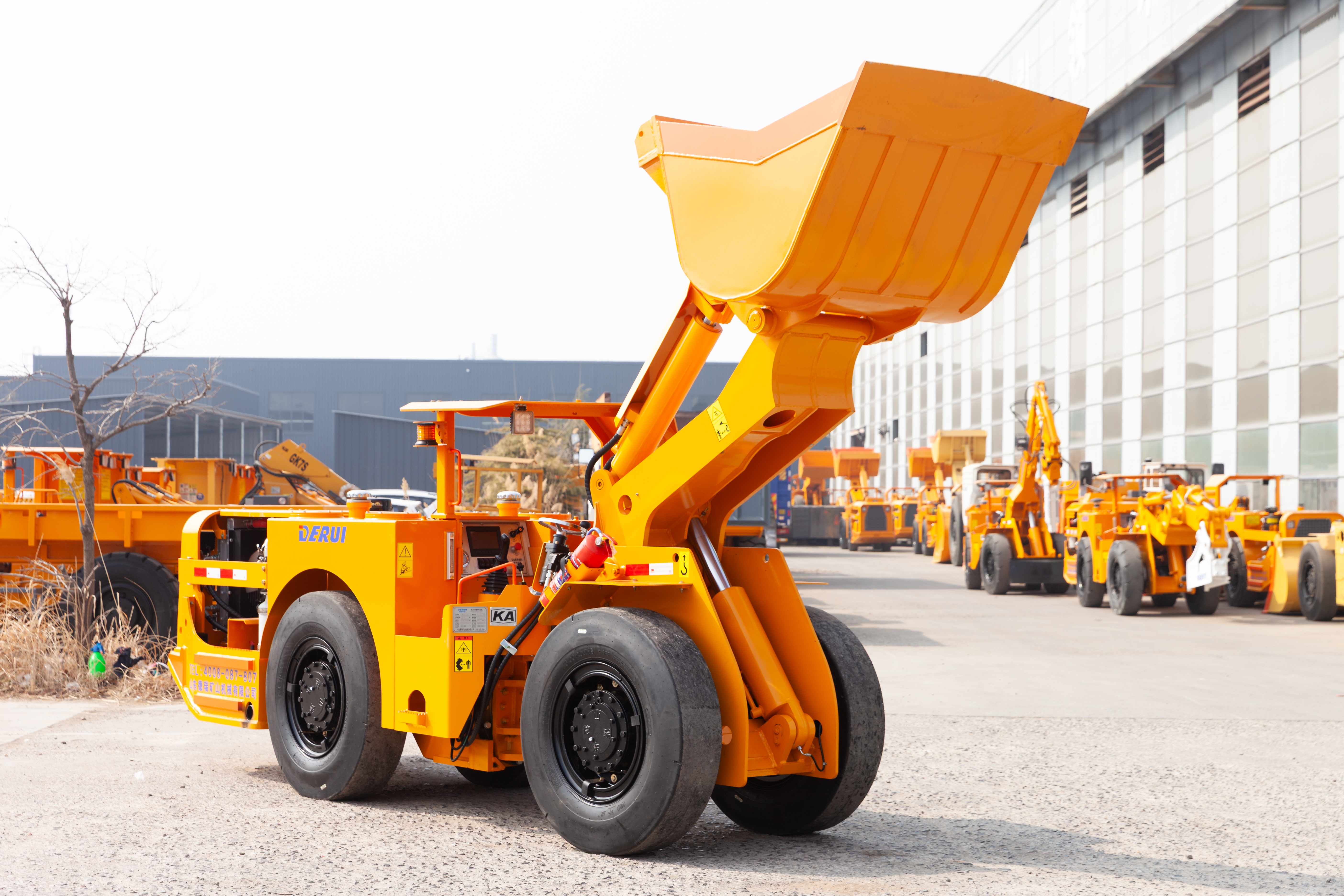

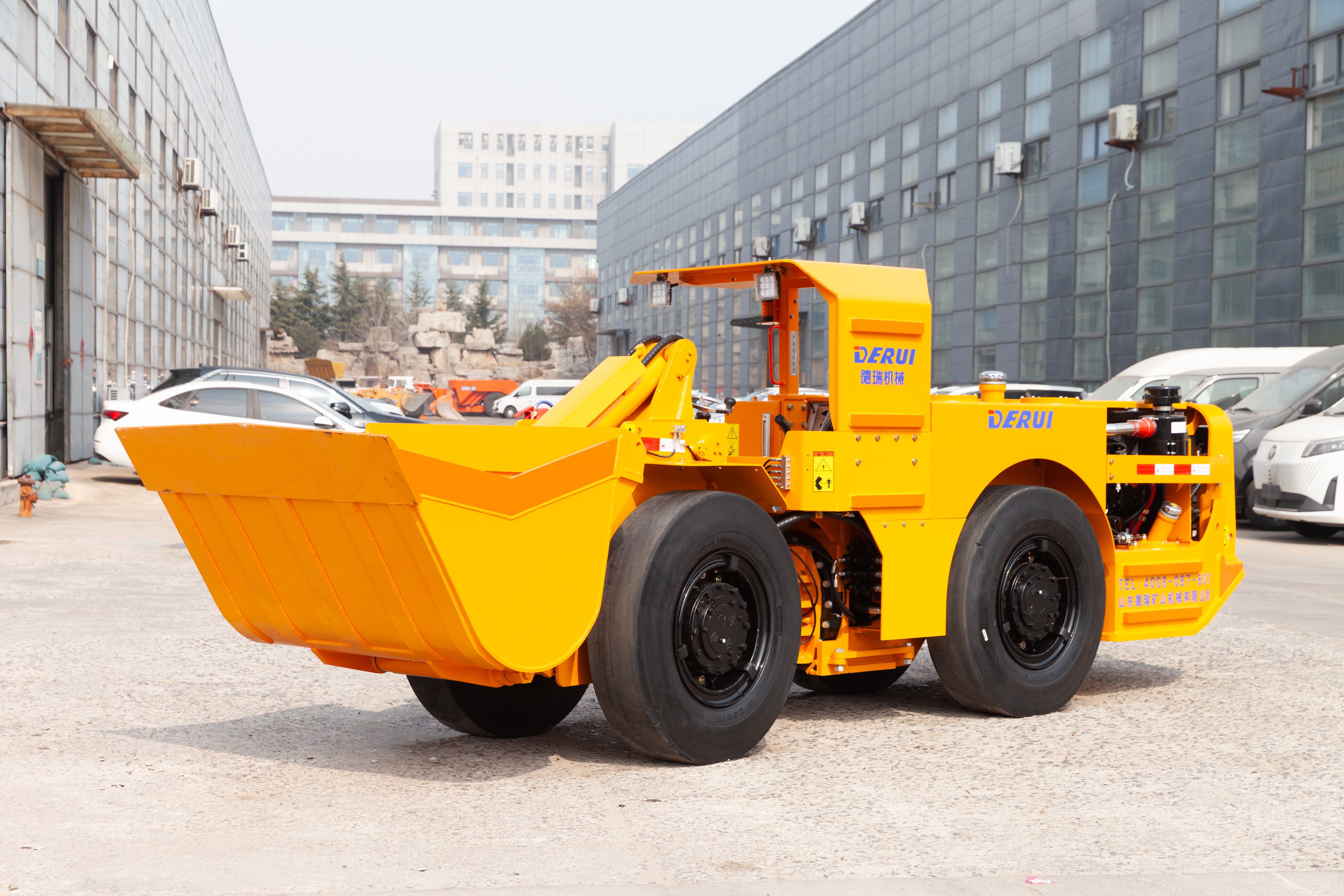

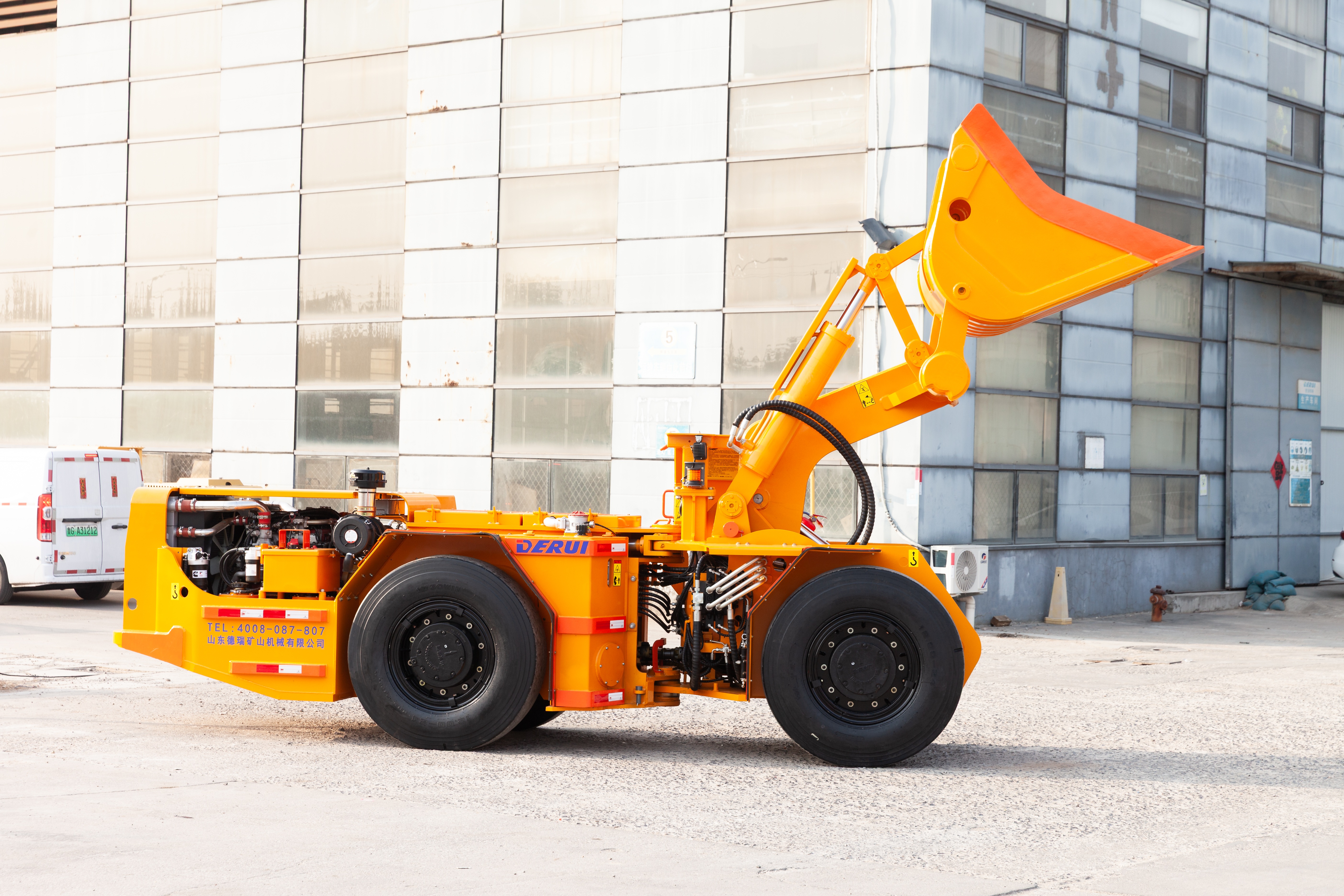

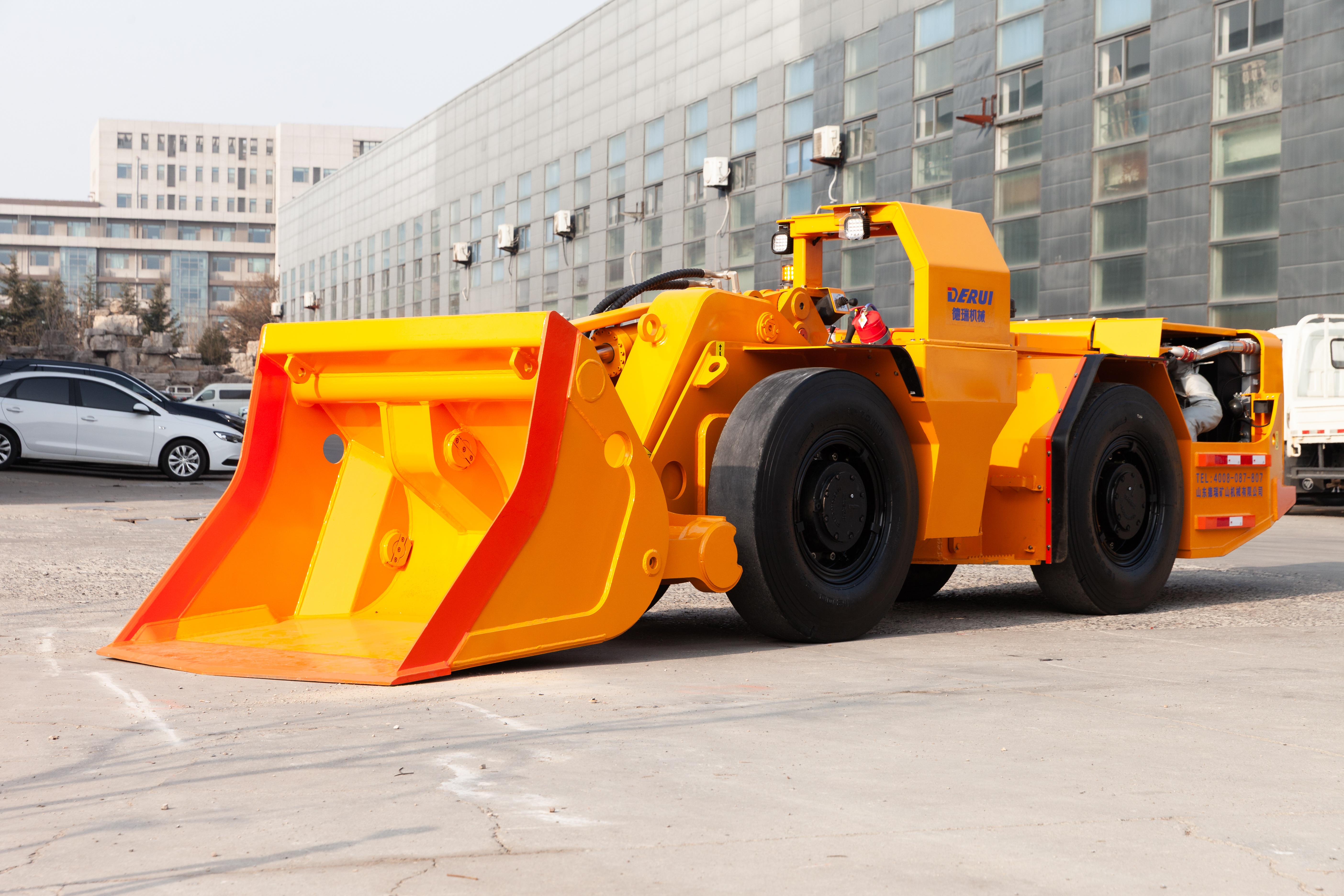

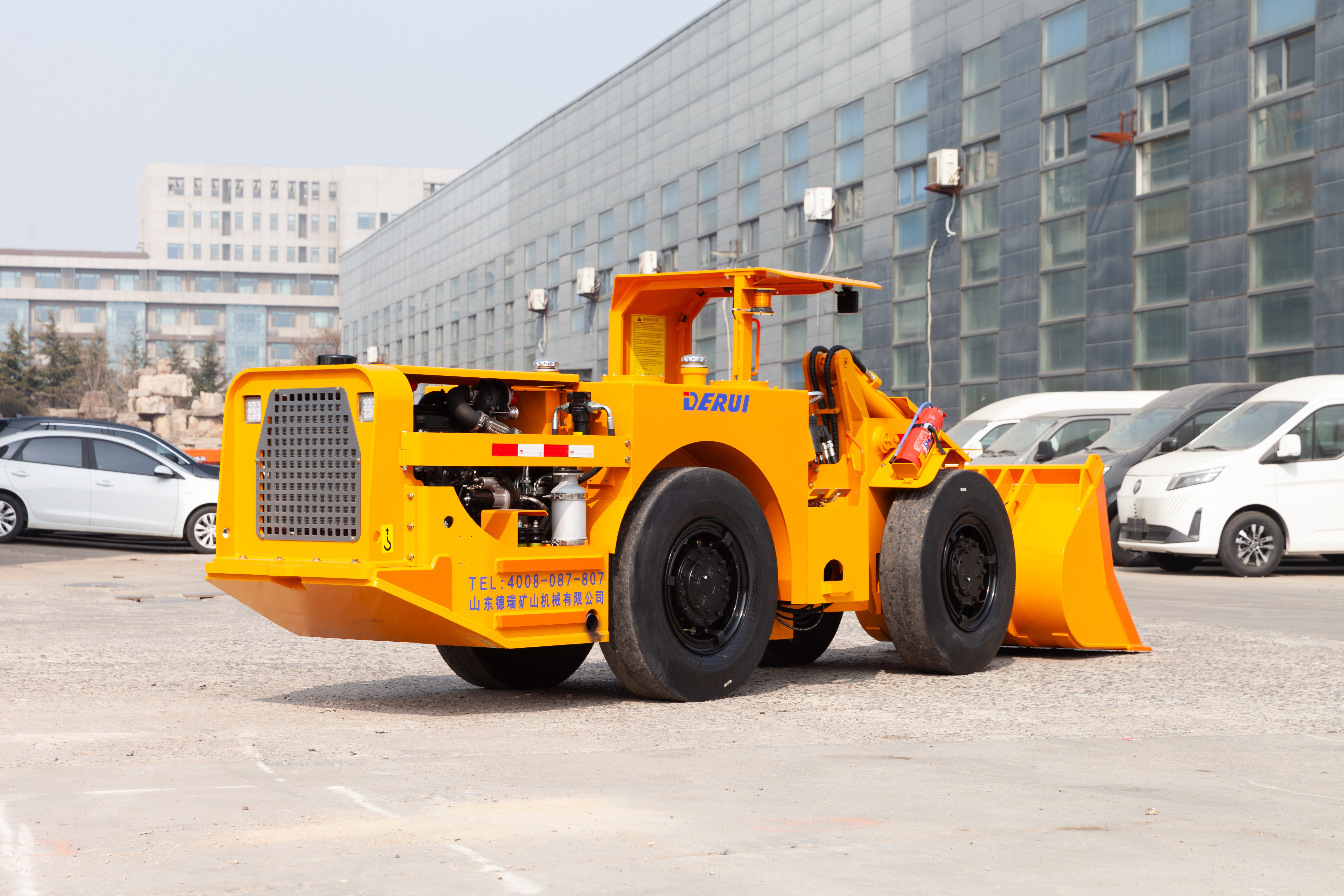

DRWJ-1 Underground Diesel LHD Loader

For small to medium-sized mining sites, this is the best option.
Small-scale underground mining operations can benefit greatly from the DRWJ 1 Underground Diesel LHD Loader, a diesel-powered load-haul-dump device with a payload capacity of less than two tons. The spatial limitations of small mine tunnels are addressed by its compact design. With a Sauer hydraulic system arrangement and the most recent 90 Series variable displacement pumps and hydraulic motors from Sauer Danfoss, the loader guarantees a longer vehicle and axle life while greatly increasing ore-handling efficiency.

product details

description1

PRODUCT SPECIFICATIONS

Tramming Capacity(Rated load Capacity)	2 Ton
Standard Bucket Volume	1.0m³
Approximate Weight	7,250 KG
Dimension(LxWxH)	5,8801,3802,000 mm
Engine Power	58-66 KW

Base Model Configuration

Standard features include a centralized lubrication system and Danfoss hydraulic pumps.Impact resistance is greatly increased with a heavy-duty reinforced frame.Lightweight and agile operation is made possible by full hydraulic steering and integrated pilot control.

Tailored Product Configurations

There are five engine options that can be configured.Automatic fire suppression systems, video remote controls, harmful gas monitoring, warning lights and backup buzzers, and engine stop switches are examples of optional setups.

Technical Parameters

Main Technical Parameters of the Complete Machine

Engine

Hydraulic System

Working Steering Pump(Gear Pump)

√

Multi-way Directional Control Valve

√
Transmission

Travel Pump

√

Travel Motor

√

Transfer Case

√

Drive Axle(Danfoss T90)

√

Tube tyres design for underground mine service

√

No.	Parameter Description		Value
1	Bucket Capacity (m³)		1
2	Rated Payload (kg)		2,000
3	Operating Weight, Empty (kg)		7, 150
4	Max. Digging Force (kN)		≥48
5	Max. Dump Height (mm)		≥58
6	Transport Dimensions (L×W×H) (mm)		6200×1300×2000
7	Min. Ground Clearance (mm)		220
8	Max. Dump Clearance Height (mm)		3,600
9	Max. Dump Height (mm)		1,600
10	Min. Dump Reach (mm)		740
11	Steering Angle ( ° )		38
12	Dump Angle ( ° )		44
13	Departure Angle ( ° )		≥16
14	Frame Oscillation Angle ( ° )		±6~±8
15	Max. Gradability (Loaded) ( ° )		≥14
16	Min. Turning Radius (Outside) (mm)		,450
17	Min. Turning Radius (Inside) (mm)		2,480
18	Travel Speed(km/h)	Forward	9±0.5
		Reverse	9±0.5

Working Steering Pump(Gear Pump)	√
Multi-way Directional Control Valve	√

Travel Pump	√
Travel Motor	√
Transfer Case	√
Drive Axle(Danfoss T90)	√
Tube tyres design for underground mine service	√
