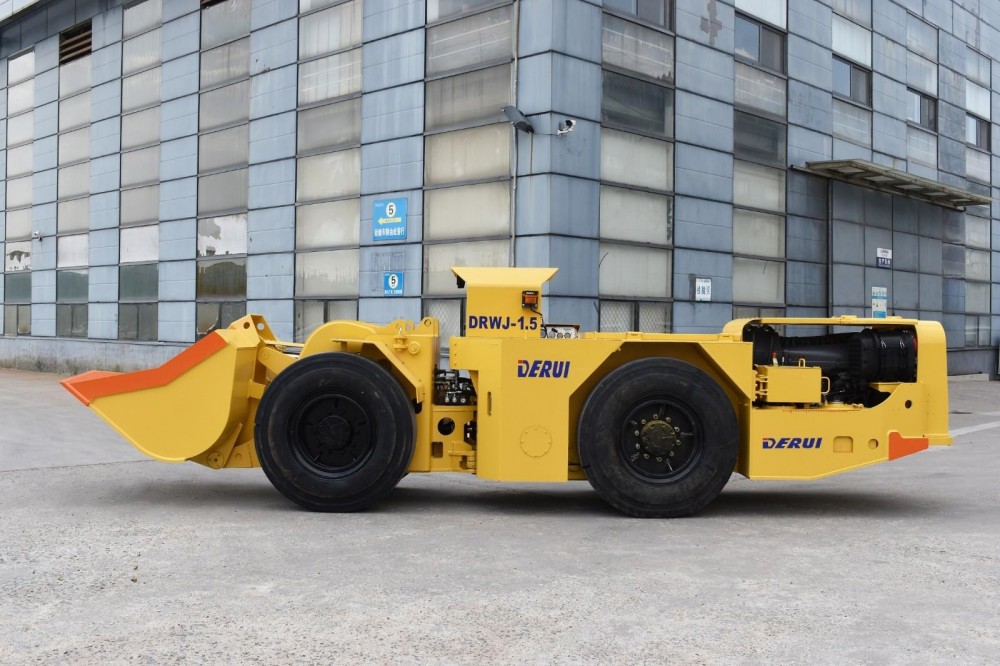

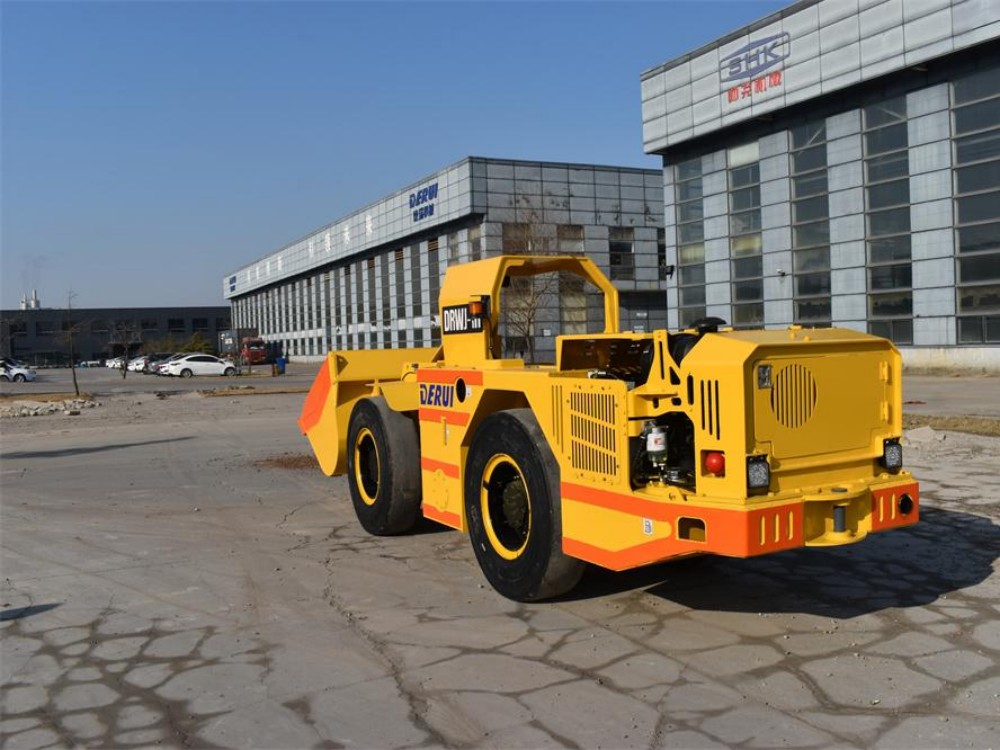

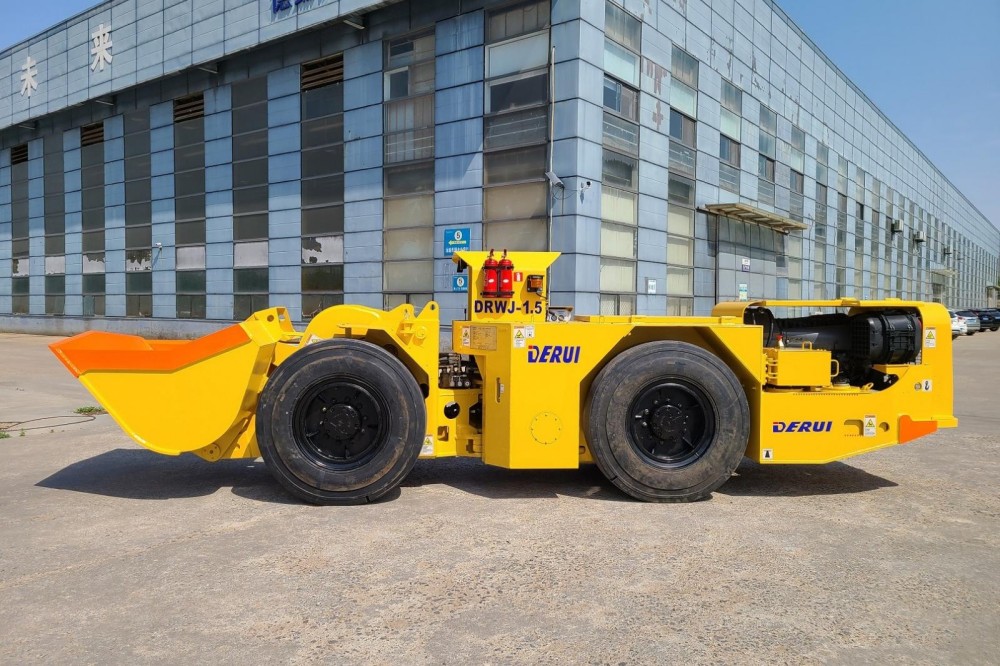

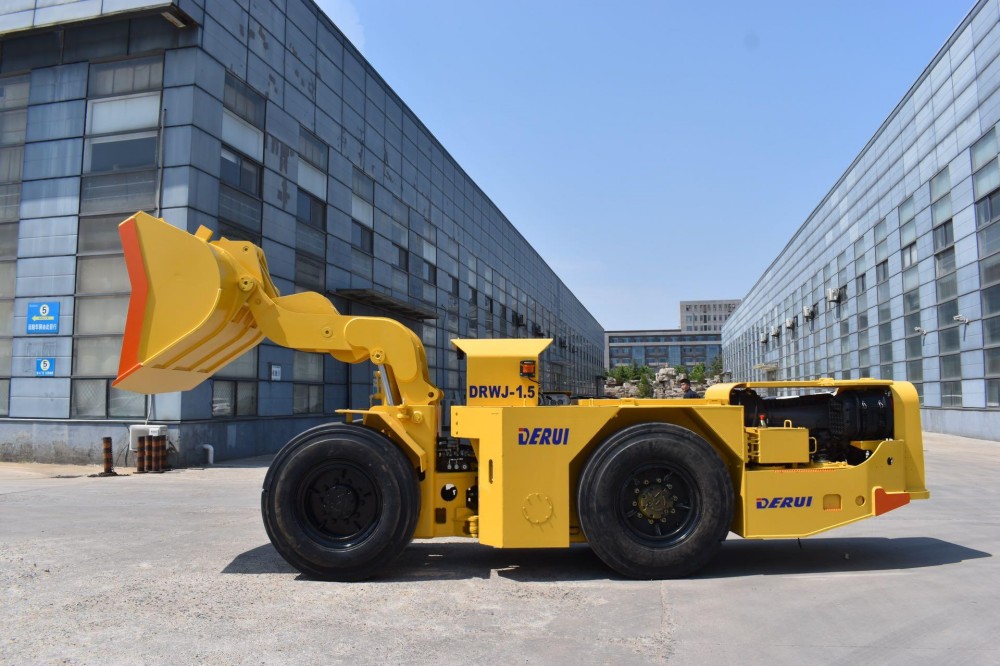

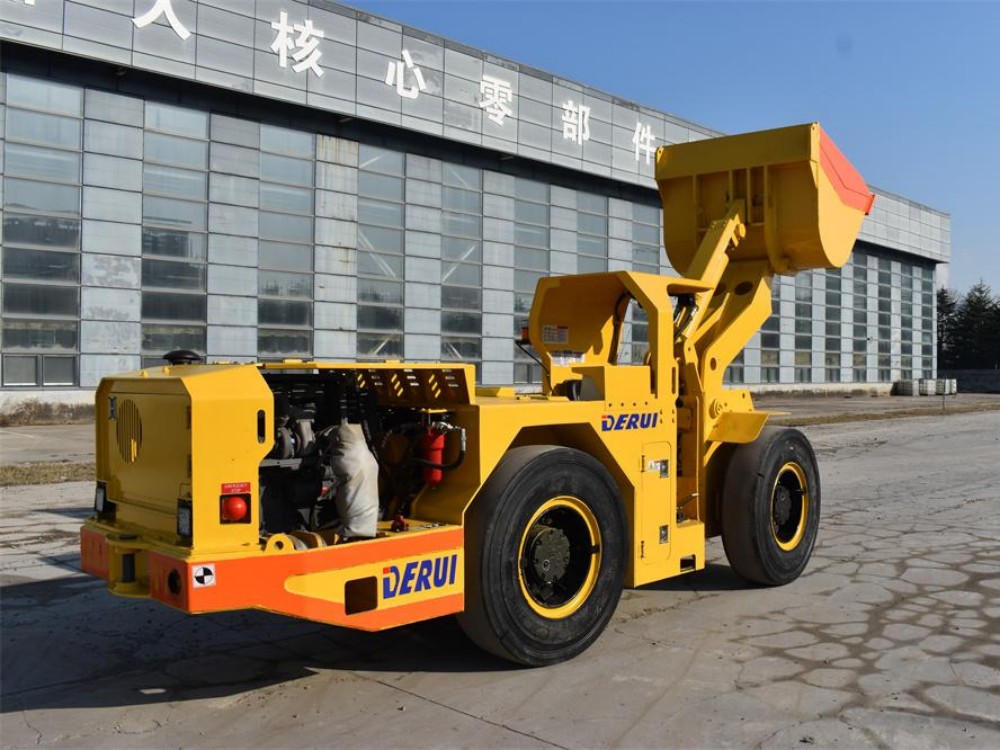

DRWJ-1.5 Underground Diesel LHD Loader

The DRWJ-1.5 Underground Diesel LHD Loader is a diesel-powered load-haul-dump machine with a payload capacity under 3 tons, making it particularly suitable for small-scale underground mining operations. Its compact dimensions and small turning radius allow it to maneuver efficiently in narrow tunnels. Designed to operate effectively at high altitudes, the DRWJ-1.5 delivers outstanding performance that significantly enhances ore-handling productivity.

product details

description1

PRODUCT SPECIFICATIONS

Tramming Capacity(Rated load Capacity)	3.3 Ton

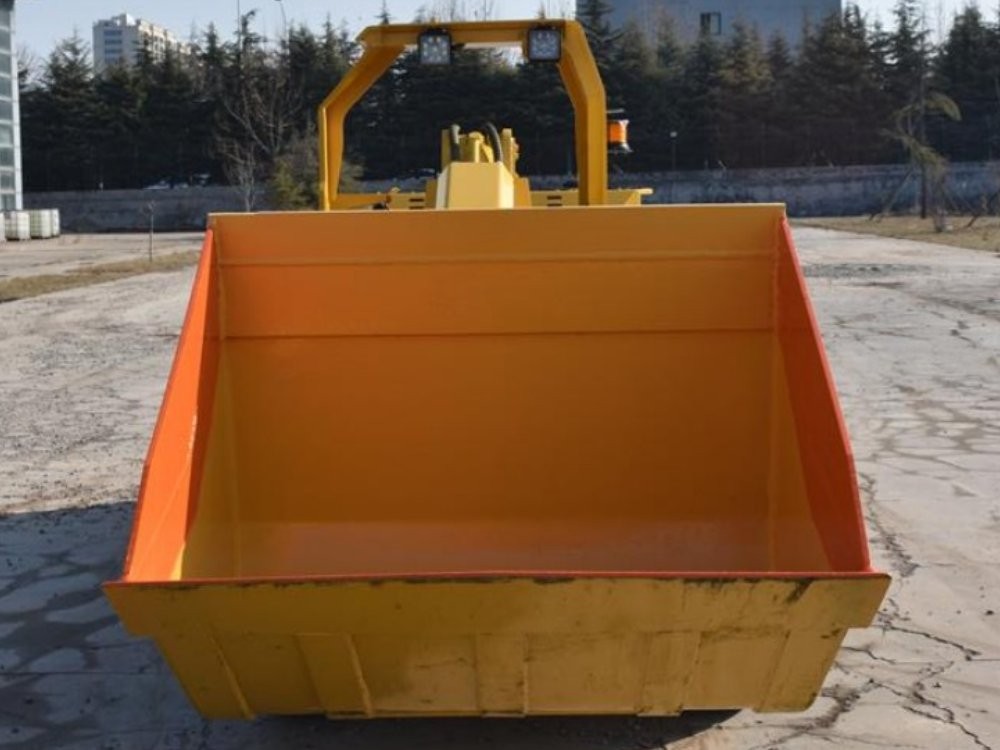

Standard Bucket Volume	1.5m³
Approximate Weight	10,300 KG
Dimension(LxWxH)	7087×1720×2050 mm
Engine Power	84-112 KW

Base Model Configuration

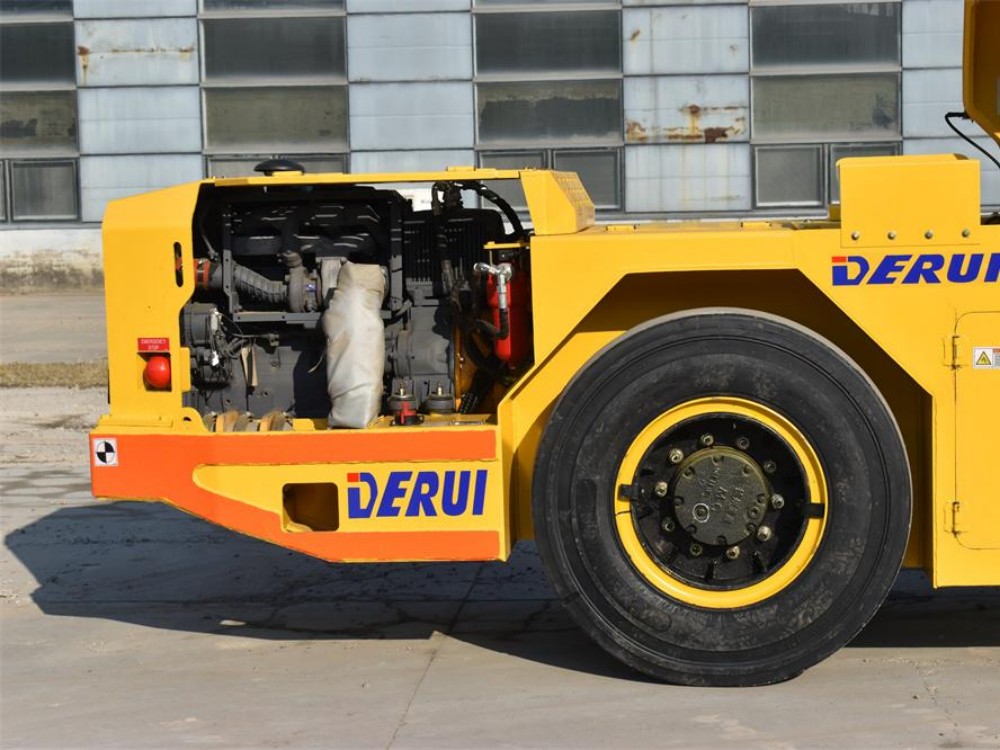

The DRWJ-1.5 is equipped with a powerful Yuchai YC4AT125-300 engine. It features a reinforced drive axle that is rugged, durable, and highly impact-resistant, reducing failure rates. The drive axle adopts a closed-center wet-brake design with spring-applied, hydraulically released brakes, enhancing both reliability and safety for complex underground road conditions and loading operations. The rear-axle oscillating frame design provides a more rational structure, delivering improved ride comfort and operational safety.

Technical Parameters

Main Technical Parameters of the Complete Machine

Engine

Brand/Mo del

Yuchai

YC4A125-T300

Rated

Power

92kW

Cooling

Method

Water cooling

Hydraulic System

Transmission

Products details

01020304

Main Technical Parameters of the Complete Machine
No.	Parameter Description		Value
1	Bucket Capacity (m³)		1.5
2	Rated Payload (kg)		3,000
3	Operating Weight, Empty (kg)		11,400
4	Max. Digging Force (kN)		≥72
5	Max. Dump Height (mm)		≥86
6	Transport Dimensions (L×W×H) (mm)		7087×1720×2050
7	Min. Ground Clearance (mm)		218
8	Max. Dump Clearance Height (mm)		1,510
9	Max. Dump Height (mm)		1, 157
10	Min. Dump Reach (mm)		740
11	Steering Angle ( °)		38
12	Dump Angle ( ° )		38
13	Departure Angle ( ° )		≥14
14	Frame Oscillation Angle ( 。)		±8
15	Max. Gradability (Loaded) ( 。)		≥14
16	Min. Turning Radius (Outside) (mm)		4,817
17	Min. Turning Radius (Inside) (mm)		2,703
18	Travel Speed(km/h)	1gear	6.15
		2gear	10.15
		3gear	22.62

Hydraulic System	Brand
Working Pump(Gear Pump)	Wanye	√
Steering Pump(Gear Pump)	Wanye	√
Multi - way Control Valve	Youli	√
Steering Control Valve	Youli	√
Make - up Valve	Miyaco	√
Pedal - operated Valve	Miyaco	√

Transmission
Travel Pump	√
Travel Motor	√
Transfer Case	√
Drive Axle	√
Tube tyres design for underground mine service	√
