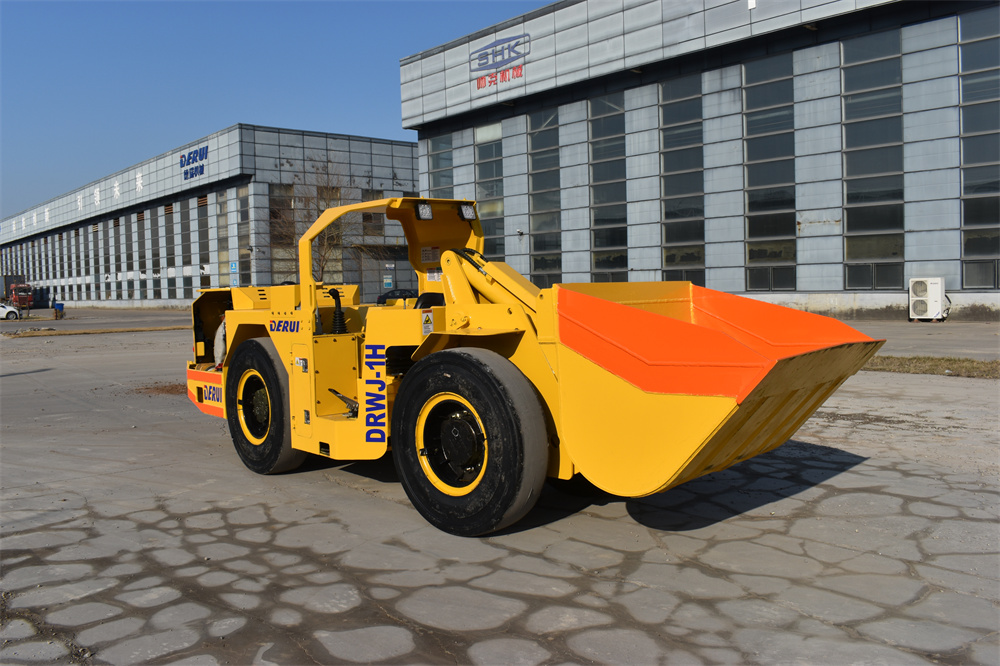

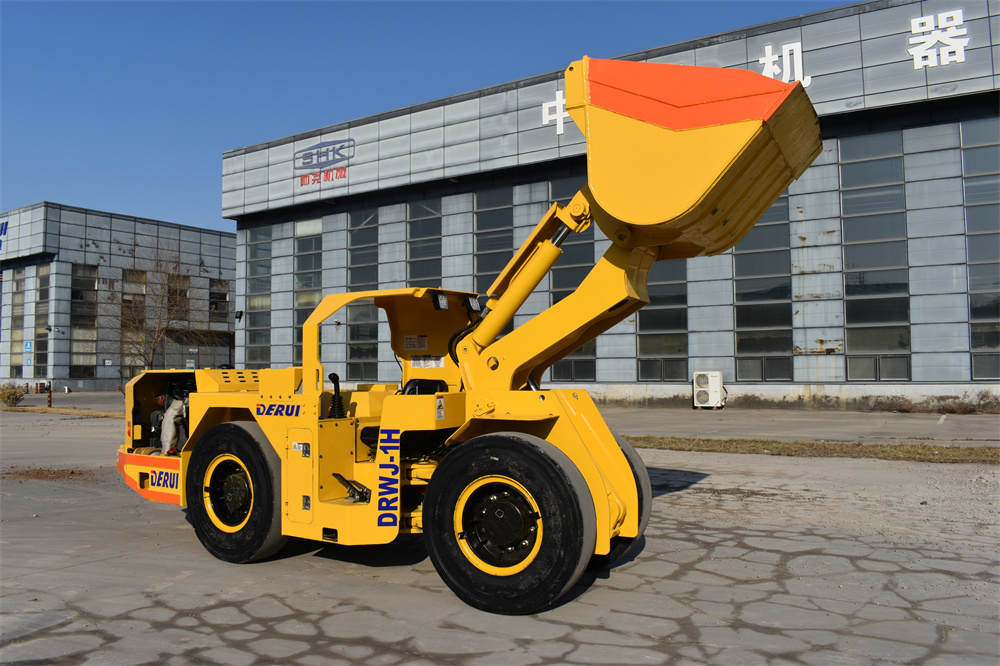

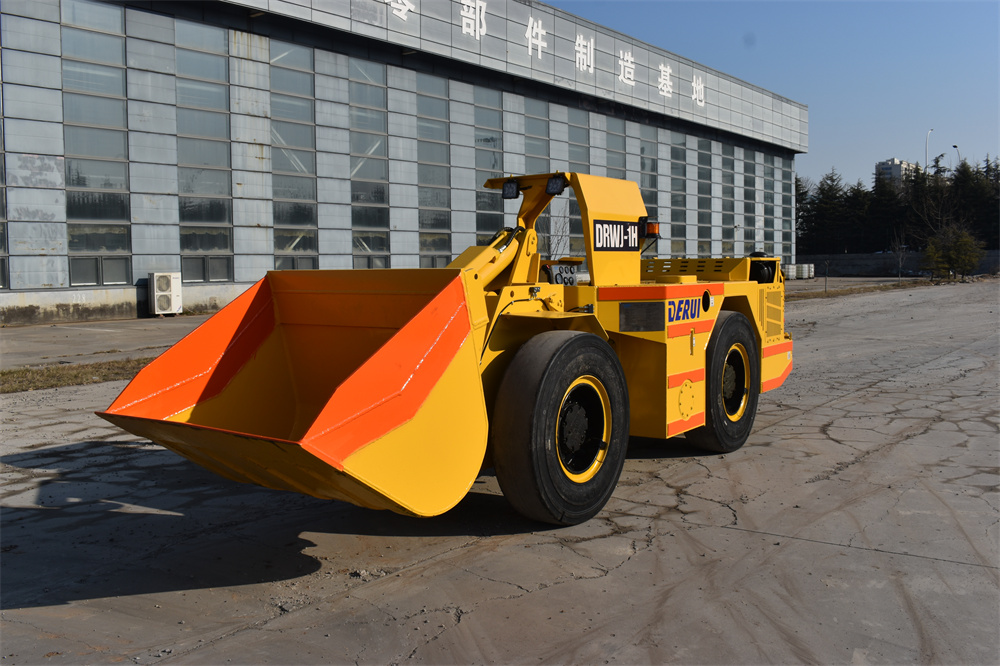

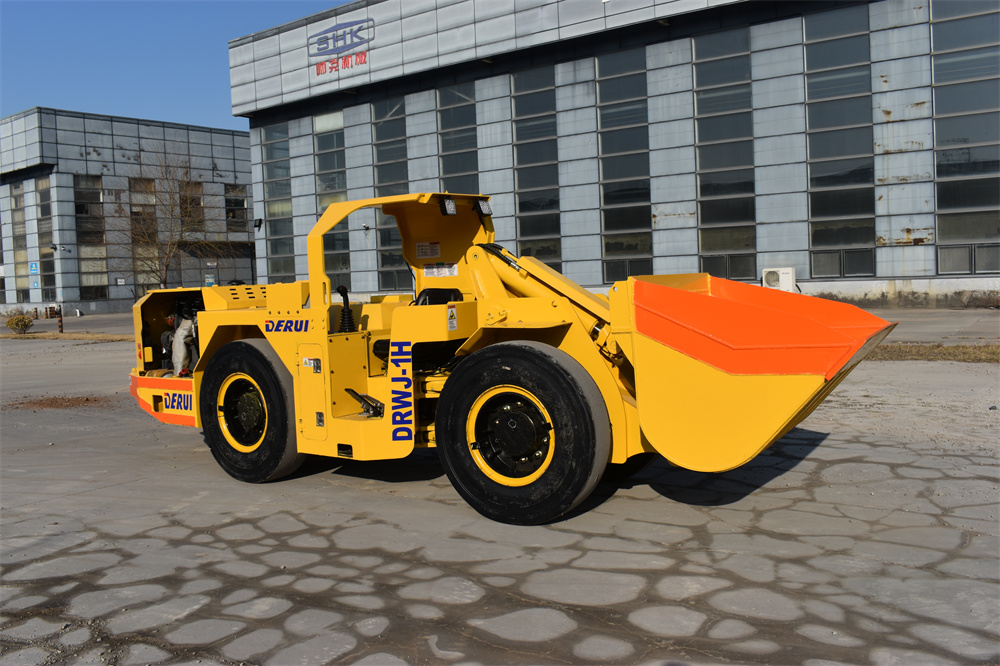

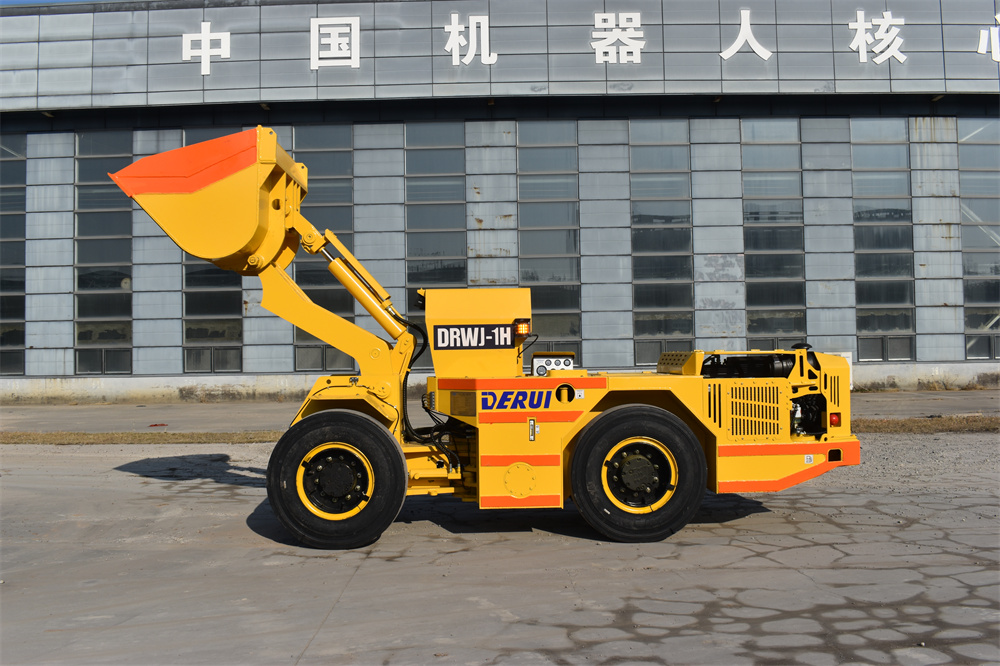

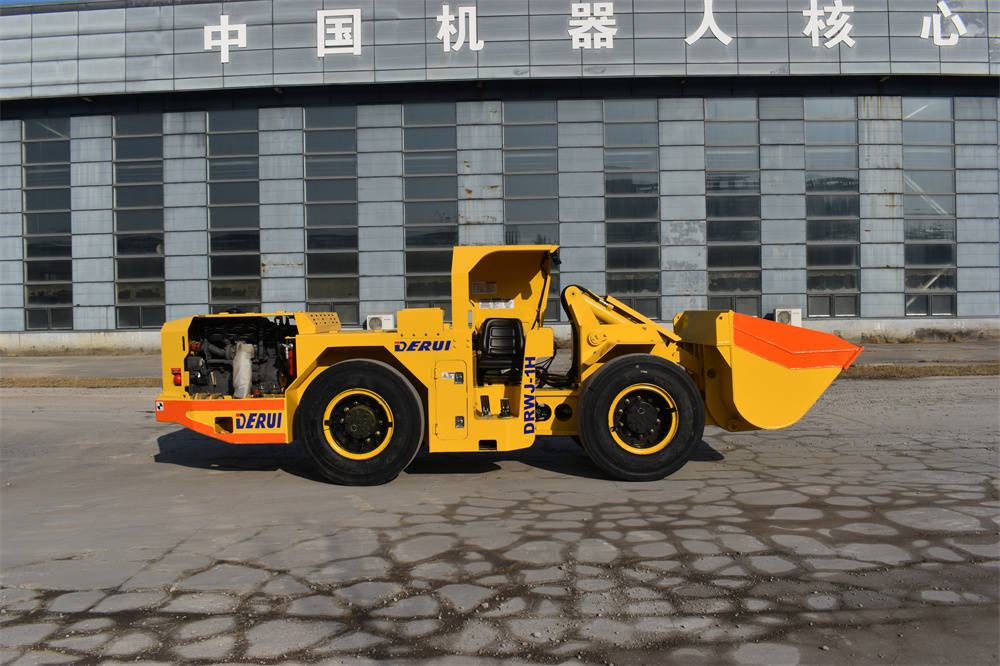

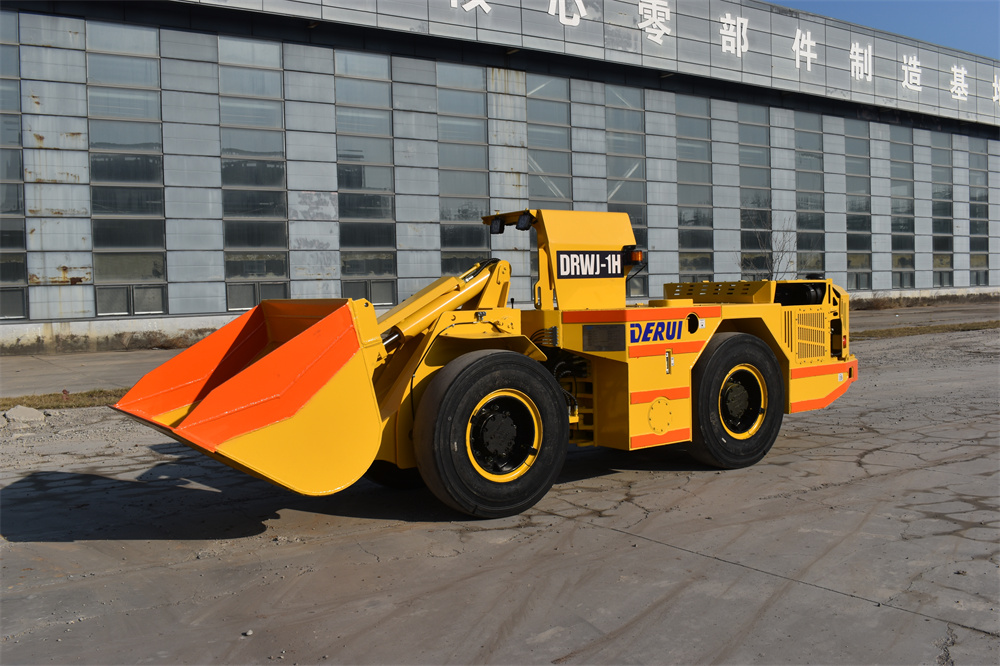

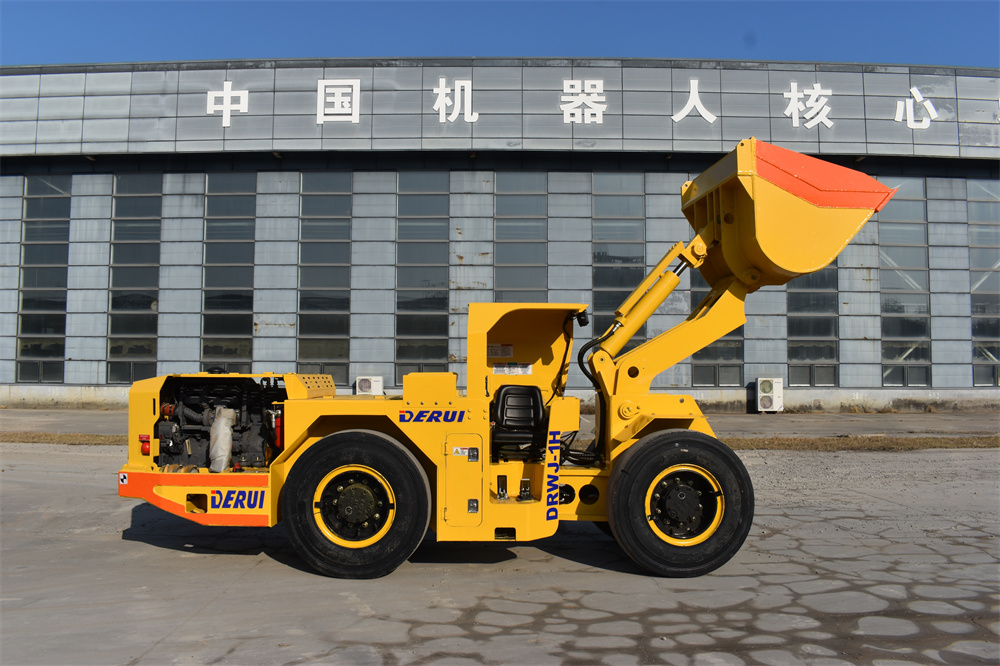

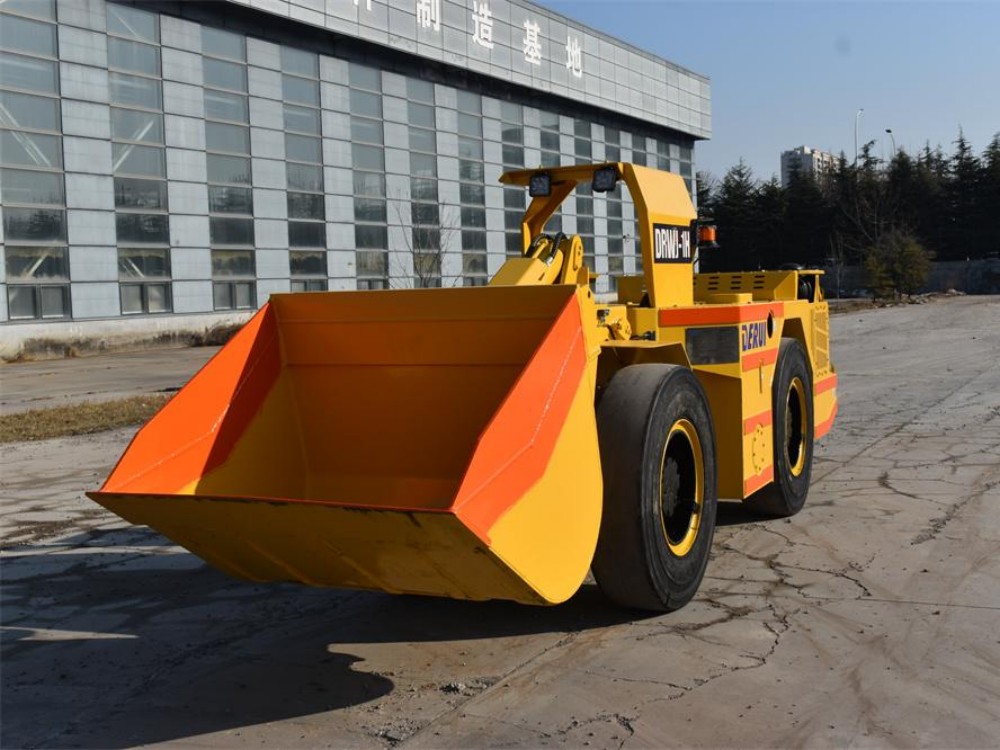

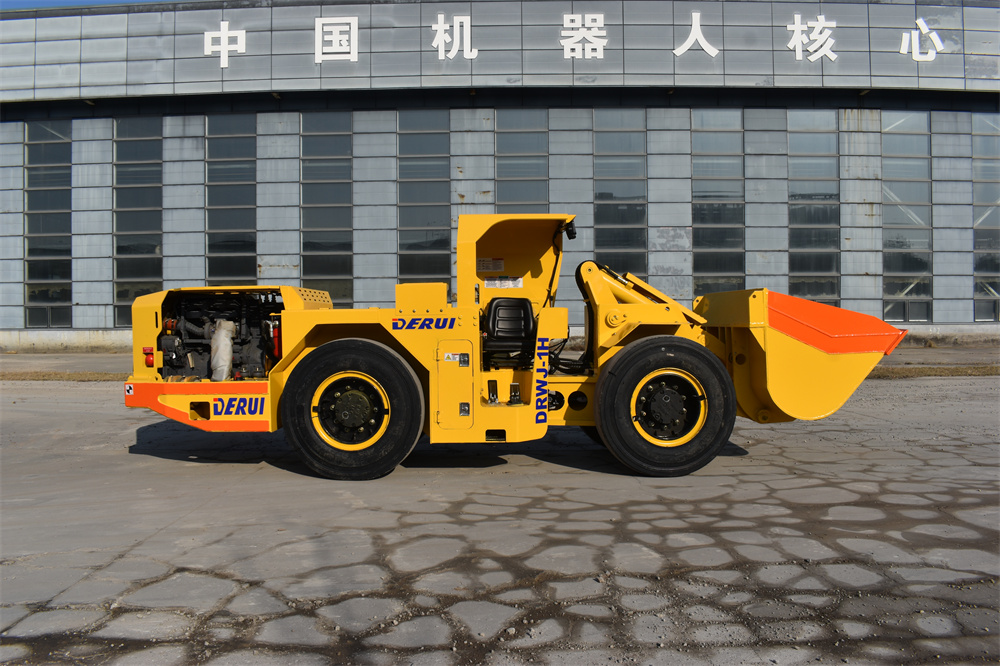

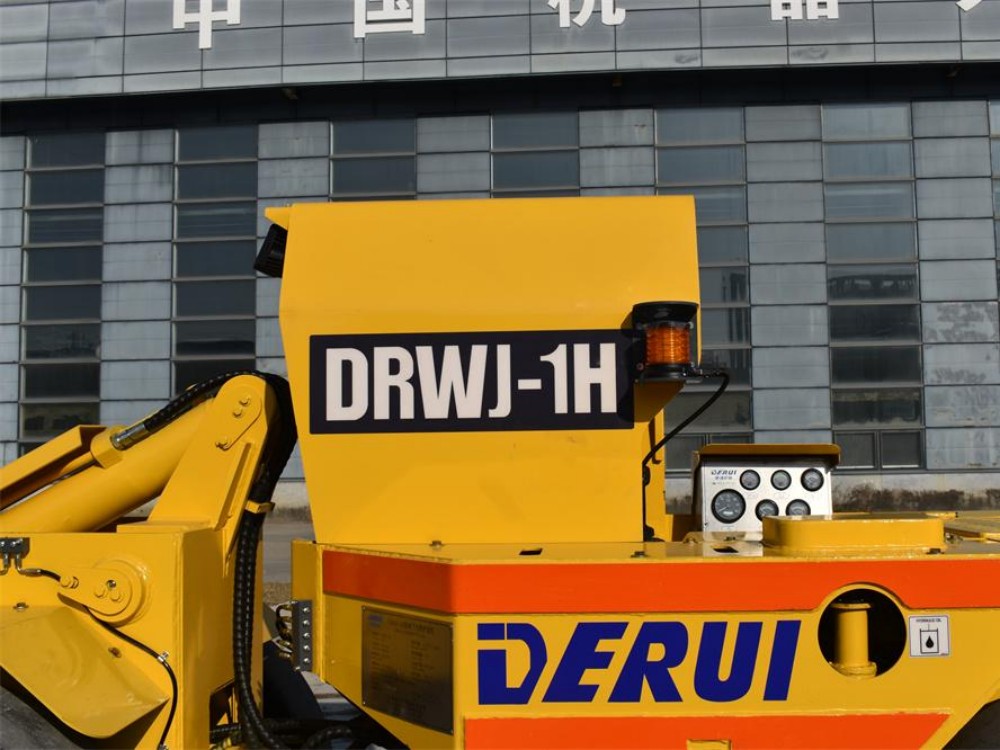

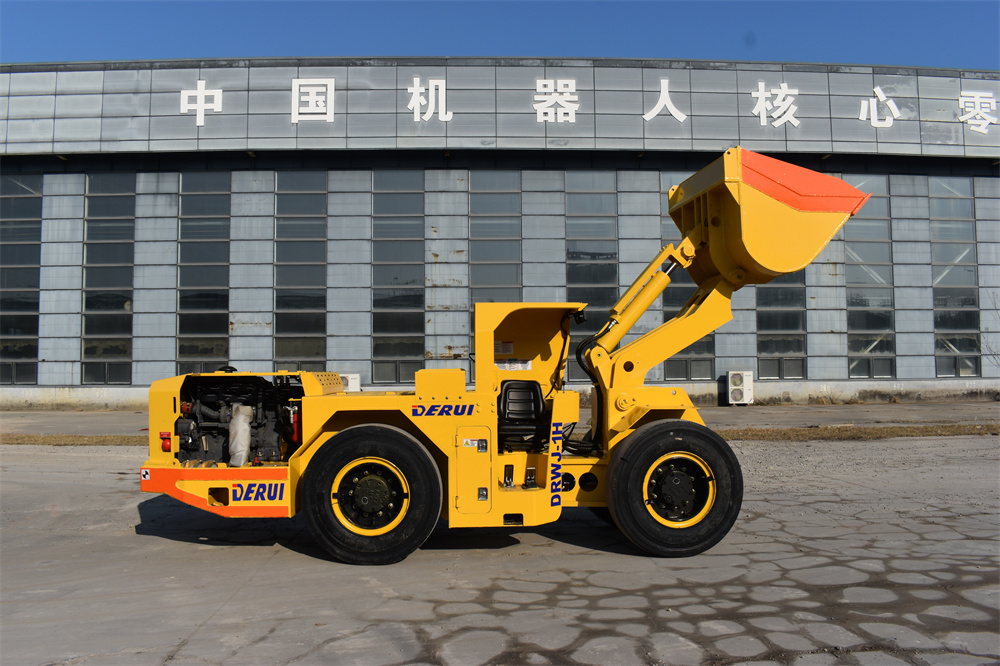

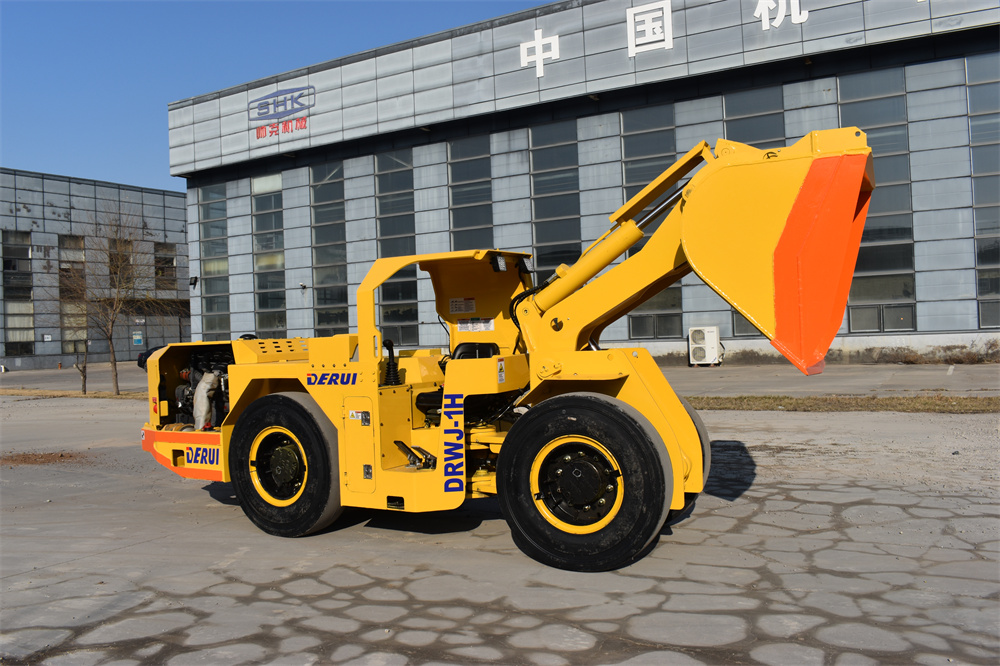

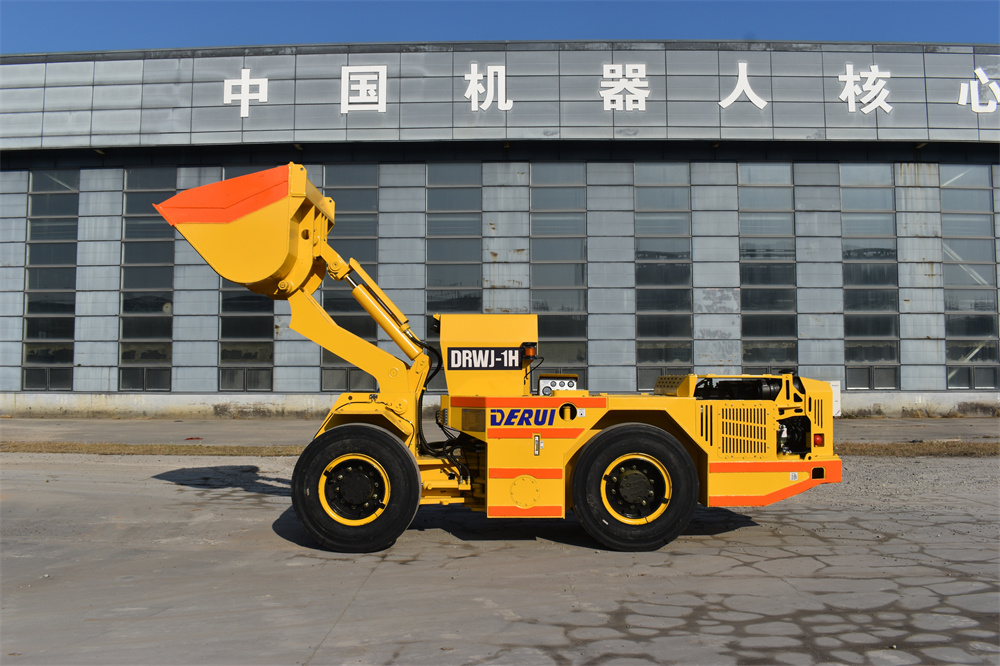

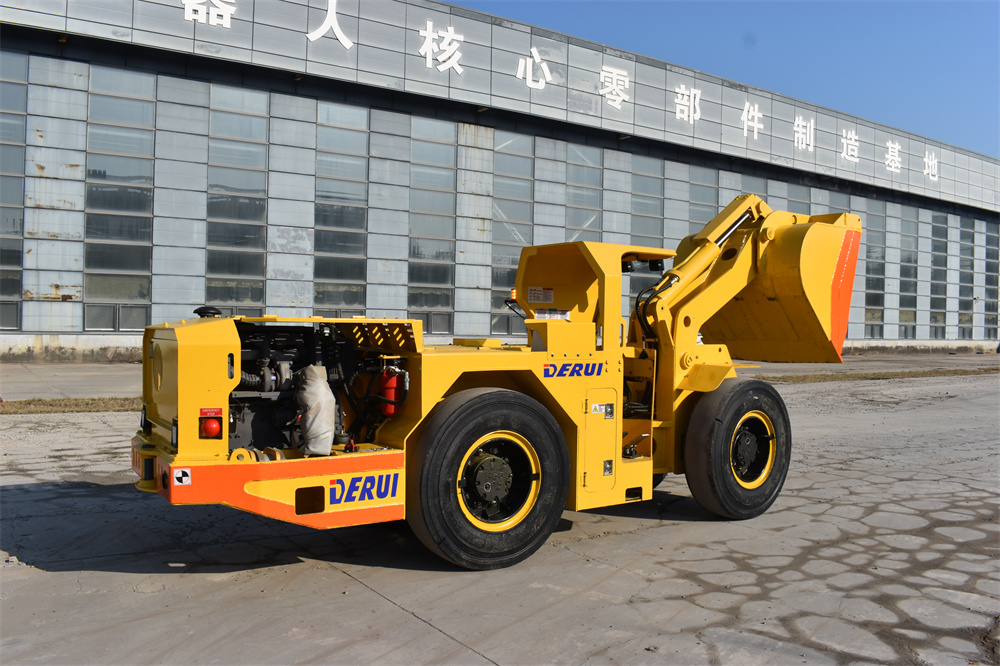

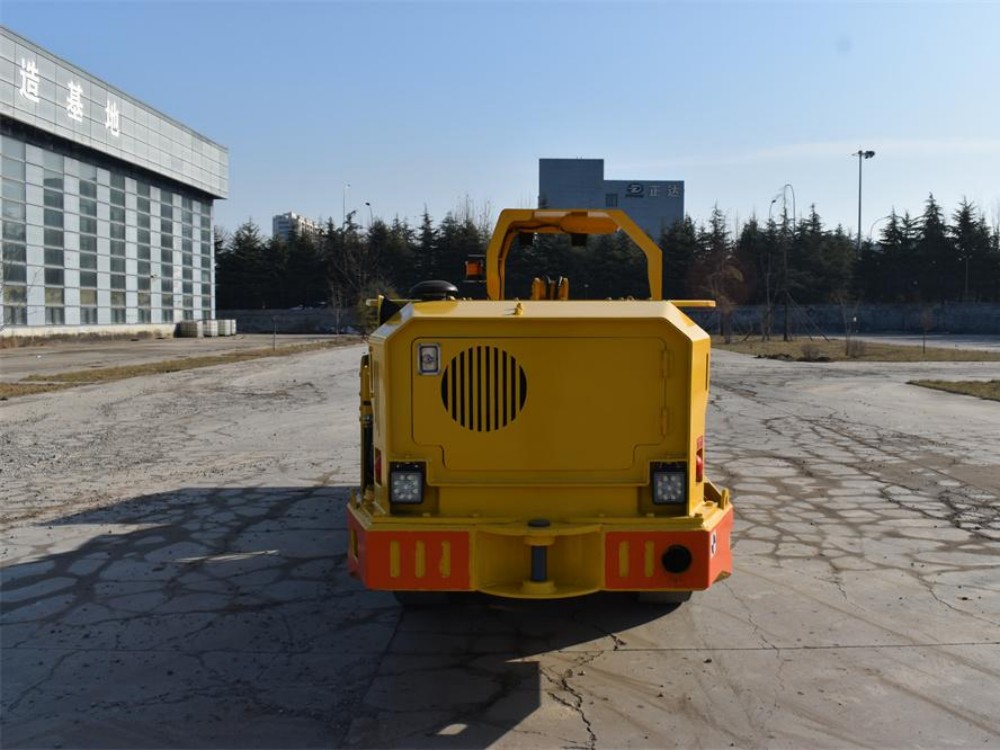

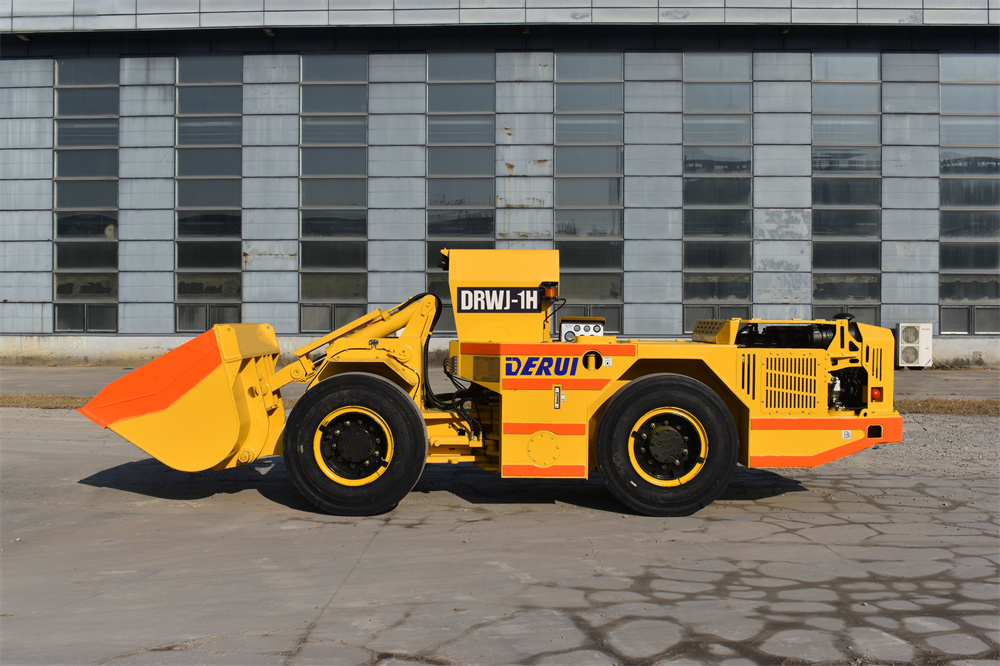

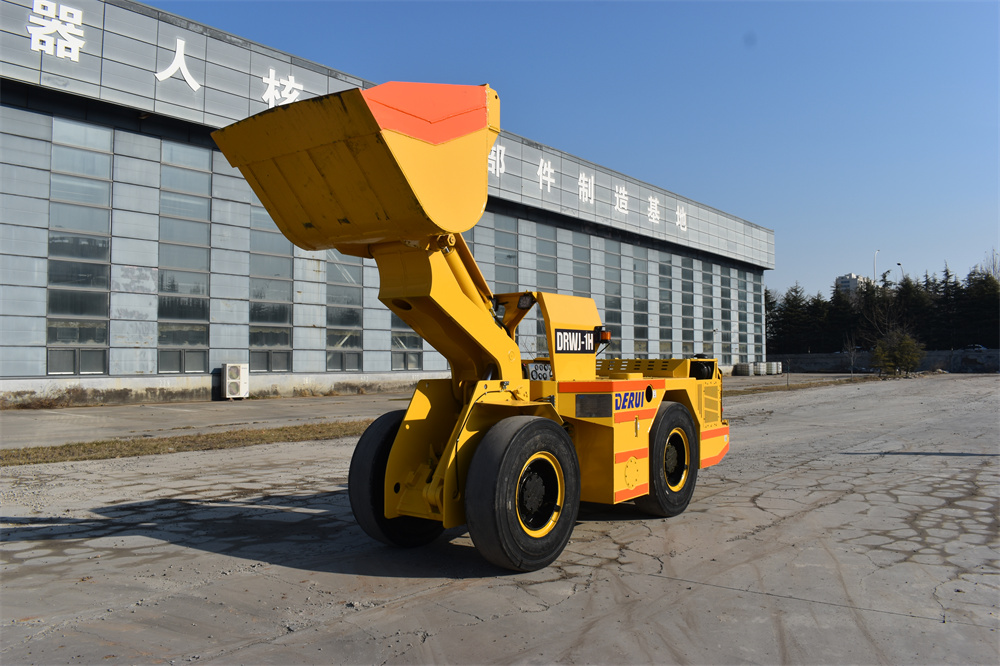

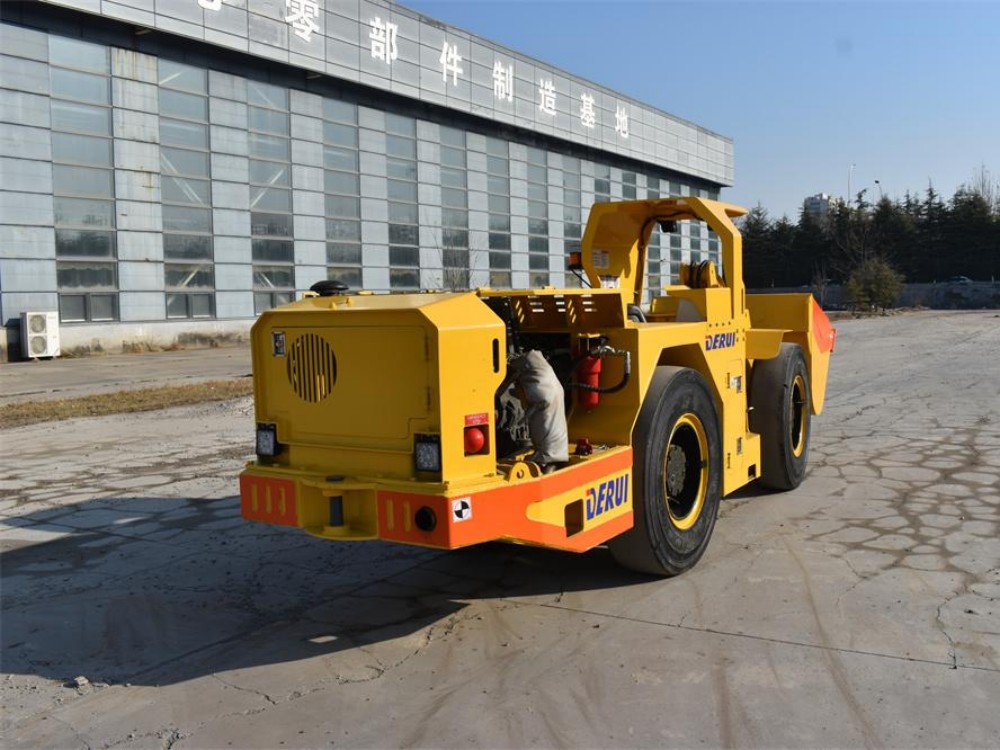

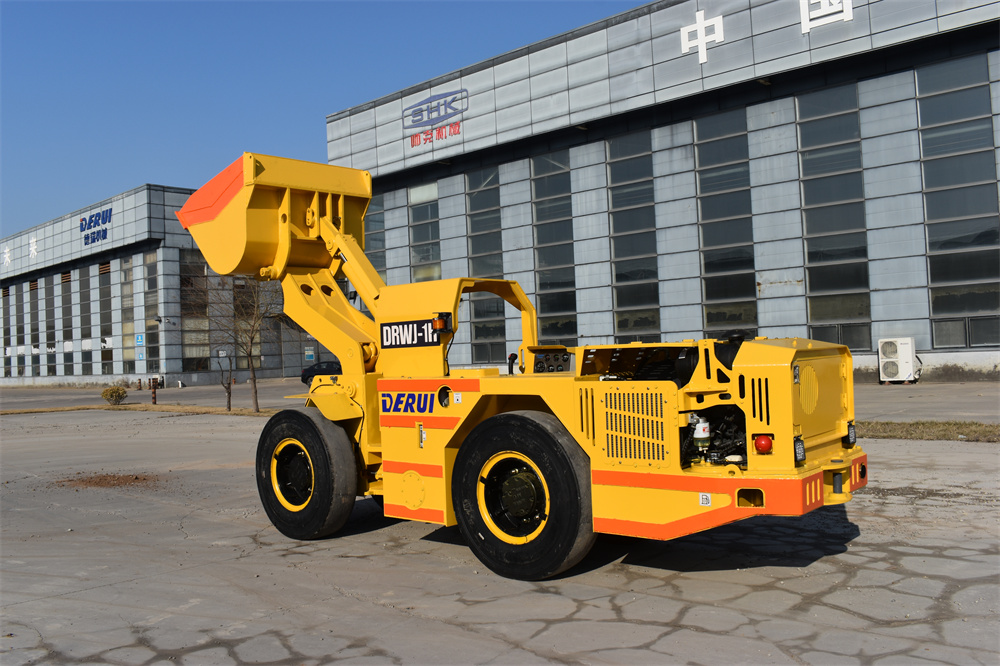

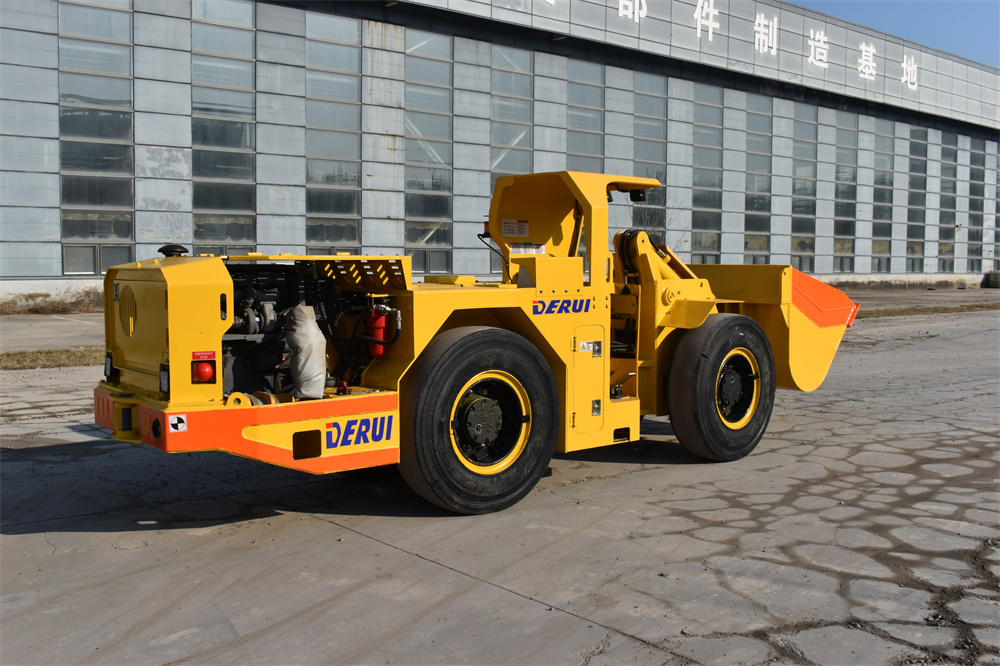

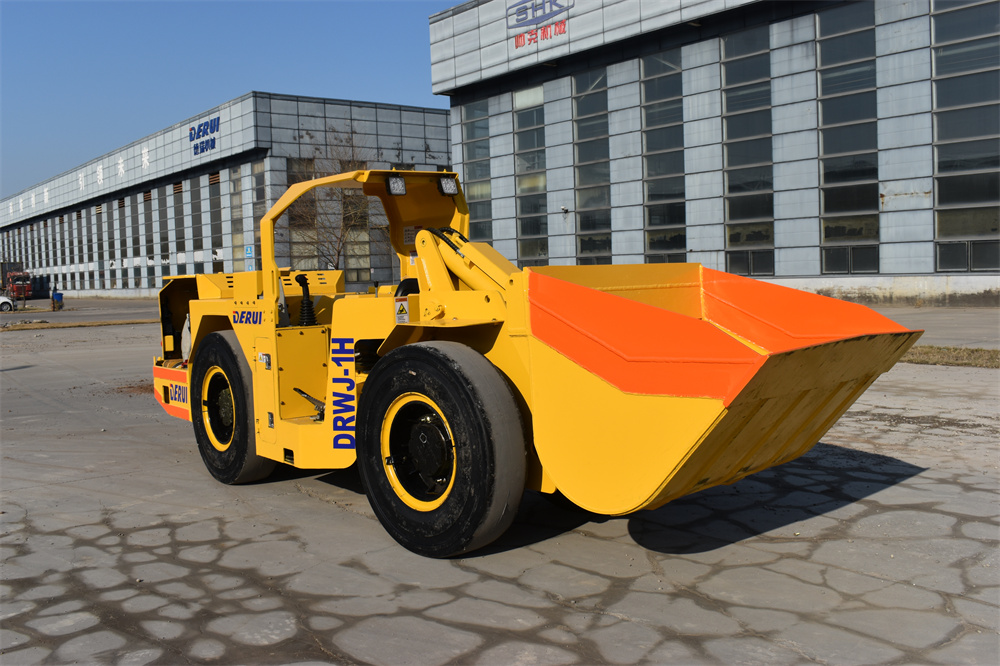

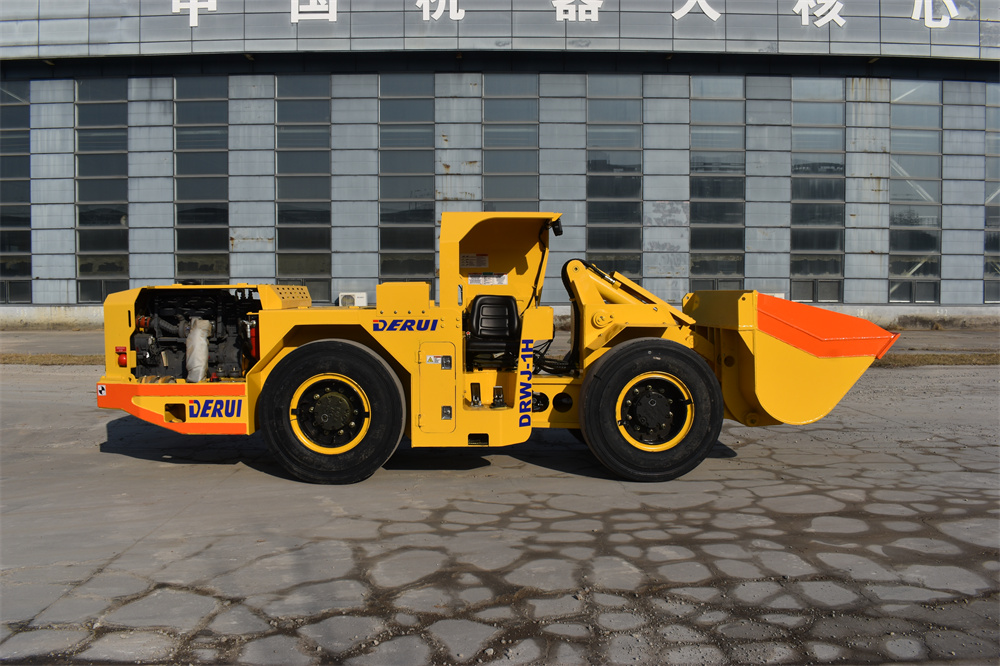

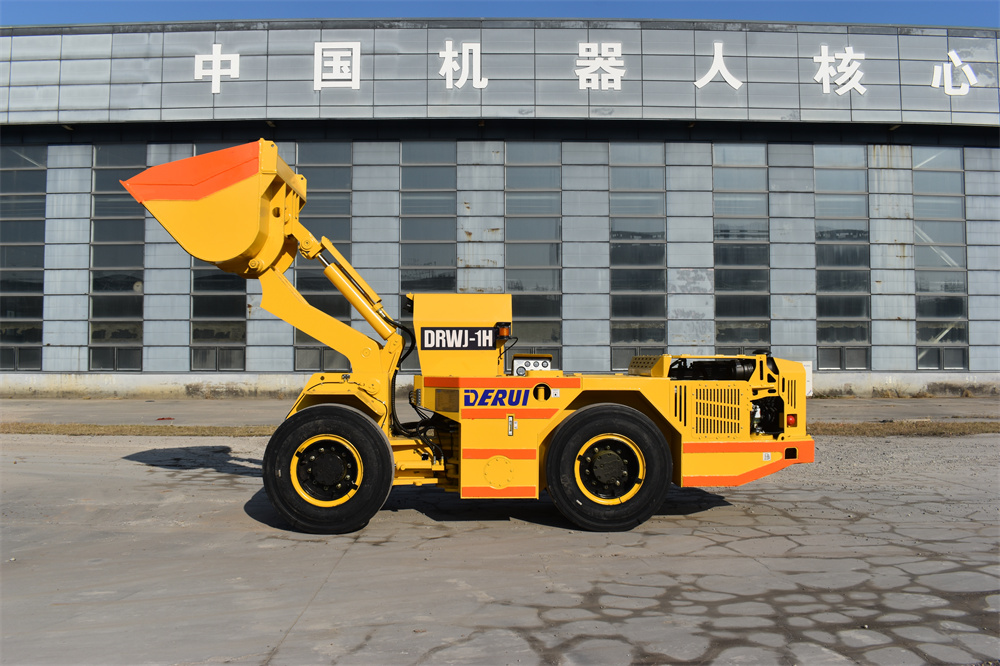

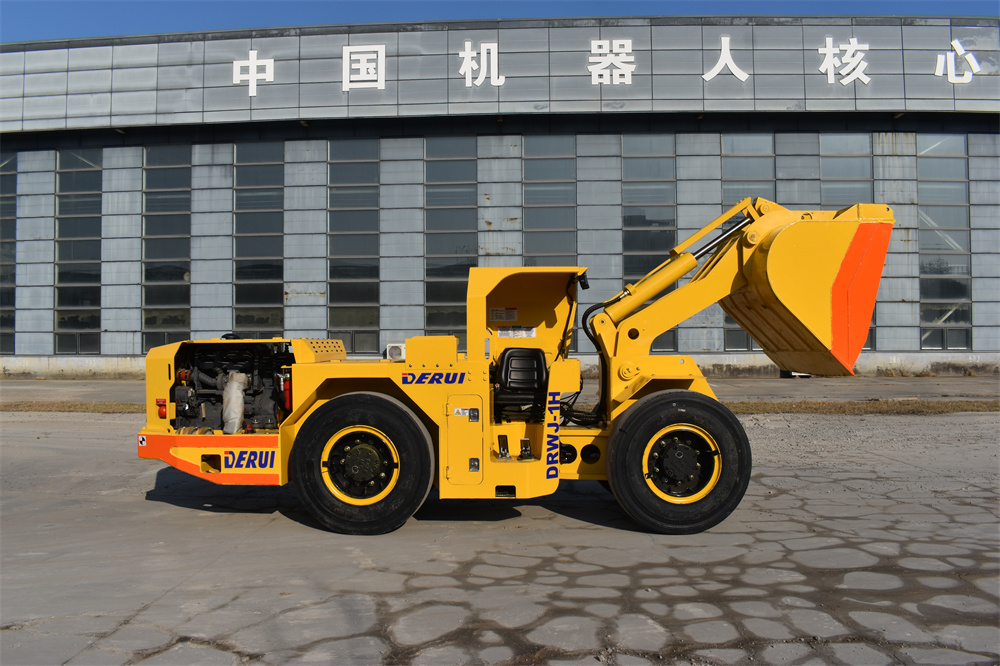

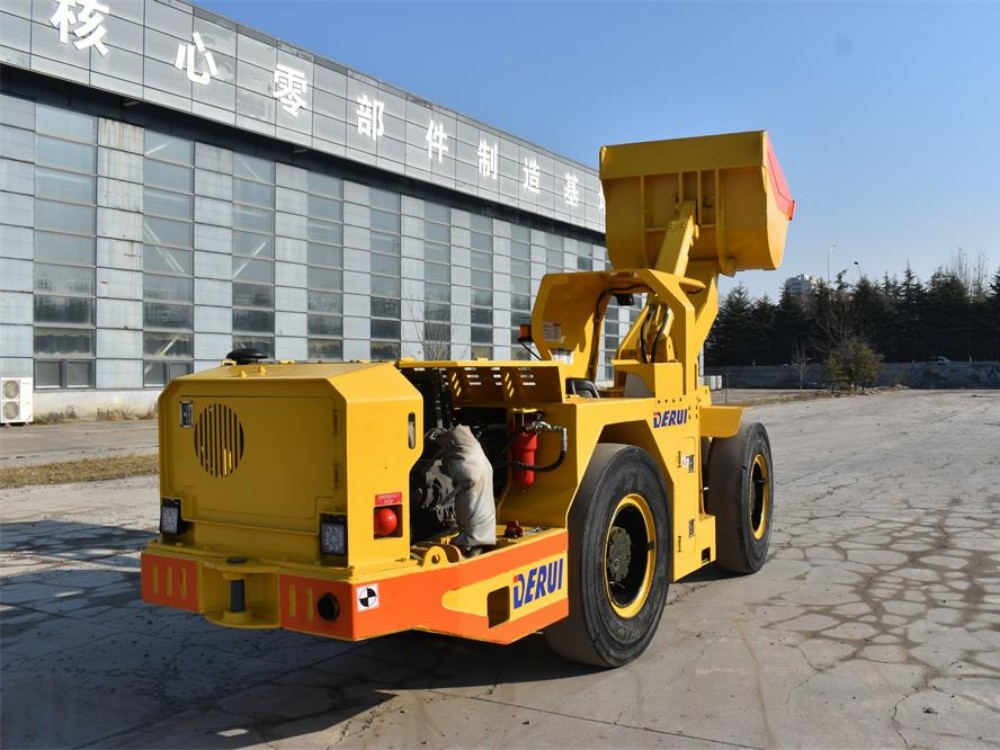

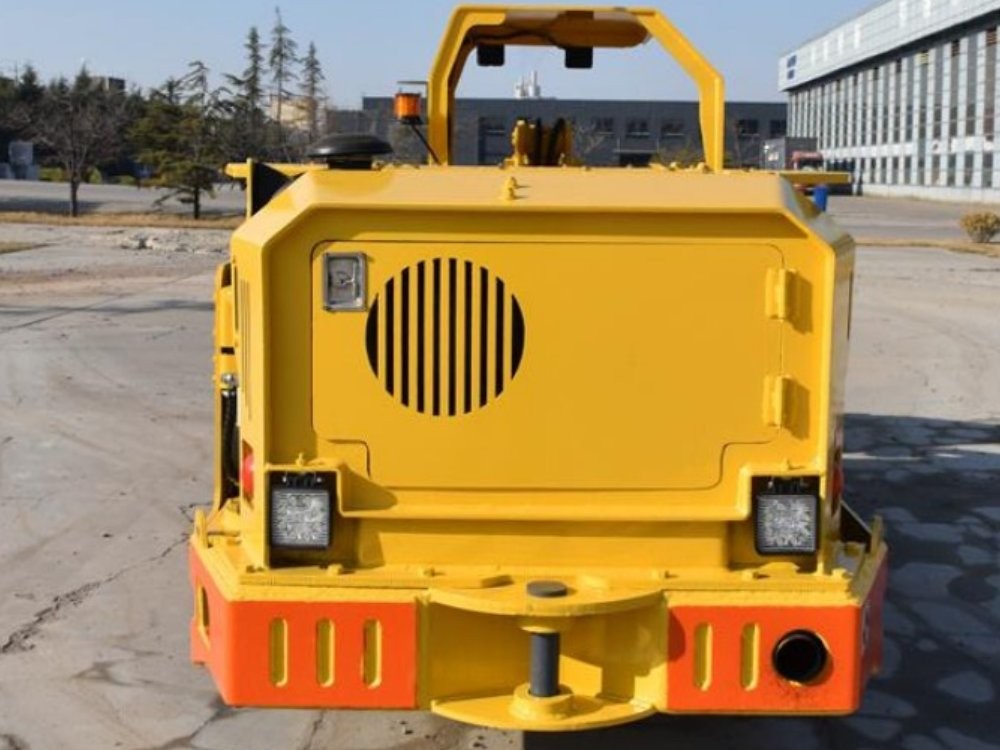

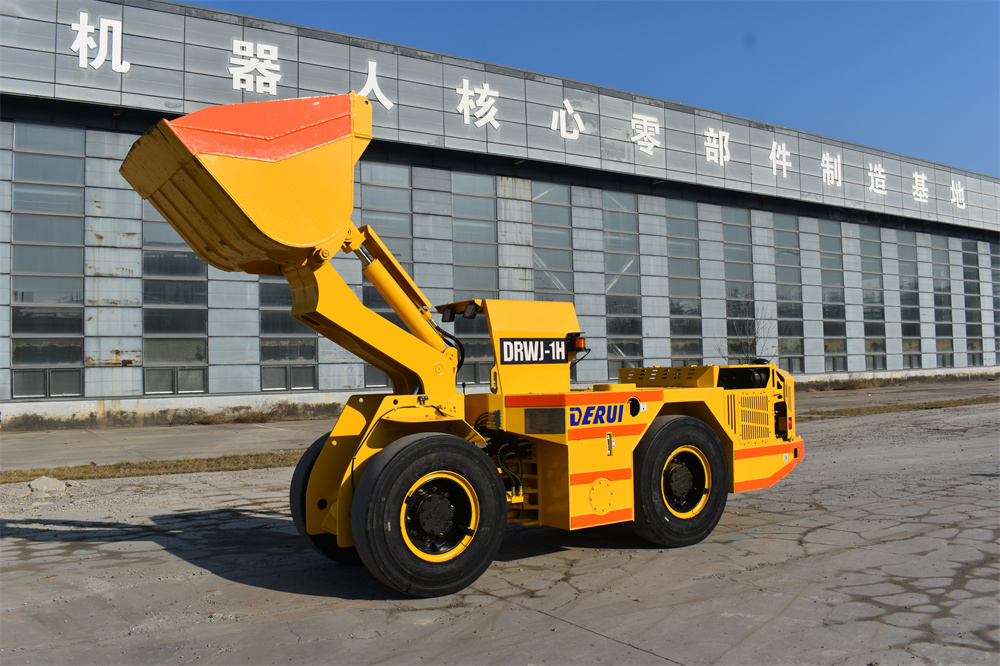

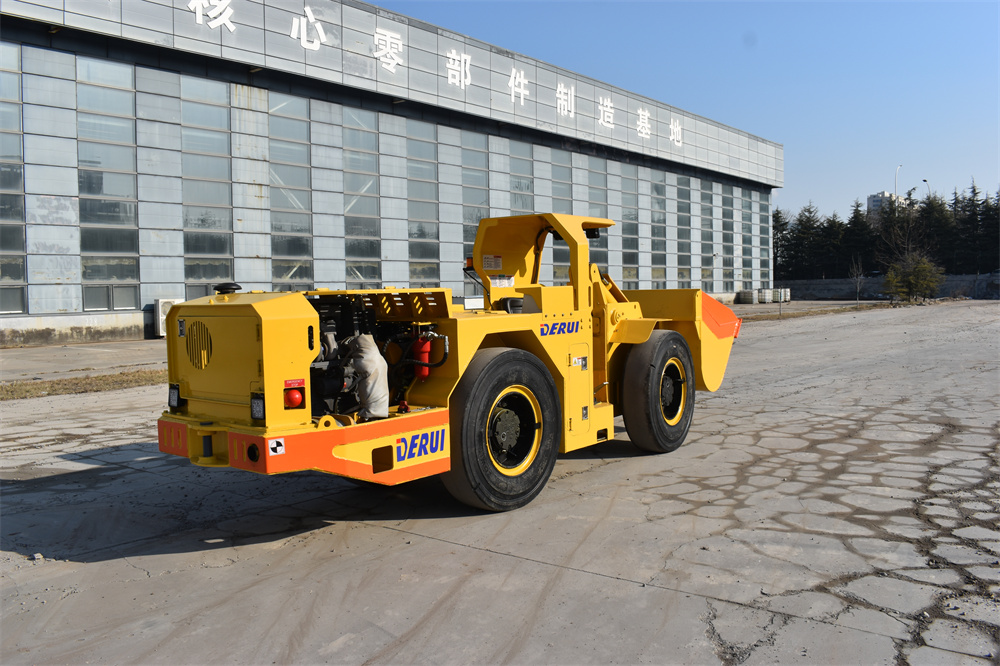

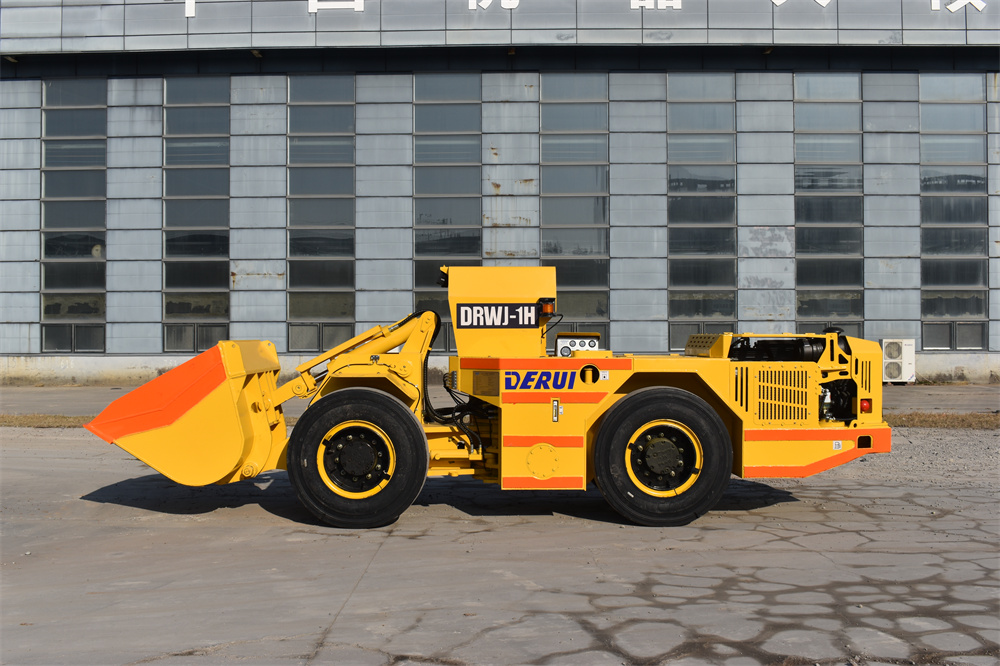

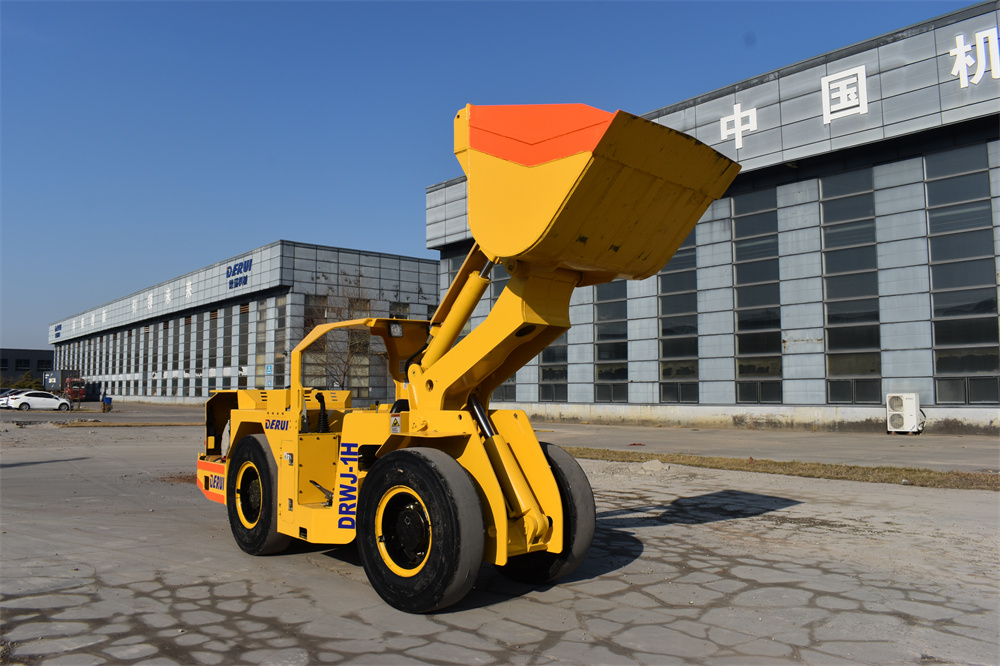

DRWJ-1H Underground Diesel LHD Loader
description1
PRODUCT SPECIFICATIONS
|
Tramming Capacity(Rated load Capacity) |
2 Ton |
|

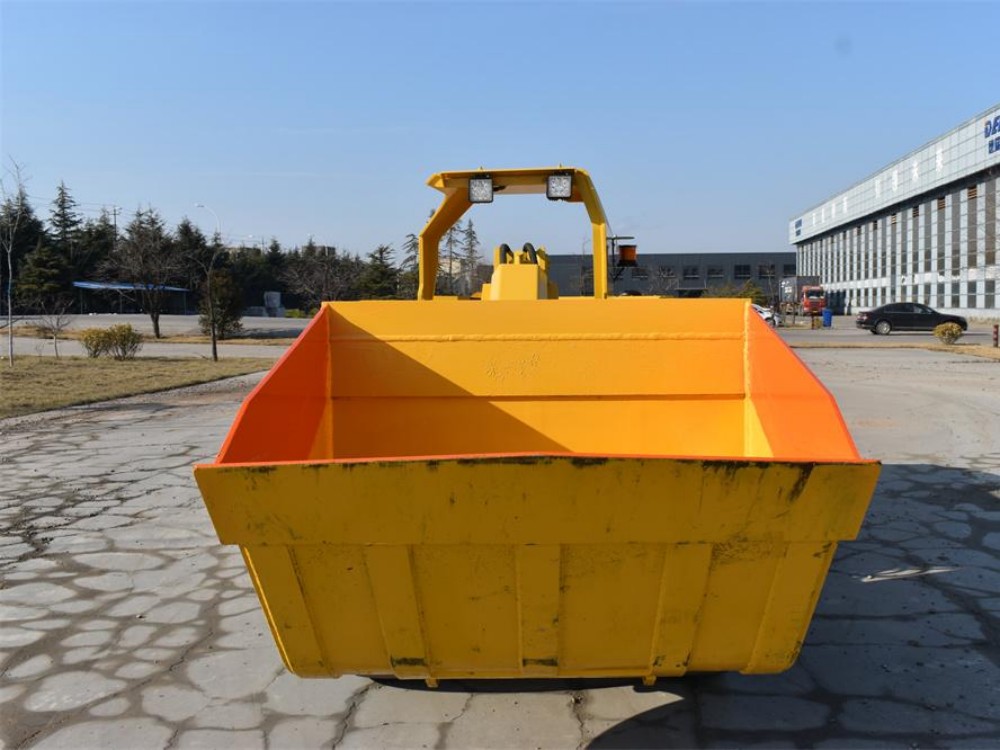

Standard Bucket Volume |
1m³ |
|
Approximate Weight |
7,250 KG |
|
Dimension(LxWxH) |
6200×1380×2000 mm |
|
Engine Power |
58-66 KW |
Base Model Configuration

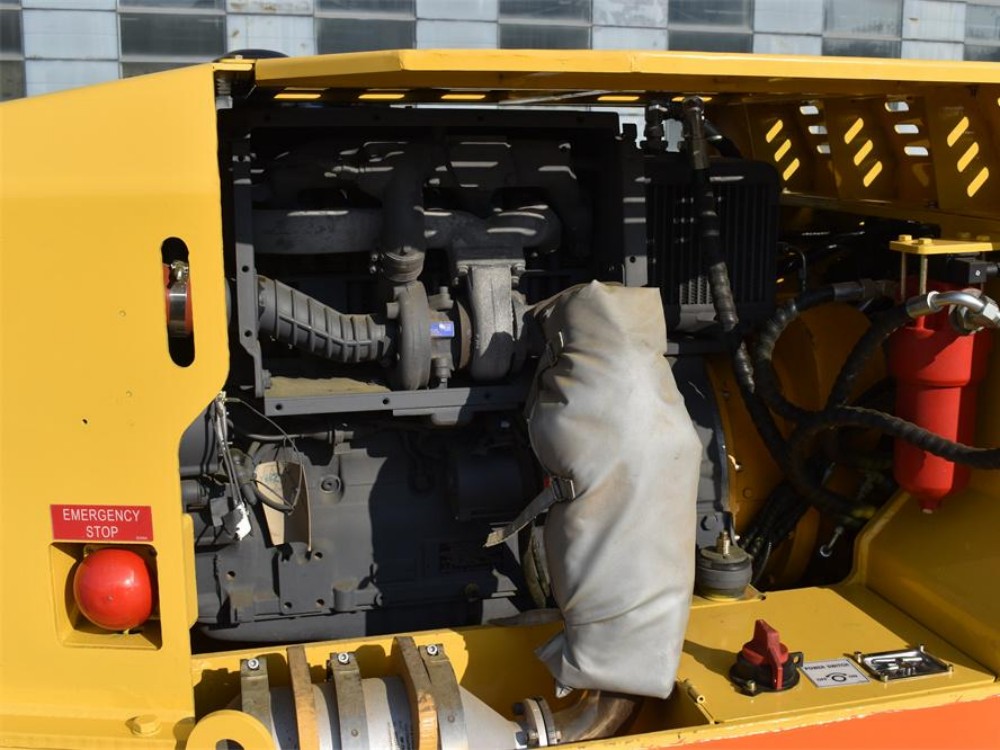

The DRWJ-1H is powered by a powerful Deutz BF4L914 engine. It is optimally matched with a Volth torque converter and a powershift transmission, enabling the engine to operate at maximum efficiency. The drive axle is a rigid planetary, closed-center wet-brake axle equipped with a Derui mechanical limited-slip differential. Utilizing a spring-applied, hydraulically-released brake system, it delivers enhanced reliability and safety.
Technical Parameters
-
Main Technical Parameters of the Complete Machine
Main Technical Parameters of the Complete Machine
No.
Parameter Description
Value
1
Bucket Capacity (m³)
1
2
Rated Payload (kg)
2,0000
3
Operating Weight, Empty (kg)
7,250
4
Max. Digging Force (kN)
≥48
5
Max. Dump Height (mm)
≥58
6
Transport Dimensions (L×W×H) (mm)
6200×1380×2000
7
Min. Ground Clearance (mm)
240
8
Max. Dump Clearance Height (mm)
3, 100
9
Max. Dump Height (mm)
1, 180
10
Min. Dump Reach (mm)
860
11
Steering Angle ( 。)
38
12
Dump Angle ( 。)
44
13
Departure Angle ( 。)
≥17
14
Frame Oscillation Angle ( 。)
±6~±8
15
Max. Gradability (Loaded) ( 。)
≥14
16
Min. Turning Radius (Outside) (mm)
4,520
17
Min. Turning Radius (Inside) (mm)
2,580
18
Travel Speed(km/h)
1 gear
7.1
2 gear
19.1
-
