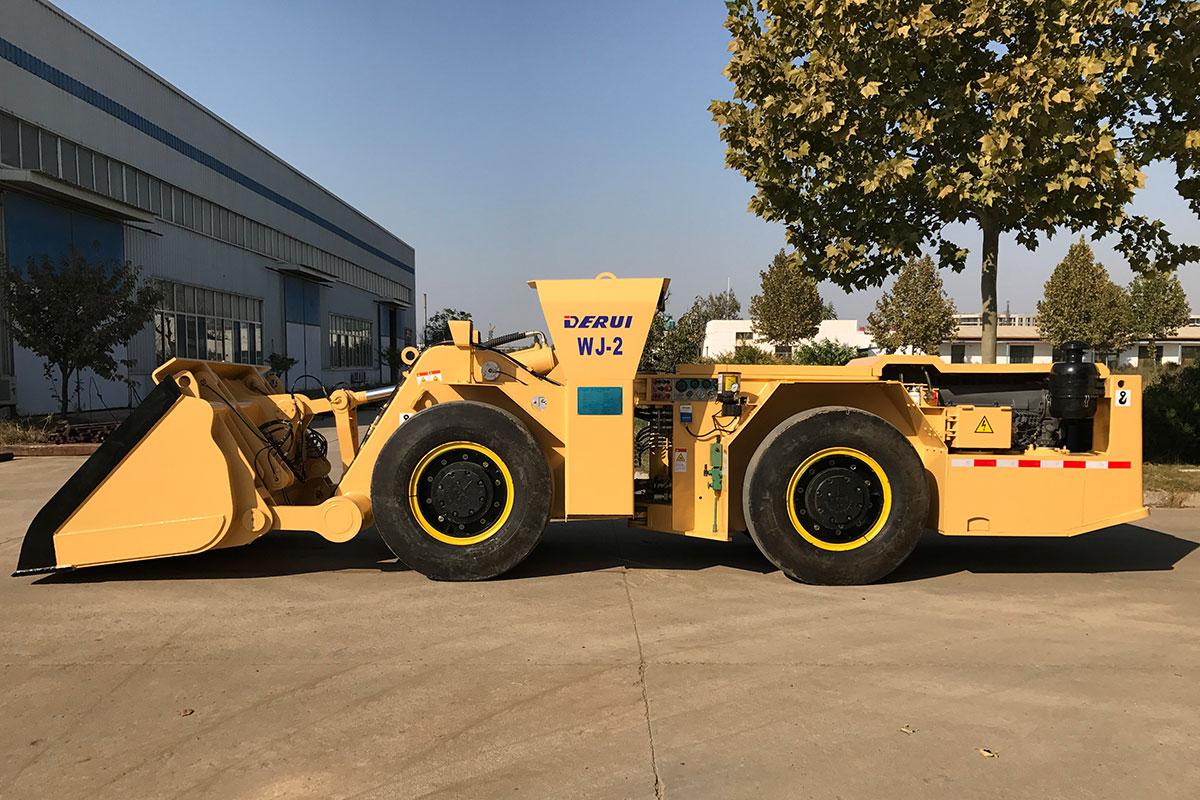

DRWJ-2 Underground Diesel LHD Loader

The ideal solution for small to medium-sized mining sites.
The DRWJ 2 Underground Diesel LHD Loader is a diesel-powered load-haul-dump machine with a payload capacity of under 4 tons, making it especially suitable for small-scale underground mining operations. Its compact design addresses the spatial constraints of narrow mine tunnels. Equipped with Sauer Danfoss' latest 90Series variable displacement pumps and hydraulic motors, along with a Sauer hydraulic system configuration, the loader ensures extended service life for the entire vehicle and axles, while significantly improving ore-handling efficiency.

product details

description1

PRODUCT SPECIFICATIONS

Tramming Capacity(Rated load Capacity)	2 Ton
Standard Bucket Volume	2.0m³
Approximate Weight	12,500 KG
Dimension(LxWxH)	7,4681,8102,070 mm
Engine Power	115 KW

Base Model Configuration

Built for reliability, this unit features industry-leading Danfoss hydraulics and a standard centralized lubrication system. Its rugged, reinforced frame is engineered to withstand extreme impacts, while pilot-operated controls and full hydraulic steering provide the lightweight, agile maneuverability operators need for peak efficiency.

Tailored Product Configurations

Fiveengine options are available for configuration.
Optional configurations include Automatic Fire Suppression System, video remote control, Harmful Gas Monitoring , Warning Light / Back-up Buzzer and Engine Stop Switch.

Technical Parameters

Main Technical Parameters of the Complete Machine

Engine

Brand/Model

DEUTZ

F6L914

DEUTZ

BF4L914

DEUTZ

BF4M1013

Cummins F4.5

Rated Power

84kW

112kW

119kW

125kW

Standard

Wind cooling

Water cooling

Hydraulic System

Transmission

Torque Converter

DANA C270

√

Gearbox / Transmission

DANA R32000

√

Drive Axle

Derui

√

Tyre / Tire

12.00-24

√

No.	Parameter Description		Value
1	Bucket Capacity (m³)		2
2	Rated Payload (kg)		4,000
3	Operating Weight, Empty (kg)		14,500
4	Max. Digging Force (kN)		≥80
5	Max. Dump Height (mm)		≥112
6	Transport Dimensions (L×W×H) (mm)		7468× 1810 ×2070
7	Min. Ground Clearance (mm)		267
8	Max. Dump Height (mm)		1,729
9	Min. Dump Reach (mm)		947
10	Steering Angle (°)		38
11	Dump Angle (° )		37
12	Departure Angle (°)		≥15
13	Frame Oscillation Angle (°)		±6~±8
14	Max. Gradability (Loaded) (° )		≥12
15	Min. Turning Radius (Outside) (mm)		5,224
16	Min. Turning Radius (Inside) (mm)		2,766
17	Travel Speed(km/h)	Forward	5±0.5
		Reverse	5±0.5

Working Pump(Gear Pump)	Permco	√
Steering Pump(Gear Pump)	Permco	√
Multi - way Control Valve	Youli	√
Steering Control Valve	Walvoil	√
Make - up Valve / Replenishing Valve	NAVNIX	√
Pedal - operated Valve	NAVNIX	√

Torque Converter	DANA C270	√
Gearbox / Transmission	DANA R32000	√
Drive Axle	Derui	√
Tyre / Tire	12.00-24	√
