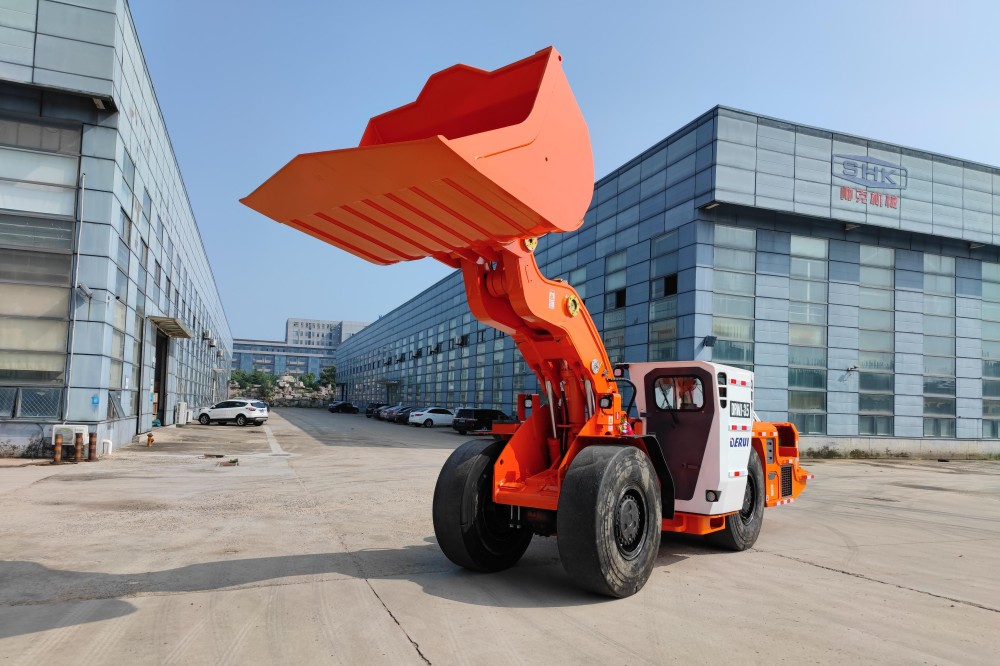

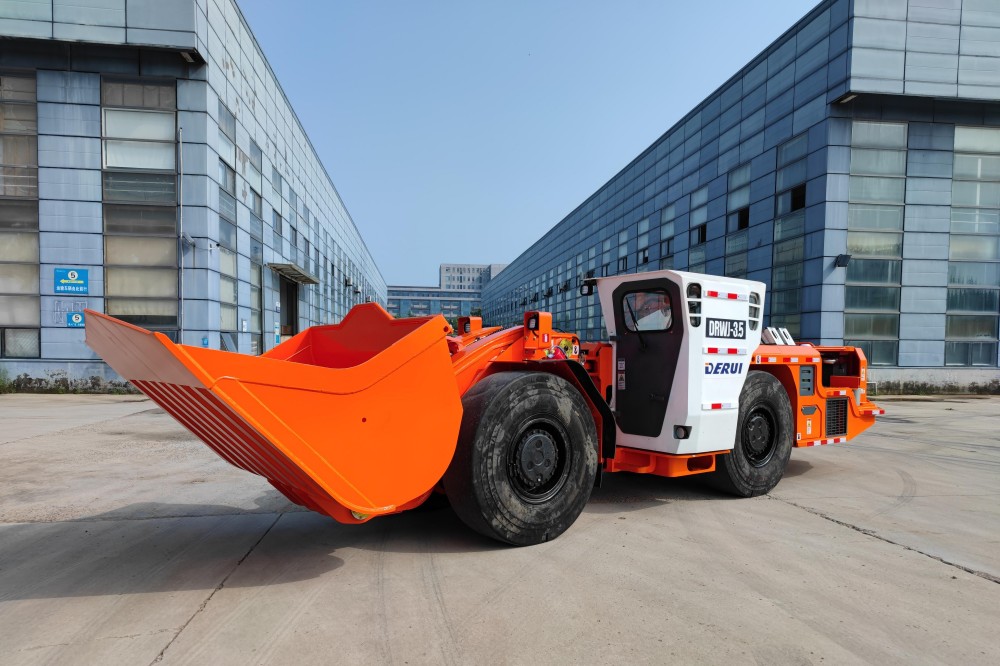

DRWJ-3 Underground Diesel LHD Loader
description1
PRODUCT SPECIFICATIONS
|
Tramming Capacity(Rated load Capacity) |
6-7 Ton |
|
Standard Bucket Volume |
3.0m³/3.5m³ |
|
Approximate Weight |
19,200 KG |
|
Dimension(LxWxH) |
9,200*2,355*2,255 mm |
|
Engine Power |
160 KW |
Base Model Configuration
Standard equipment includes a Permco hydraulic pump and a Dana Transmission.The apparatus uses a box section boom and front frame that have been FEA optimized in order to handle the severe impact forces produced during loading and hauling activities.
The vehicle uses CAN bus control and has a modular architecture with rigorous program logic for real-time display of operational parameters.
It is equipped with an advanced monitoring and protection system, which includes oil level protection and engine protection.
Tailored Product Configurations
- Optional configurations include Automatic Fire Suppression System, video remote control, Harmful Gas Monitoring , 360° Surround View, Weighing System Central manual lubrication, Boom Shock Absorption System, Hydraulic Oil Electric Heating System and Coolant Auxiliary Heating System.
Technical Parameters
-
Main Technical Parameters of the Complete Machine
No.
Parameter Description
Value
1
Bucket Capacity (m³)
3.5
2
Rated Payload (kg)
7,000
3
Operating Weight, Empty (kg)
19,300
4
Max. Digging Force (kN)
≥135
5
Max. Dump Height (mm)
≥160
6
Transport Dimensions (L×W×H) (mm)
9157 ×2300×2387
7
Min. Ground Clearance (mm)
300
8
Max. Dump Height (mm)
1,799
9
Min. Dump Reach (mm)
170
10
Steering Angle ( ° )
42.5
11
Dump Angle ( ° )
38
12
Departure Angle ( ° )
≥14
13
Frame Oscillation Angle (°)
±7~±10
14
Max. Gradability (Loaded) (° )
≥14
15
Min. Turning Radius (Outside) (mm)
5,850
16
Min. Turning Radius (Inside) (mm)
2,856
17
Travel Speed(km/h)
1gear
4
2gear
8.1
3gear
13.7
4gear
22.5
-
Engine
-
Hydraulic System
-
Transmission
