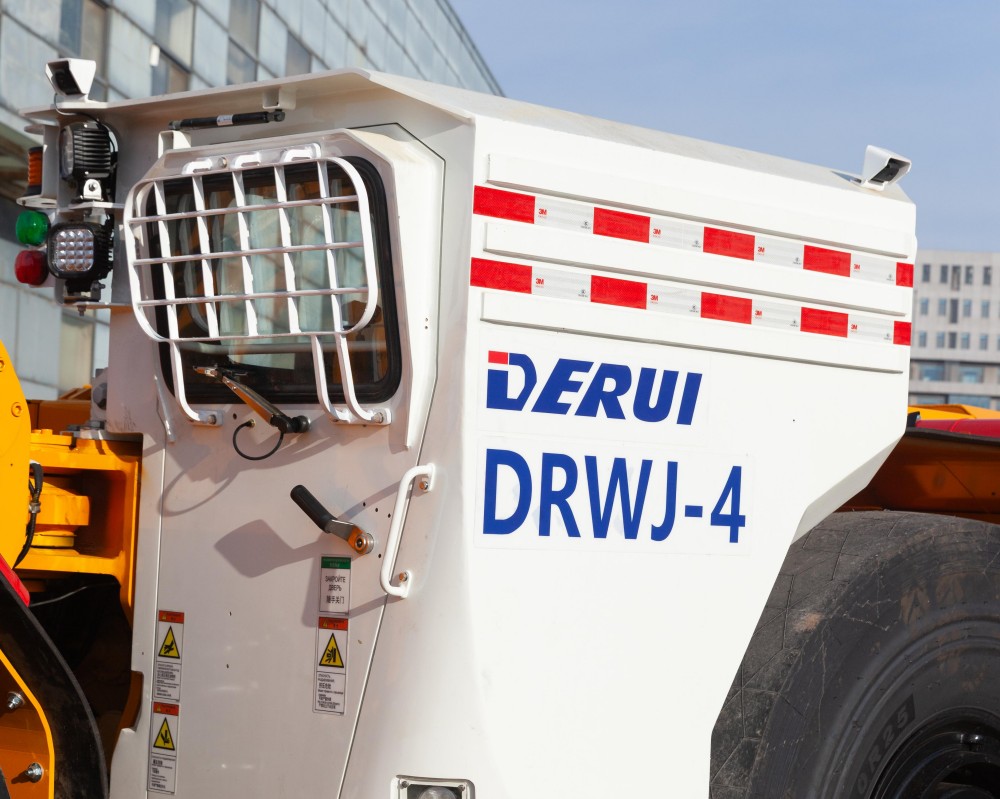

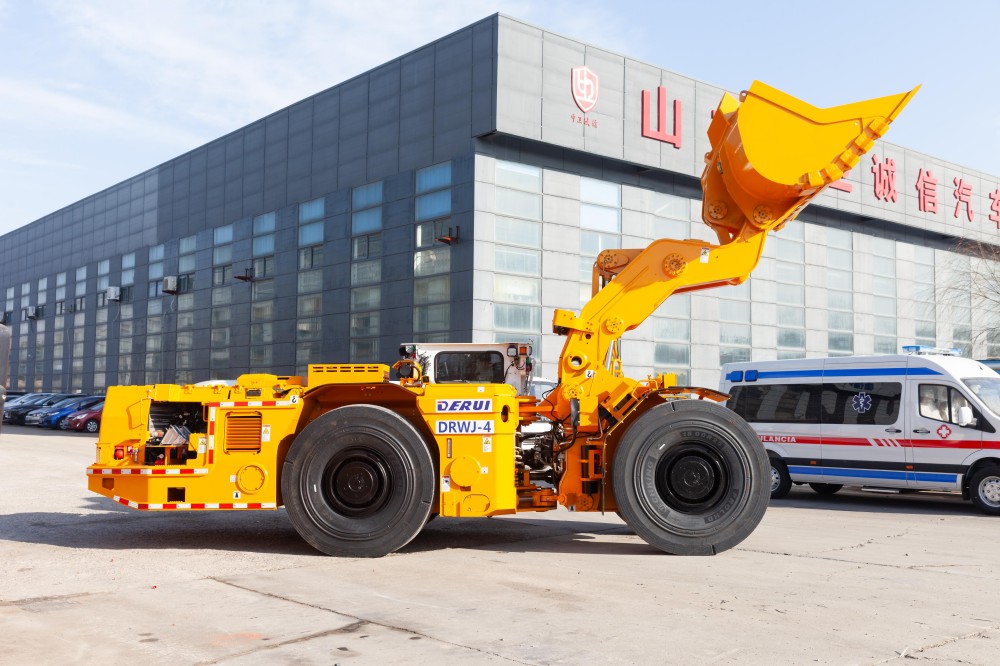

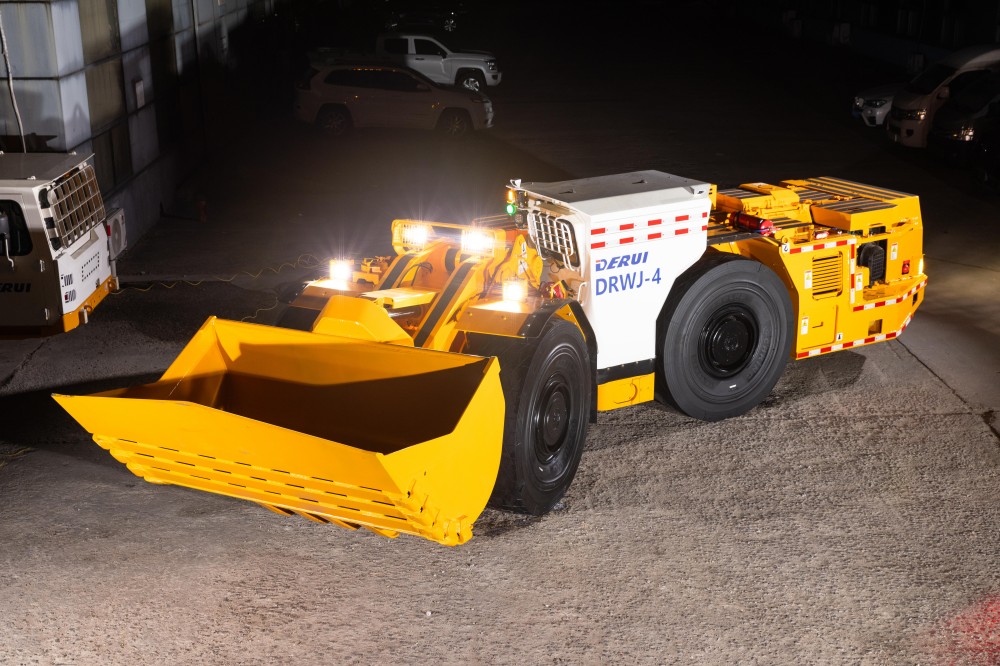

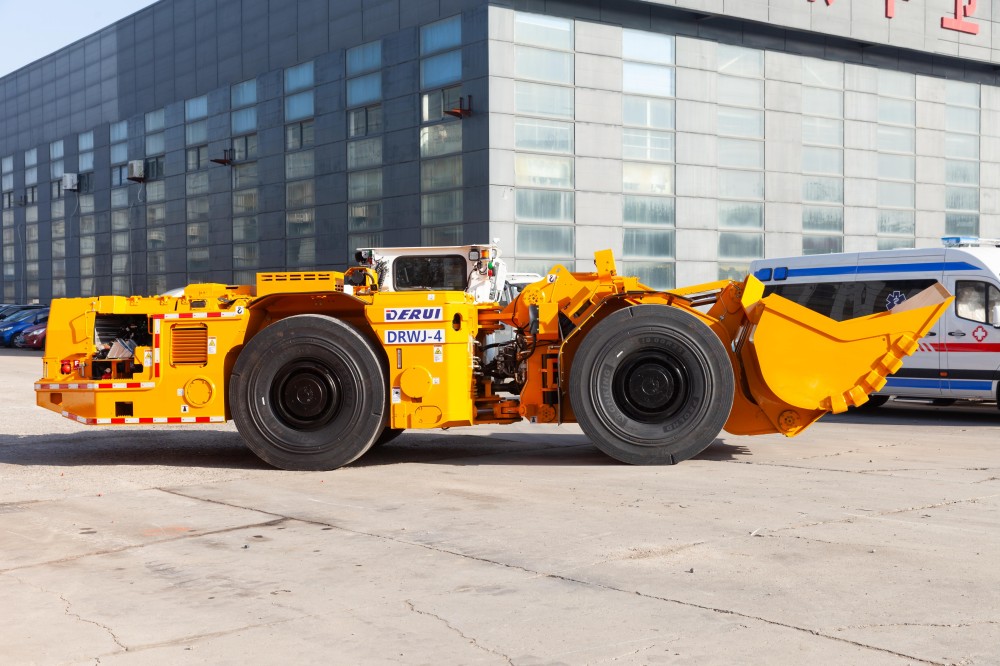

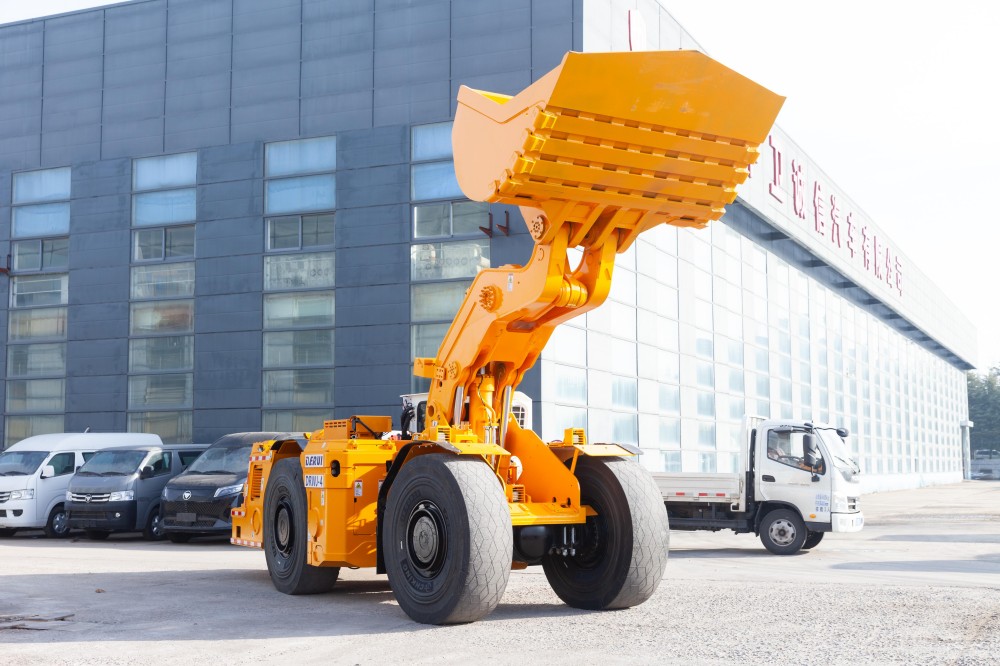

DRWJ-4 Underground Diesel LHD Loader
description1
PRODUCT SPECIFICATIONS
|
Tramming Capacity(Rated load Capacity) |
8-10 Ton |
|
Standard Bucket Volume |
4.0m³/4.5m³ |
|
Approximate Weight |
27,500 KG |
|
Dimension(LxWxH) |
9,642*2,613*2,383 mm |
|
Engine Power |
235 KW |
Base Model Configuration

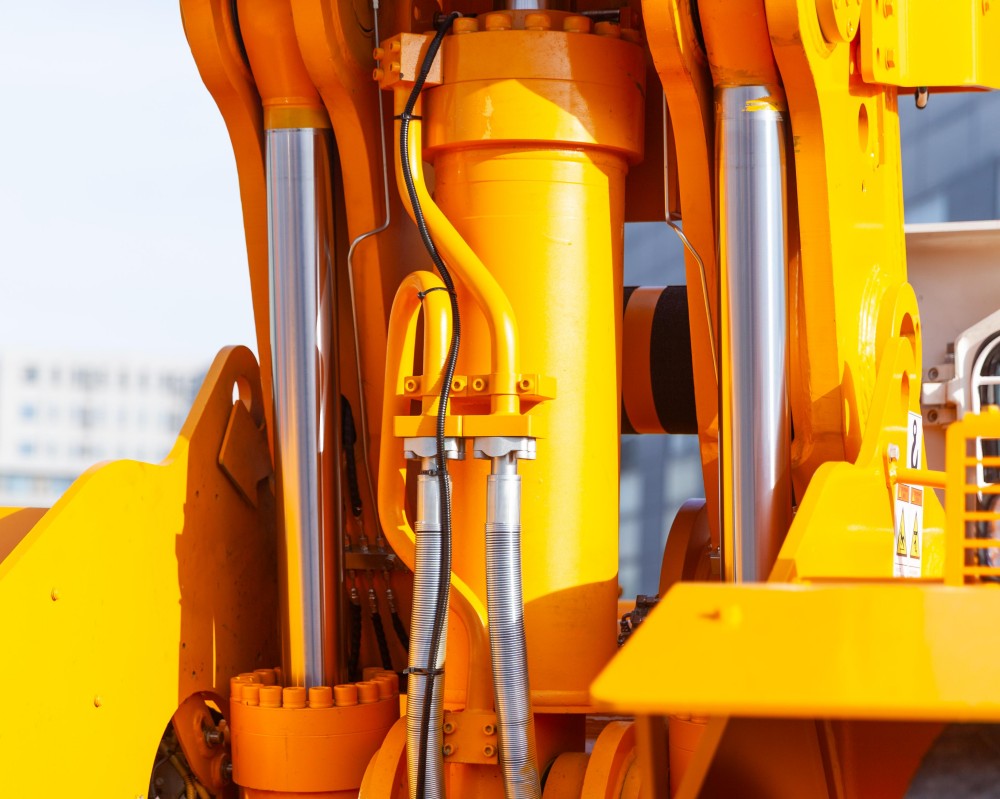

Premium Powertrain & Hydraulics: Features a high-performance Danatrans transmission and Rexroth hydraulic pumps as standard equipment.
Rugged Construction: Built with an FEA-optimized front frame and box-section boom, specifically engineered to absorb the extreme impact forces of heavy loading and hauling.

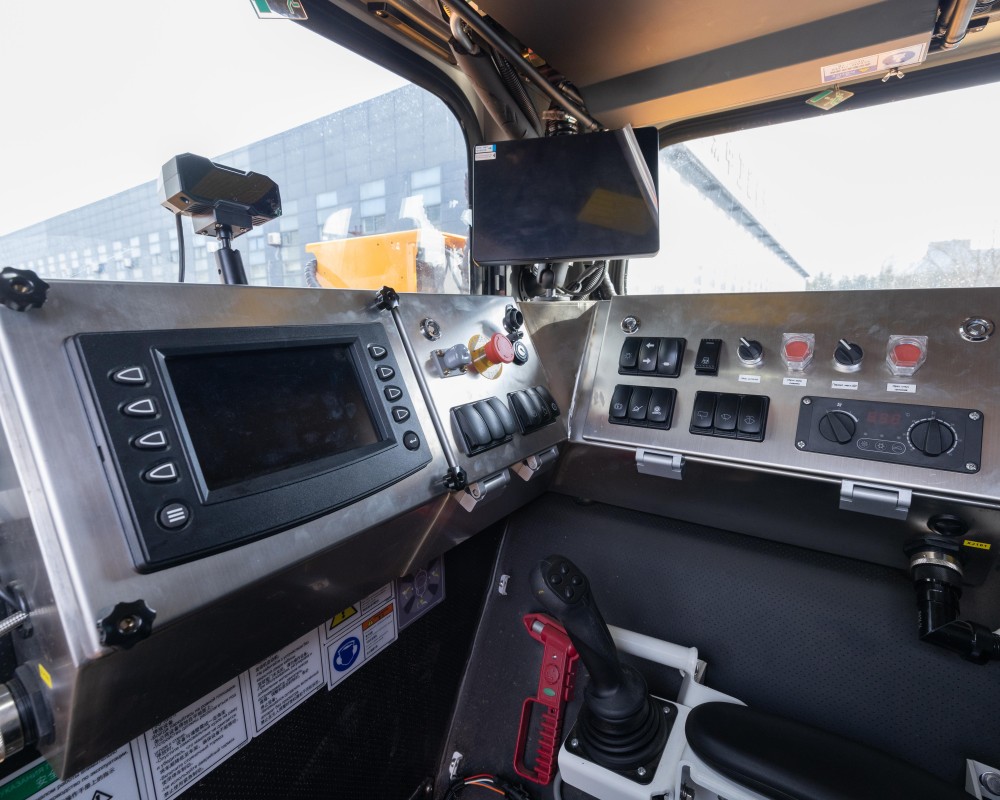

Intelligent Control System: Utilizes CAN-bus architecture and a modular design. The high-logic programming provides real-time monitoring of all operational parameters via an integrated display.
Comprehensive Protection: Equipped with an intelligent monitoring suite, including dedicated protection for oil levels, the engine, and axle brakes to ensure maximum uptime.
Tailored Product Configurations

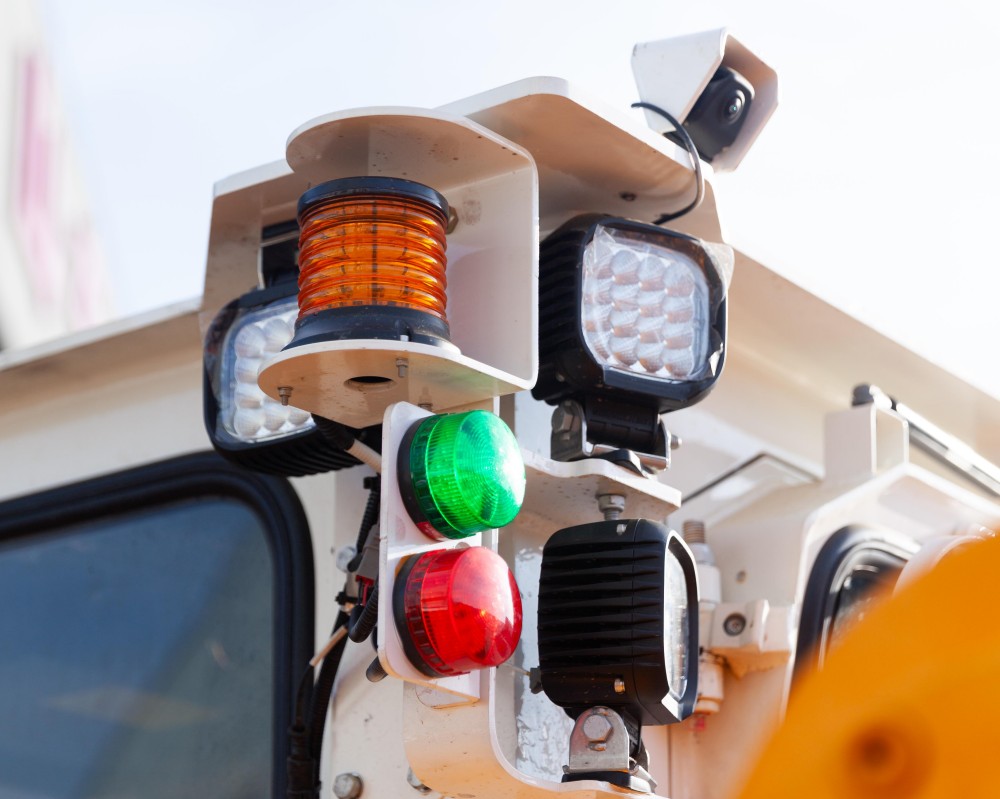

- Optional configurations include Automatic Fire Suppression System, video remote control, Harmful Gas Monitoring , 360° Surround View, Weighing System, Central manual lubrication, Boom Shock Absorption System, Hydraulic Oil Electric Heating System and Coolant Auxiliary Heating System .
Technical Parameters
-
Main Technical Parameters of the Complete Machine
No.
Parameter Description
Value
1

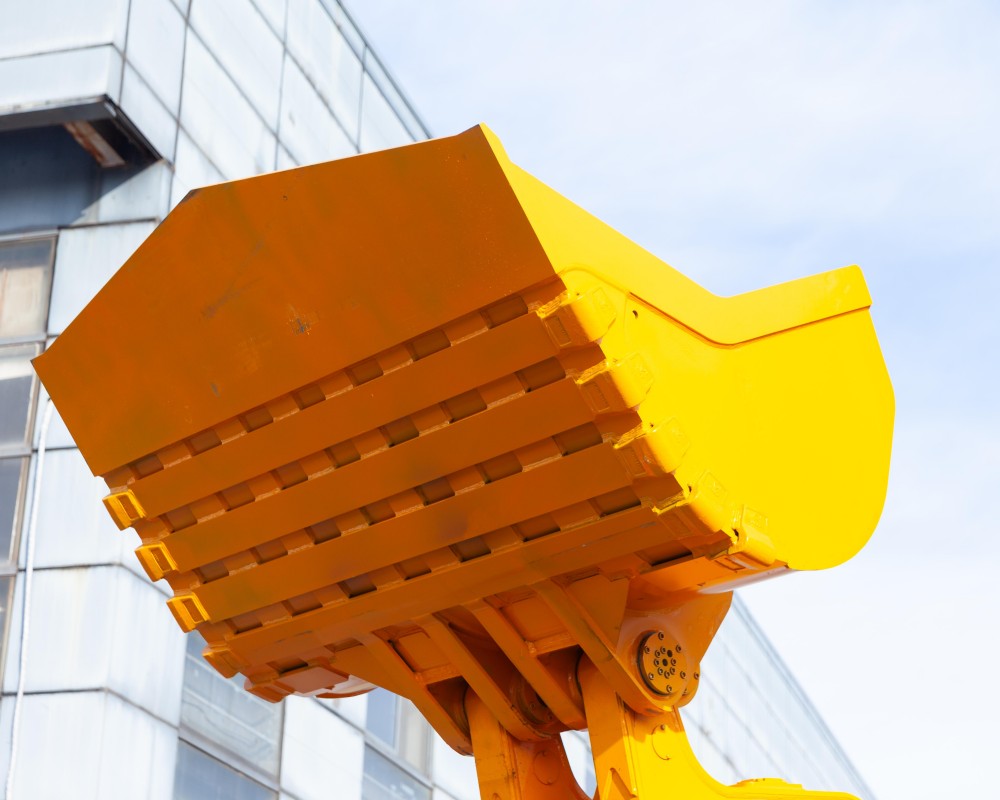

Bucket Capacity (m³)
4.5
2
Rated Payload (kg)
10,000
3
Operating Weight, Empty (kg)
29,000
4
Max. Digging Force (kN)
≥188
5
Max. Dump Height (mm)
≥220
6
Transport Dimensions (L×W×H) (mm)
9857x2550x2393
7
Min. Ground Clearance (mm)
366
8
Max. Dump Height (mm)
2,089
9
Min. Dump Reach (mm)
1,622
10
Steering Angle (°)
42.5
11
Dump Angle ( ° )
38
12
Departure Angle (° )
≥15
13
Frame Oscillation Angle (°)
±8
14
Max. Gradability (Loaded) (° )
≥14
15
Min. Turning Radius (Outside) (mm)
6,520
16
Min. Turning Radius (Inside) (mm)
3,254
17
Travel Speed(km/h)
1gear
4.6
2gear
9.6
3gear
16..1
4gear
27.2
-
Engine
-
Hydraulic System
-
Transmission
