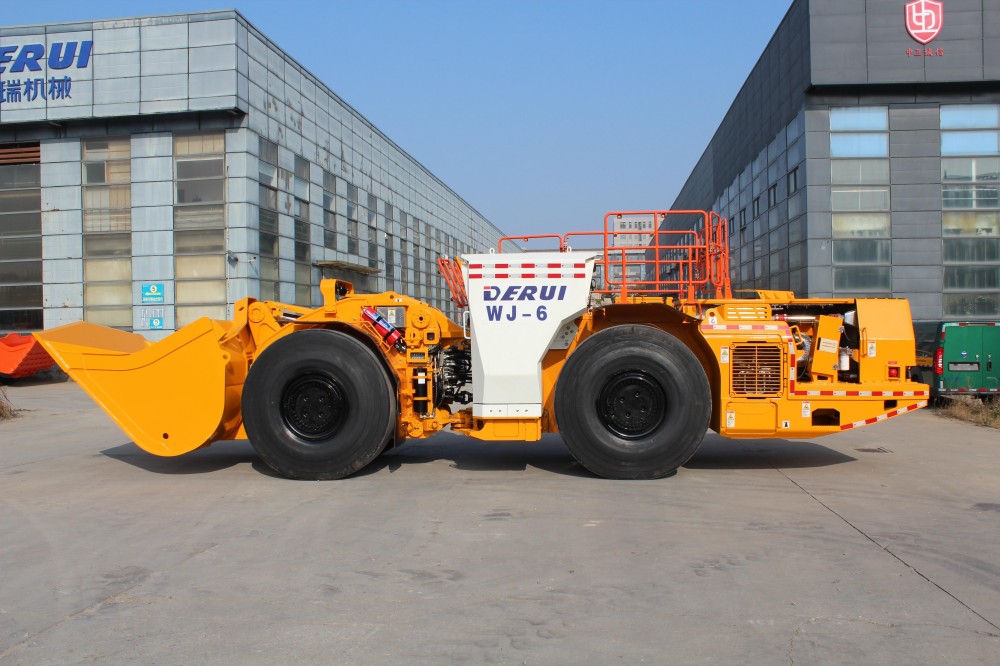

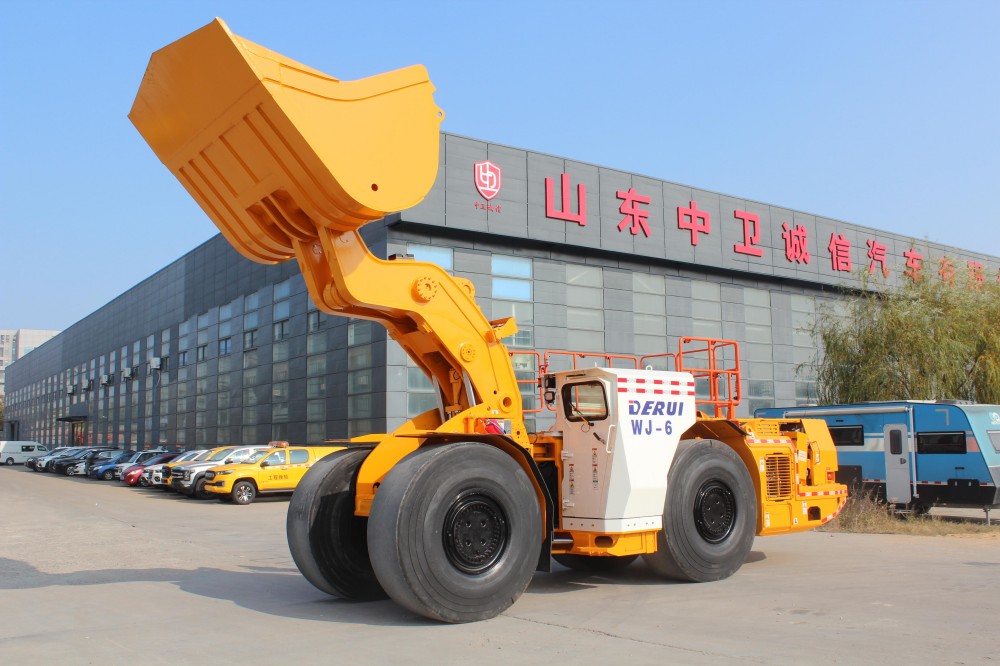

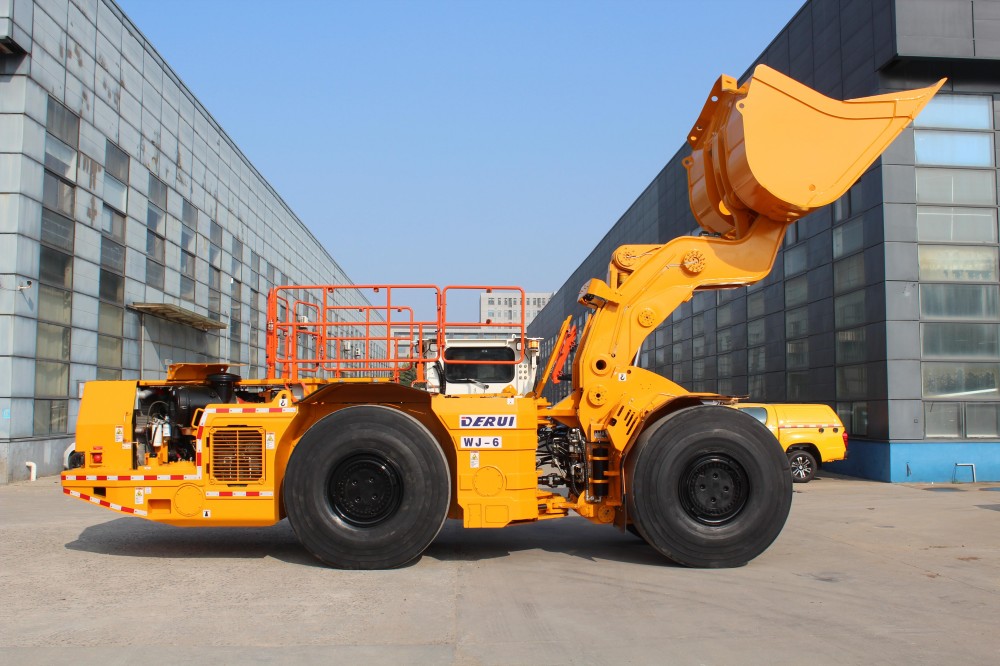

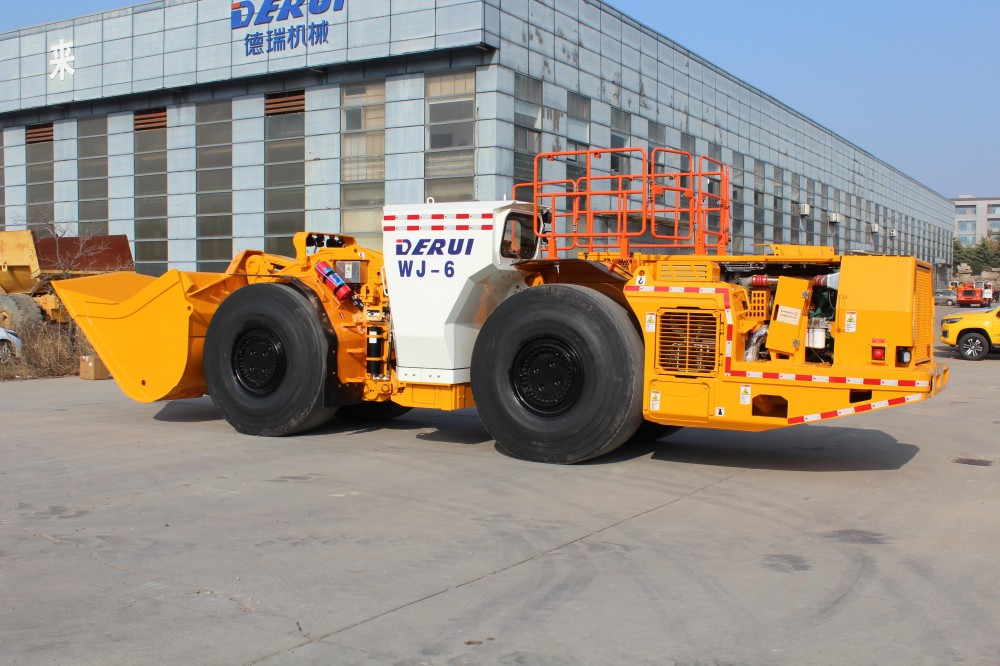

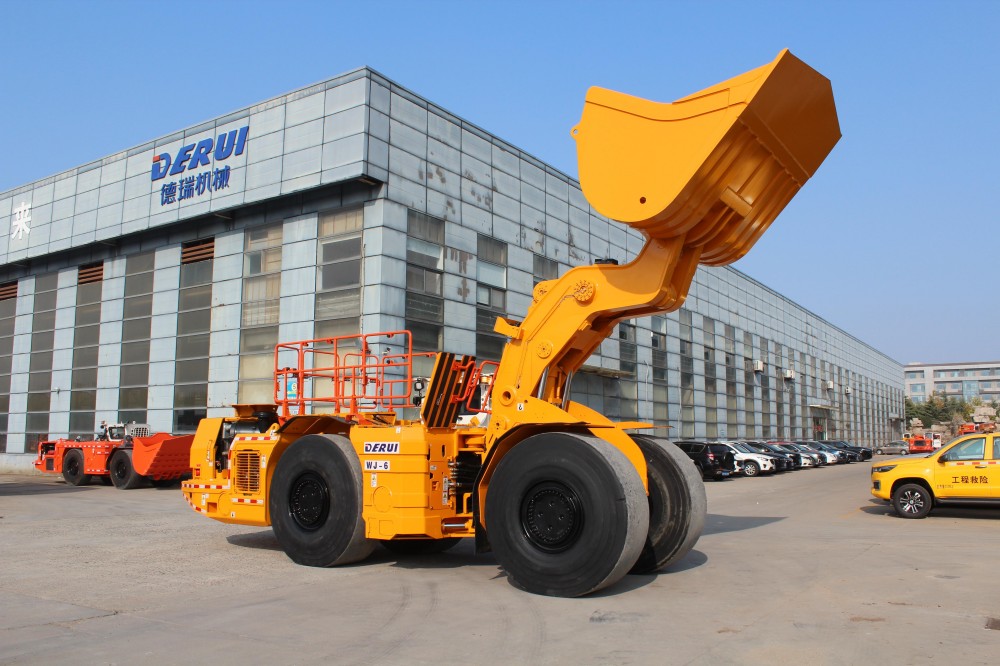

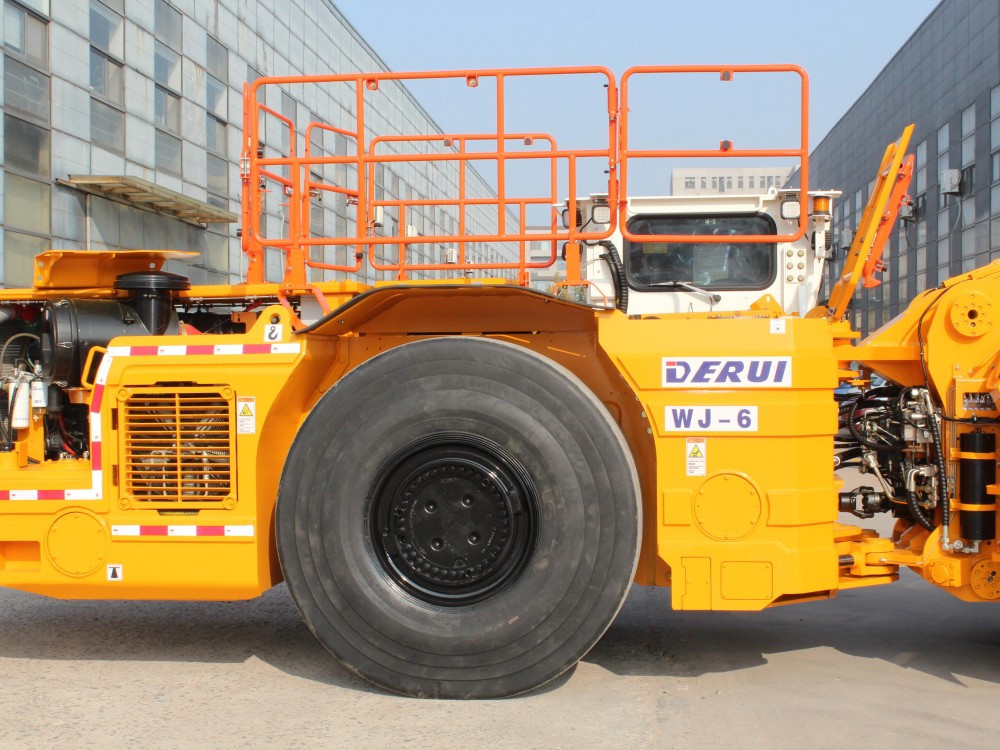

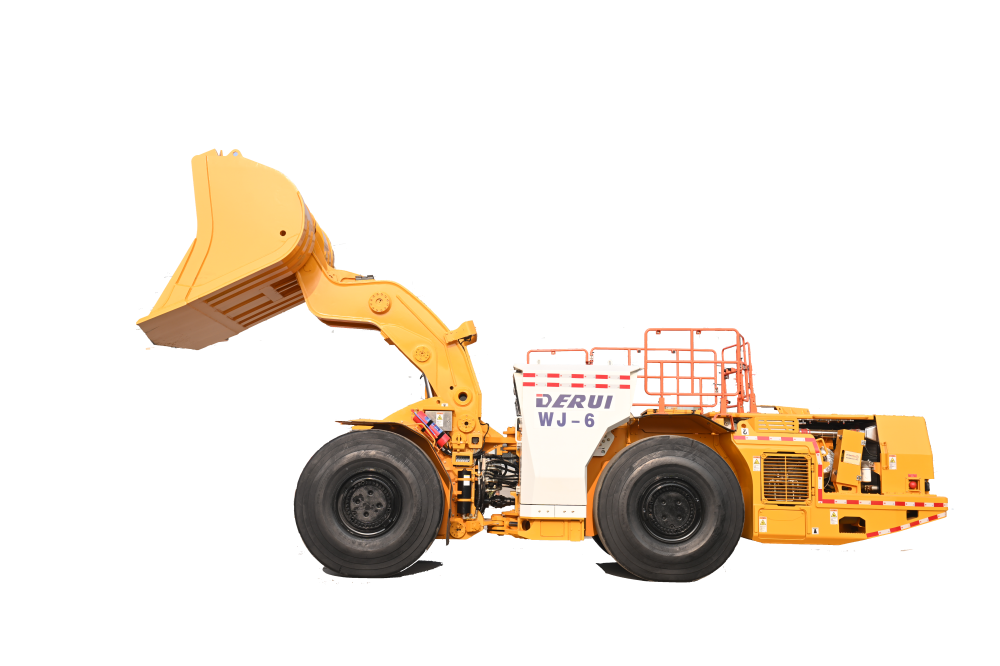

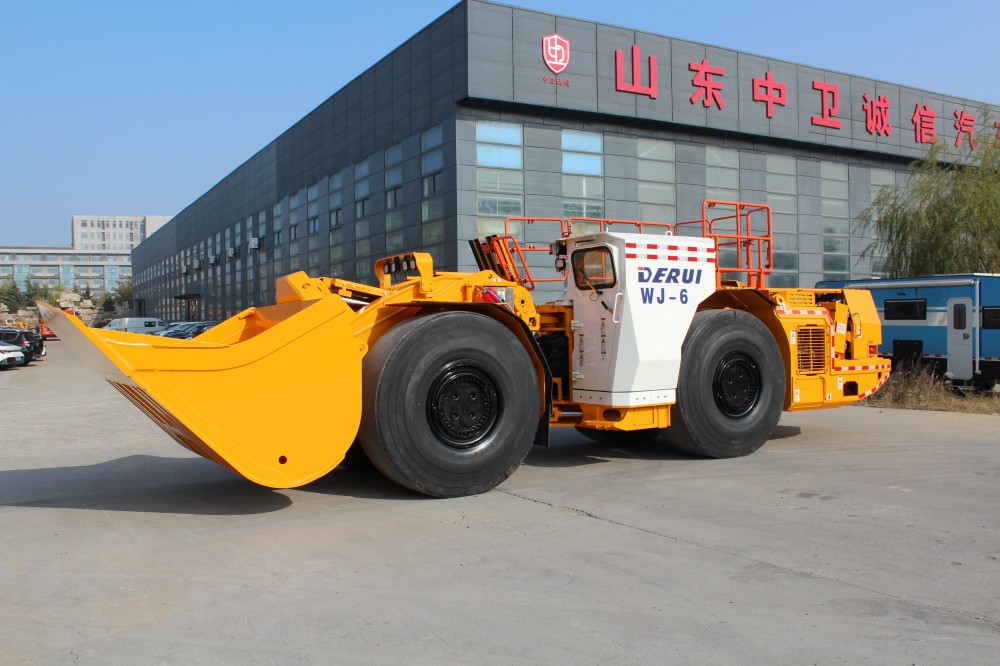

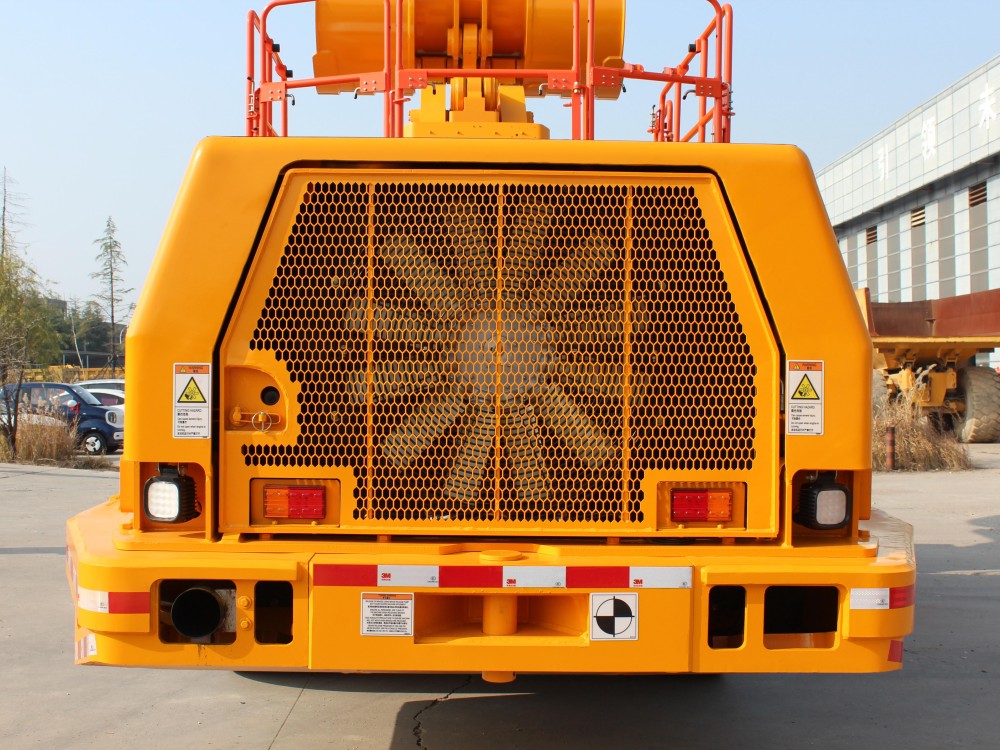

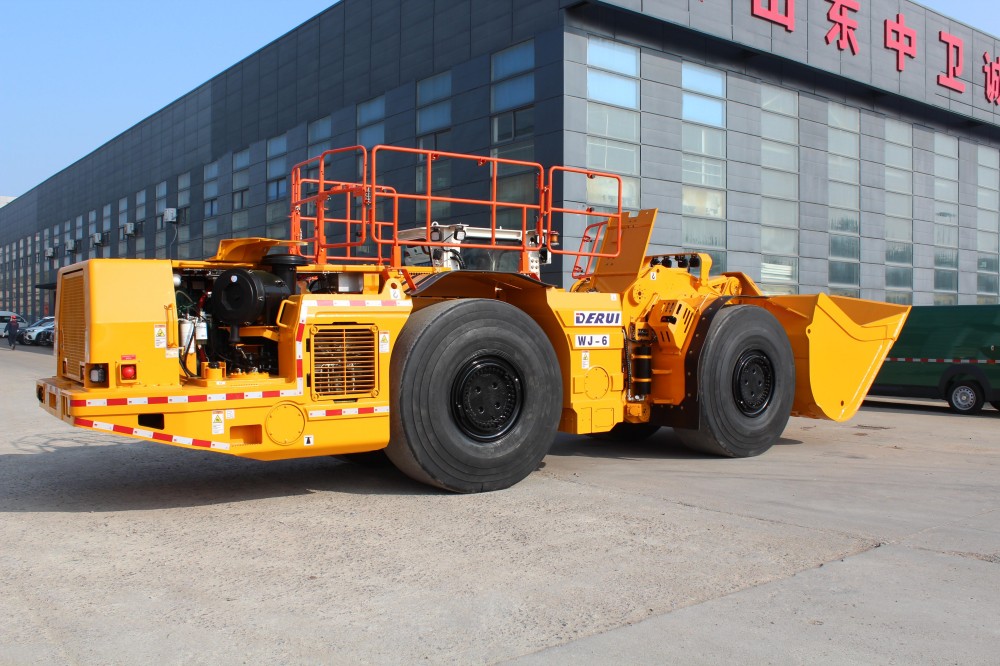

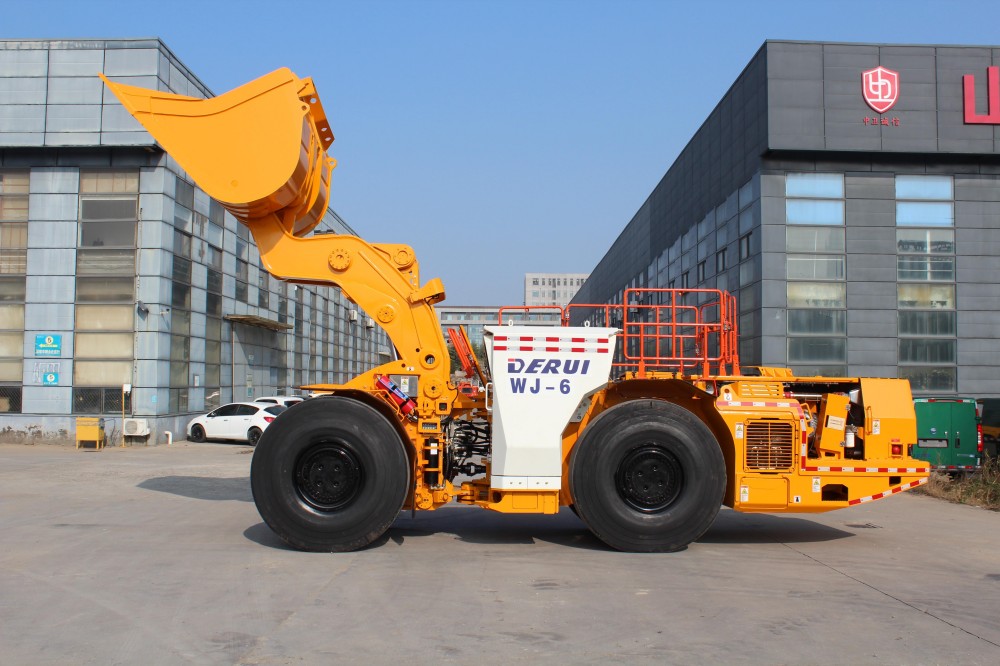

DRWJ-6 Underground Diesel LHD Loader
description1
PRODUCT SPECIFICATIONS
|
Tramming Capacity(Rated load Capacity) |
14 Ton |
|
Standard Bucket Volume |
6.0m³ |
|
Approximate Weight |
37,800 KG |
|
Dimension(LxWxH) |
10,562*2,792*2,552 mm |
|
Engine Power |
285 KW |
Base Model Configuration
- Equipped with Danatransmission and Rexroth hydraulic pump as standard.
- The equipment adopts an FEA optimized front frame and box section boom, specifically designed to withstand extreme impact forces generated during loading and hauling operations.
- The vehicle adopts CAN bus control and a modular design, featuring rigorous program logic to enable real time display of all operational parameters.

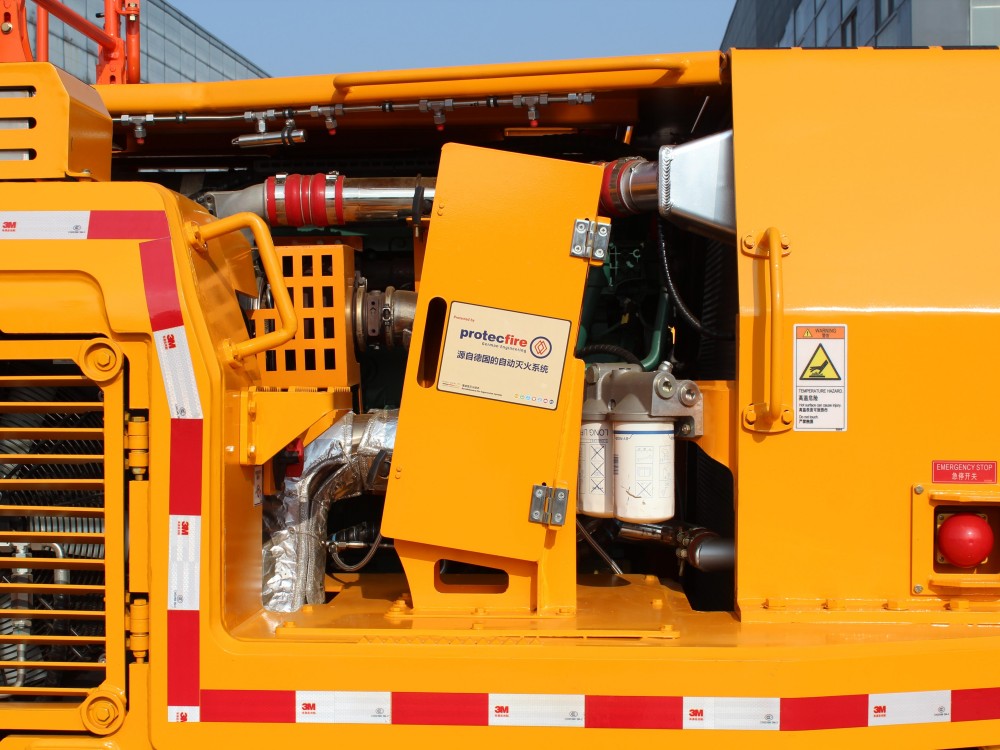

- Equipped with an intelligent monitoring and protection system, including oil level protection and an engine protection system.
Technical Parameters
-
Main Technical Parameters of the Complete Machine
No.
Parameter Description
Value
1
Bucket Capacity (m³)
6
2
Rated Payload (kg)
14,000
3
Operating Weight, Empty (kg)
40,400
4
Max. Digging Force (kN)
≥220
5
Max. Dump Height (mm)
≥320
6
Transport Dimensions (L×W×H) (mm)
10794 ×2737 ×2555
7
Min. Ground Clearance (mm)
380
8
Max. Dump Height (mm)
2,384
9
Min. Dump Reach (mm)
1,743
10
Steering Angle ( °)
42.5
11
Dump Angle ( °)
39
12
Departure Angle ( °)
≥15
13
Frame Oscillation Angle ( °)
±8~±10
14
Max. Gradability (Loaded) ( °)
≥12
15
Min. Turning Radius (Outside) (mm)
6,932
16
Min. Turning Radius (Inside) (mm)
3,283
17
Travel Speed(km/h)
1gear
4.5
2gear
7.9
3gear
13
4gear
21.5
-
Engine
-

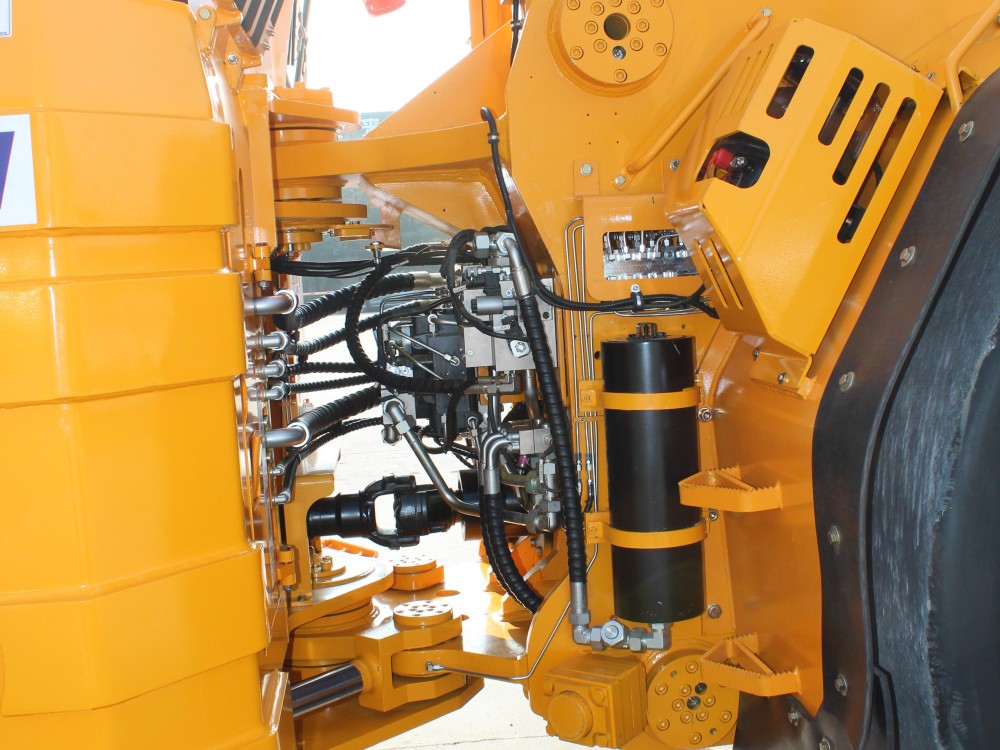

Hydraulic System
-
Transmission
