overview
The DRWJ-2G hard rock LHD loader is a robust 4.0 metric tonne LHD intended for narrow workings in hard rock mining and in tunneling. It is a upgrade model of DRWJ-2, with brand new design. With ROPS/FOPS-certified operator canopy and low emission engine to ensure sustainable mining. Ground-level daily maintenance enables safer servicing. ST2G is designed with easy access to all daily service points,To maximize uptime by making maintenance quick and efficient.
MAIN FEATURES& MAIN TECHNIAL SPEC

Various Engine options: DEUTZ BF6L914/ F6L914/ BF4M1013EC EU Stage II

D914L06 Stage, TCD4.1EDG III A

Drive Train: DANA 32000 series gearbox + C270 series torque converter

Axle: DANA 14D or MERITOR (China factory made) or KESSEL D71

Brake: Multi disk spring brake (SAHR)

Customized buckets optimized for hard rock available

Ejector bucket: available and proved in many countries

Top brands hydraulic components: PARKER, REXROTH

Central lubrication system: (optional)

Remote control system: (optional)

Exhaust system: Various top brands of catalytic purifier / muffler

MAX POWER

DRWJ-2G                             the DEUTZ BF6L914

MAX DRIVE TRAIN

DRWJ-2G                             The DANA 32000

MAX SPEED

DRWJ-2G                             The DANA 14D

DRWJ-2G
DRWJ-2G
DRWJ-2G

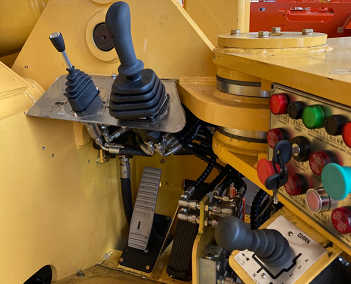

+ Various customized control system solutions: Mechanical type or Hydraulic type or Electronic control:

DRWJ-2G DRWJ-2G DRWJ-2G

DRWJ-2G

Three point mounting and anti-skid protection provides safe access for operators and service personnel.

DRWJ-2G

Long life roller bearing center articulation joint provides durable in use.


DRWJ-2G

The DRWJ-2G can also be installed with Ausal (or PROTECFIRE) fire suppression system.

DRWJ-2G

Side seated operator position for efficient bi-directional operation ensures wide visibility. Ergonomic and luxury world leading brand operator seat with seat belt provides comfort during a full work shift.


DRWJ-2G

Conventional and proven components are well protected within the frame, thanks to strong frame structure and long life roller bearing center articulation joint.

DRWJ-2G

DRWJ-2G is equipped with SAHR (spring applied hydraulic released) break system which is the safest break system in the mining industry.
